Door Control Module Schematics




Door Control Module Schematics

Power, Ground and Serial Data

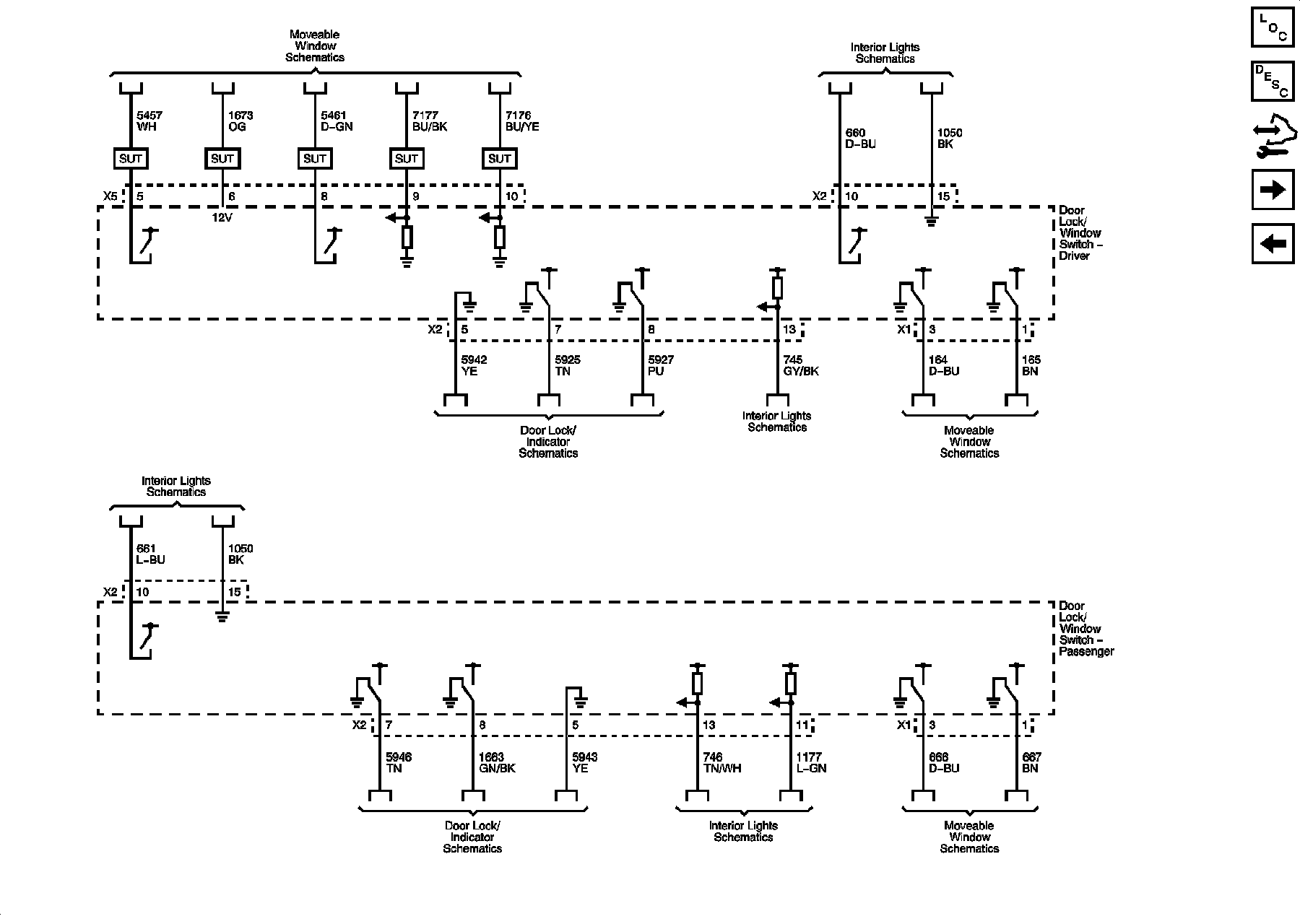

Exterior Lights, Interior Lights, Door Lock and Power Window References

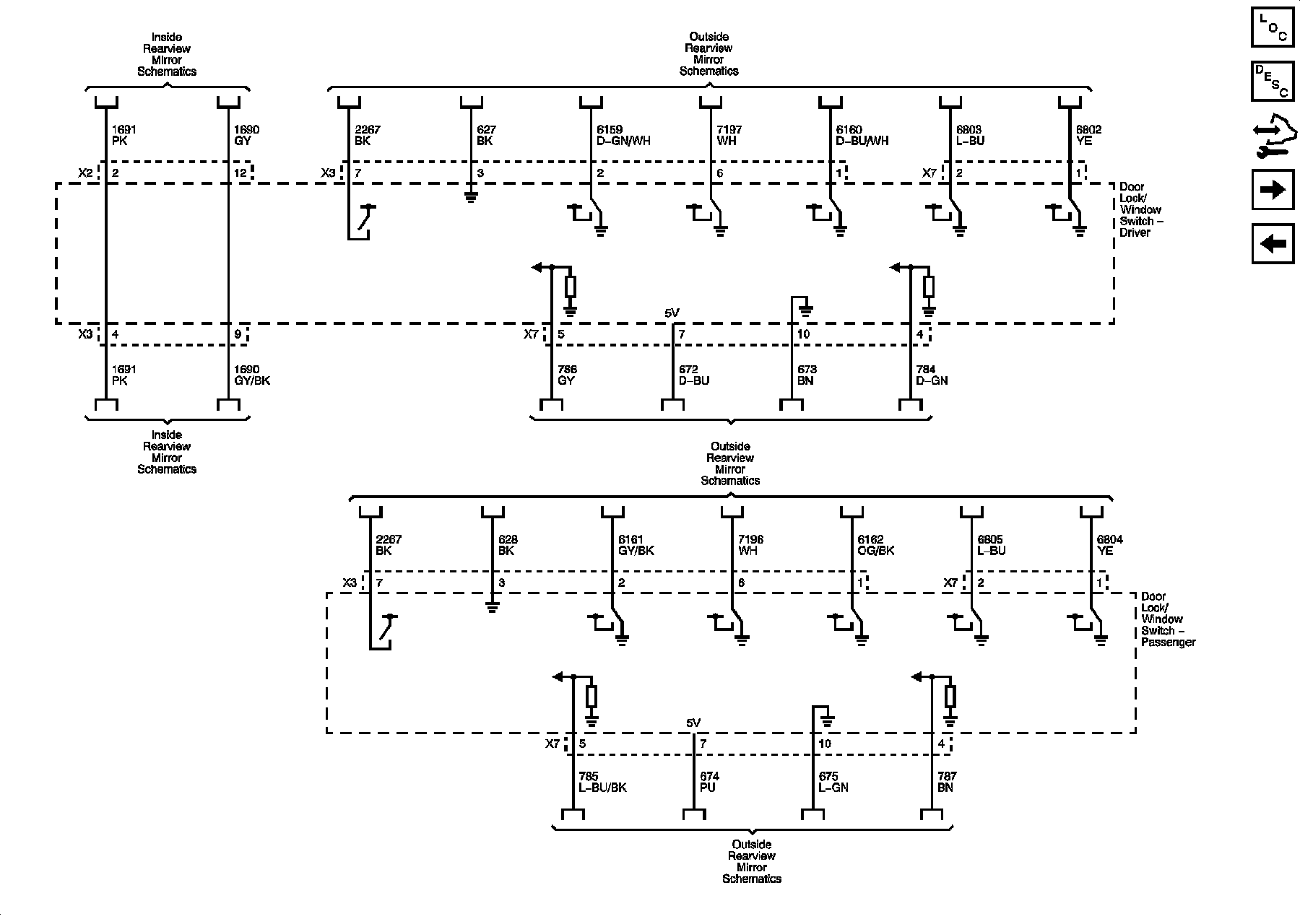

Inside and Outside Rearview Mirror References





Seat References
