91. Oil Level Indicator and Tube Installation

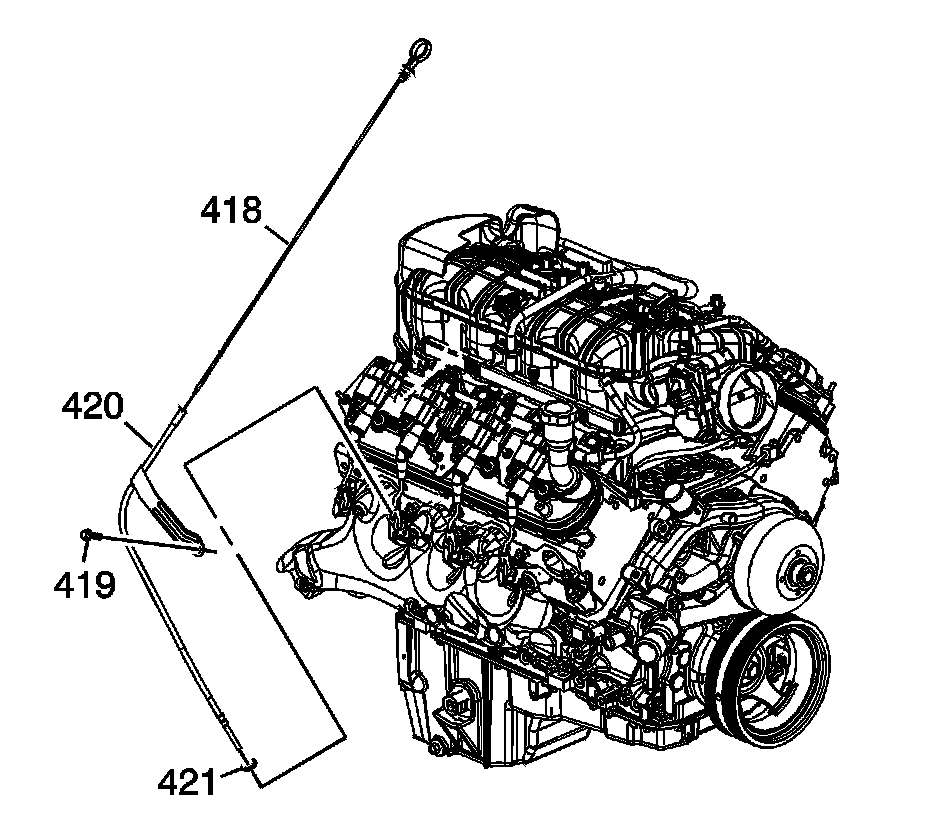

Oil Level Indicator and Tube Installation




1. Inspect the O-ring seal (421) for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be used again.
2. Lubricate the O-ring seal with clean engine oil.
3. Install the O-ring seal onto the oil level indicator tube (420).
4. Install the oil level indicator tube into the engine block and rotate into proper position.

Caution: Refer to Fastener Caution (Fastener Caution).

5. Install the tube bolt (419) and tighten to 25 Nm (18 lb ft).
6. Install the oil level indicator (418) into the tube.
