Electrical Diagrams




HVAC Schematics

Module Power, Ground, Serial Data and Blower Controls

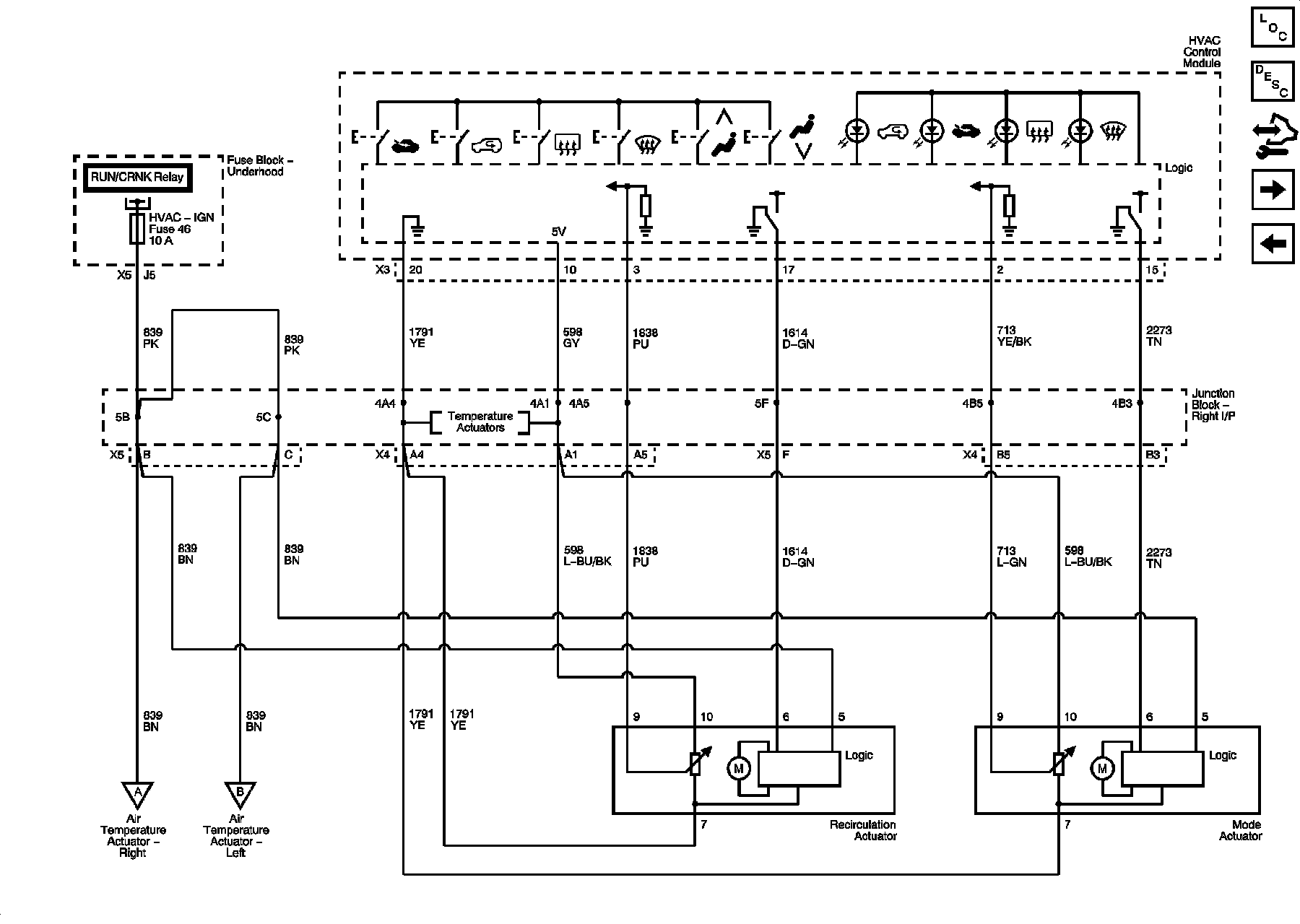

Mode Controls

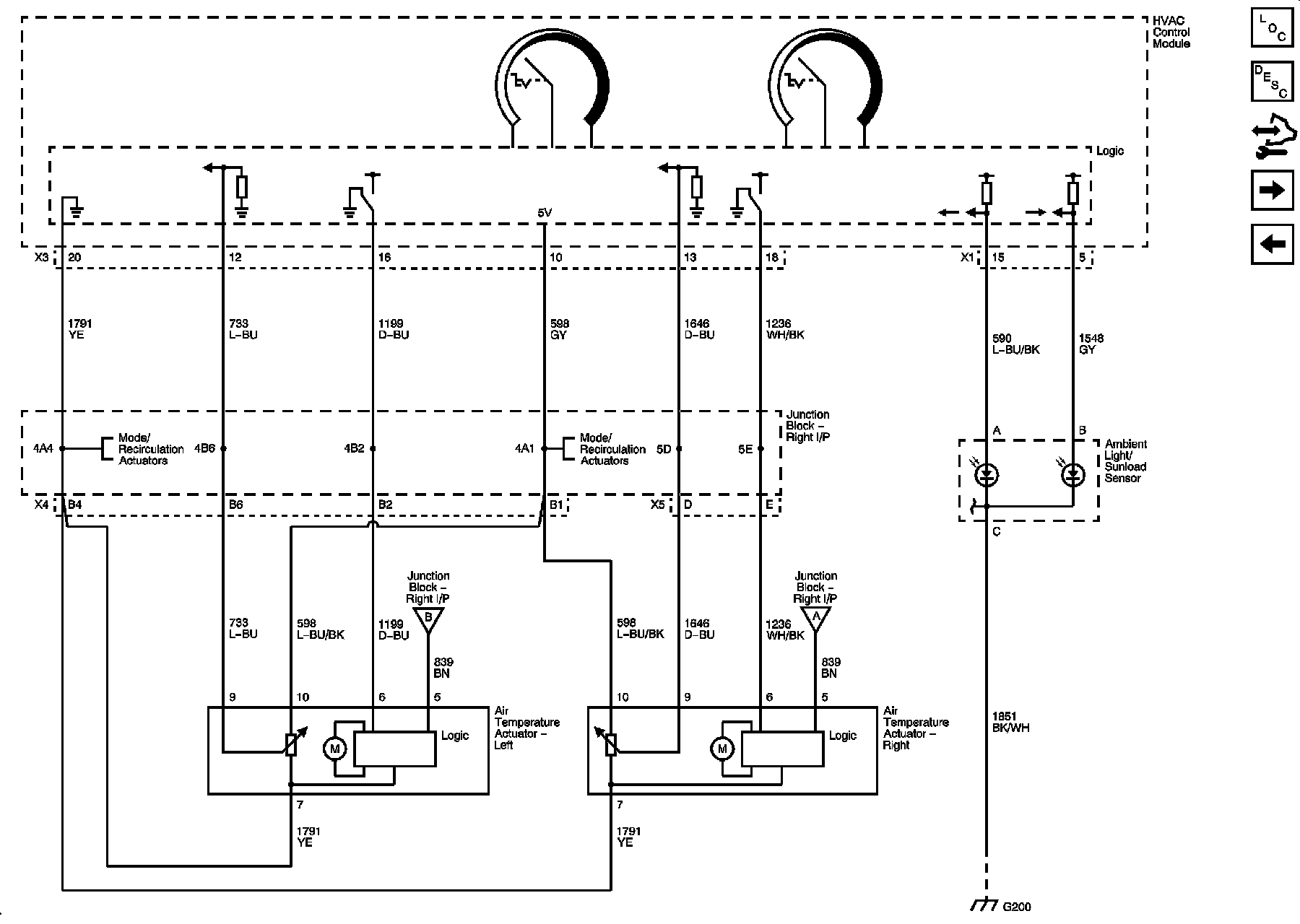

Temperature Controls

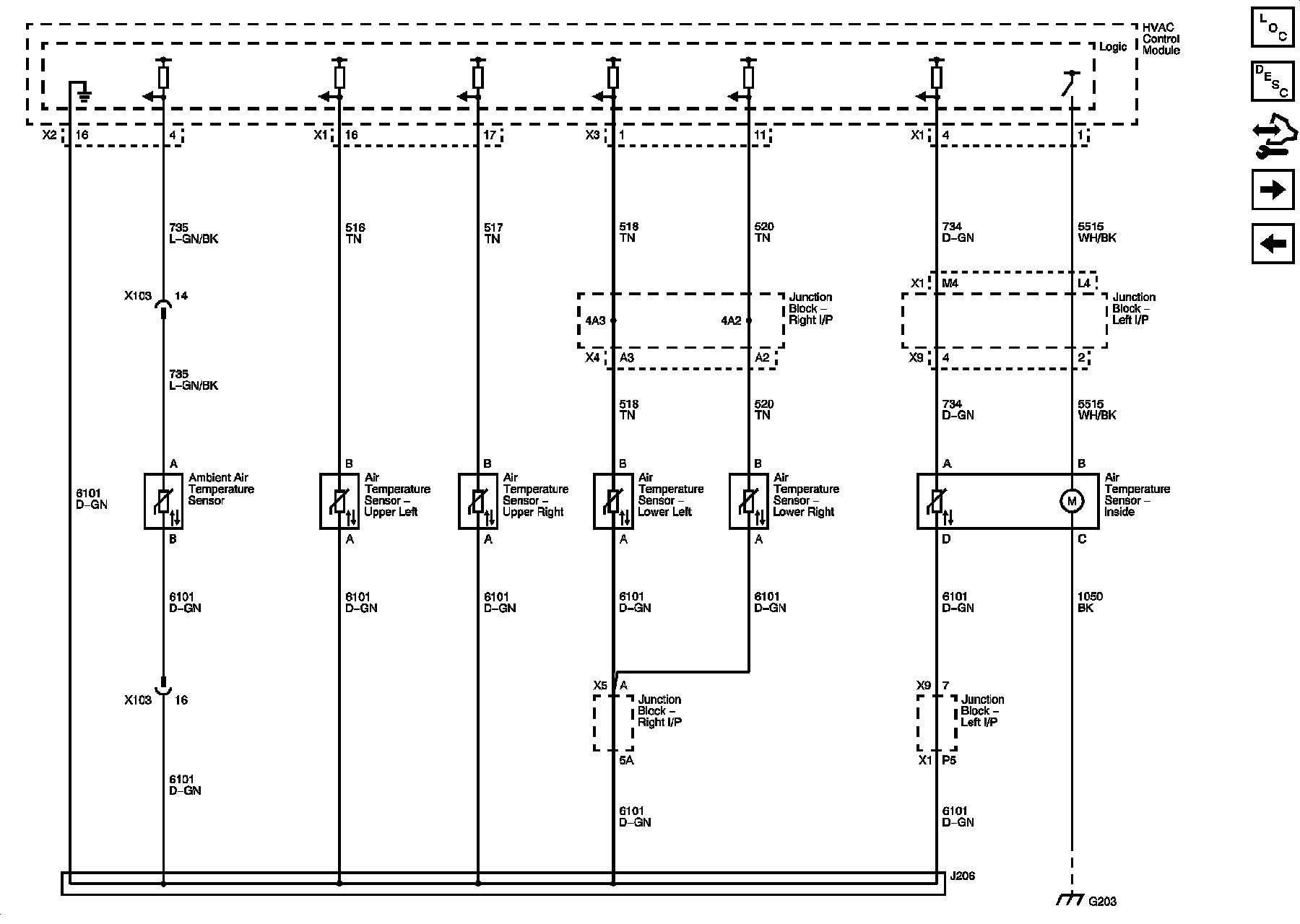

Temperature Sensors





A/C Compressor Controls





Auxiliary Blower Controls





Auxiliary Mode and Temperature Controls
