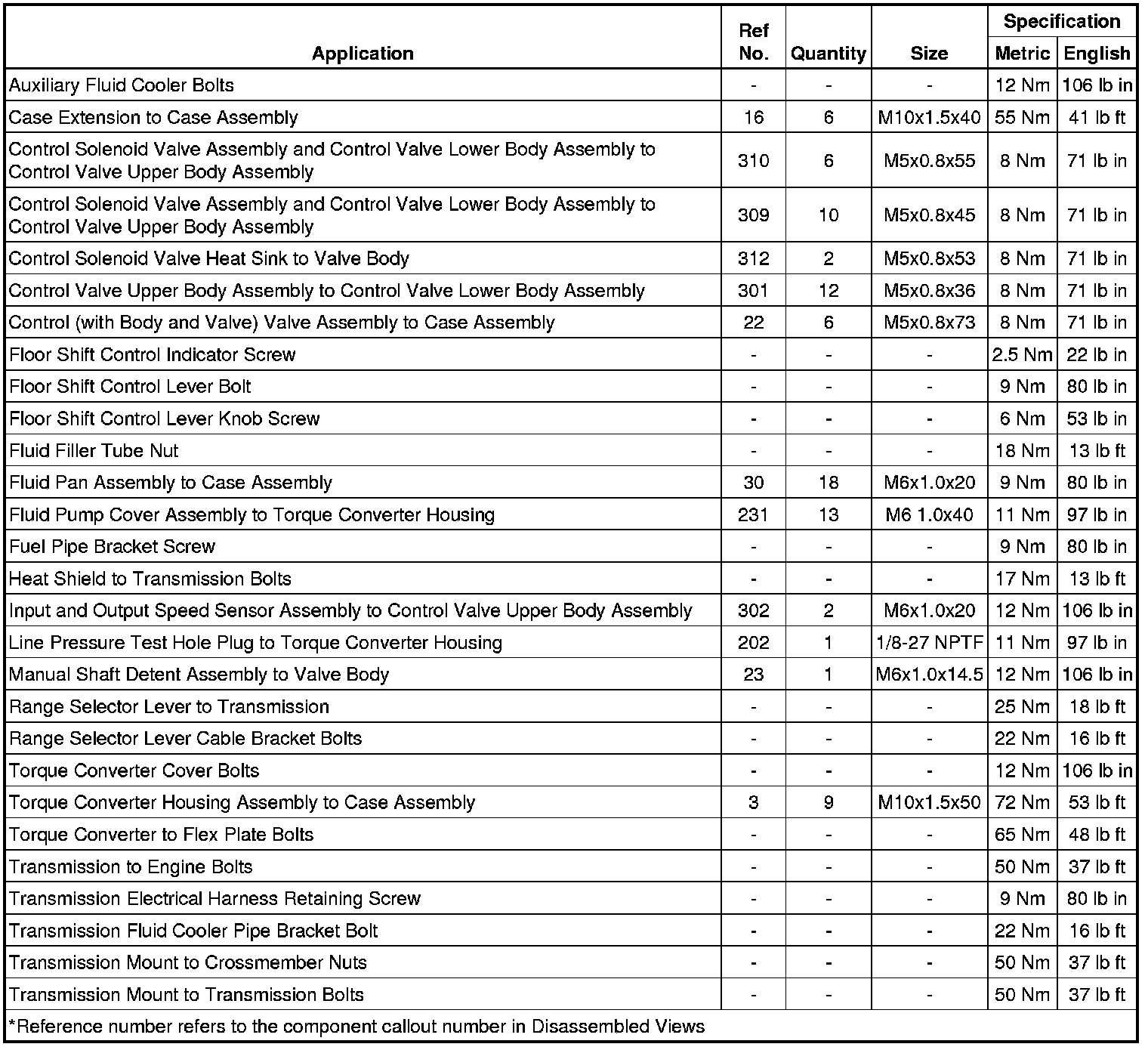

Fastener Tightening Specifications
Fastener Tightening SpecificationsFlex Plate BoltsAutomatic Transmission
Flex Plate Bolts - First Pass
20 Nm (15 lb ft)
Automatic Transmission
Flex Plate Bolts - Second Pass
50 Nm (37 lb ft)
Automatic Transmission
Flex Plate Bolts - Final Pass
100 Nm (74 lb ft)
Fluid Pan AssemblyFluid pan assembly to case assembly
9 Nm (80 lb in)
