Of - Po




Component Connector End Views

Off Road Grille Lamp - Left (UNR)





Off Road Grille Lamp - Right (UNR)





Off Road Grille Lamp Relay (UNR)





Off Road Grille Lamp Switch (UNR)





Off Road Roof Lamp - Left (UNJ)





Off Road Roof Lamp - Right (UNJ)





Off Road Roof Lamp Relay (UNJ)





Off Road Roof Lamp Switch (UNJ)

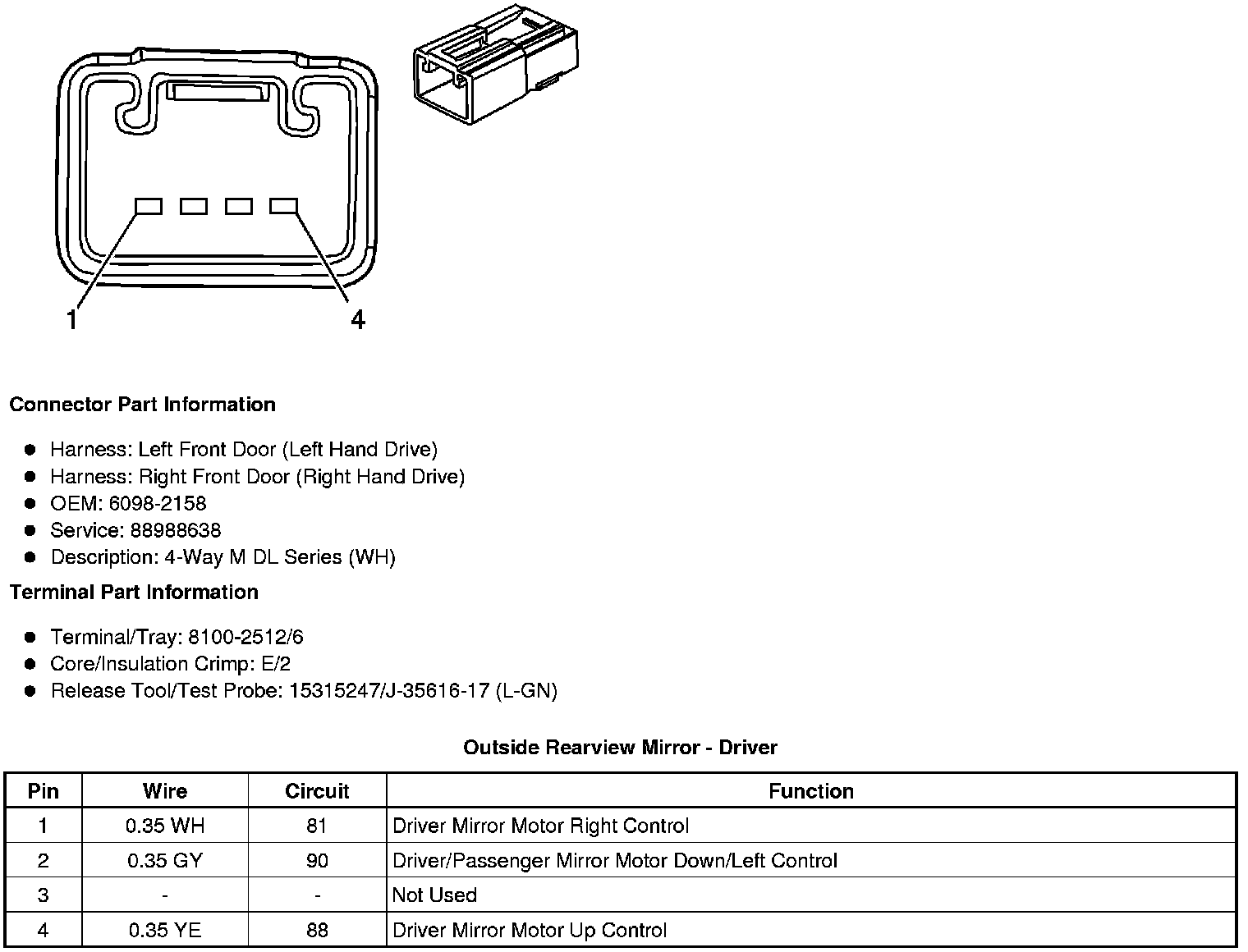

Outside Rearview Mirror - Driver

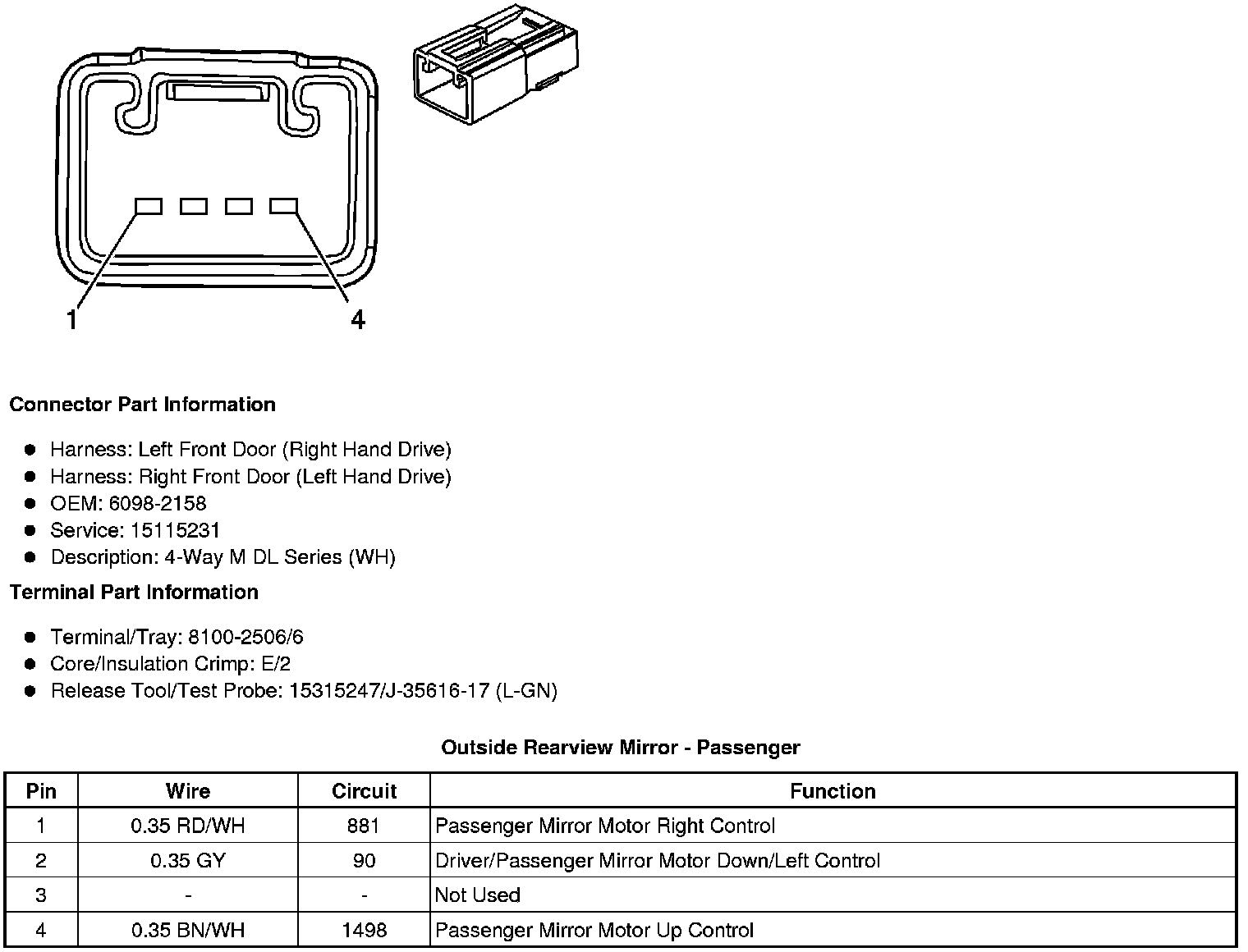

Outside Rearview Mirror - Passenger

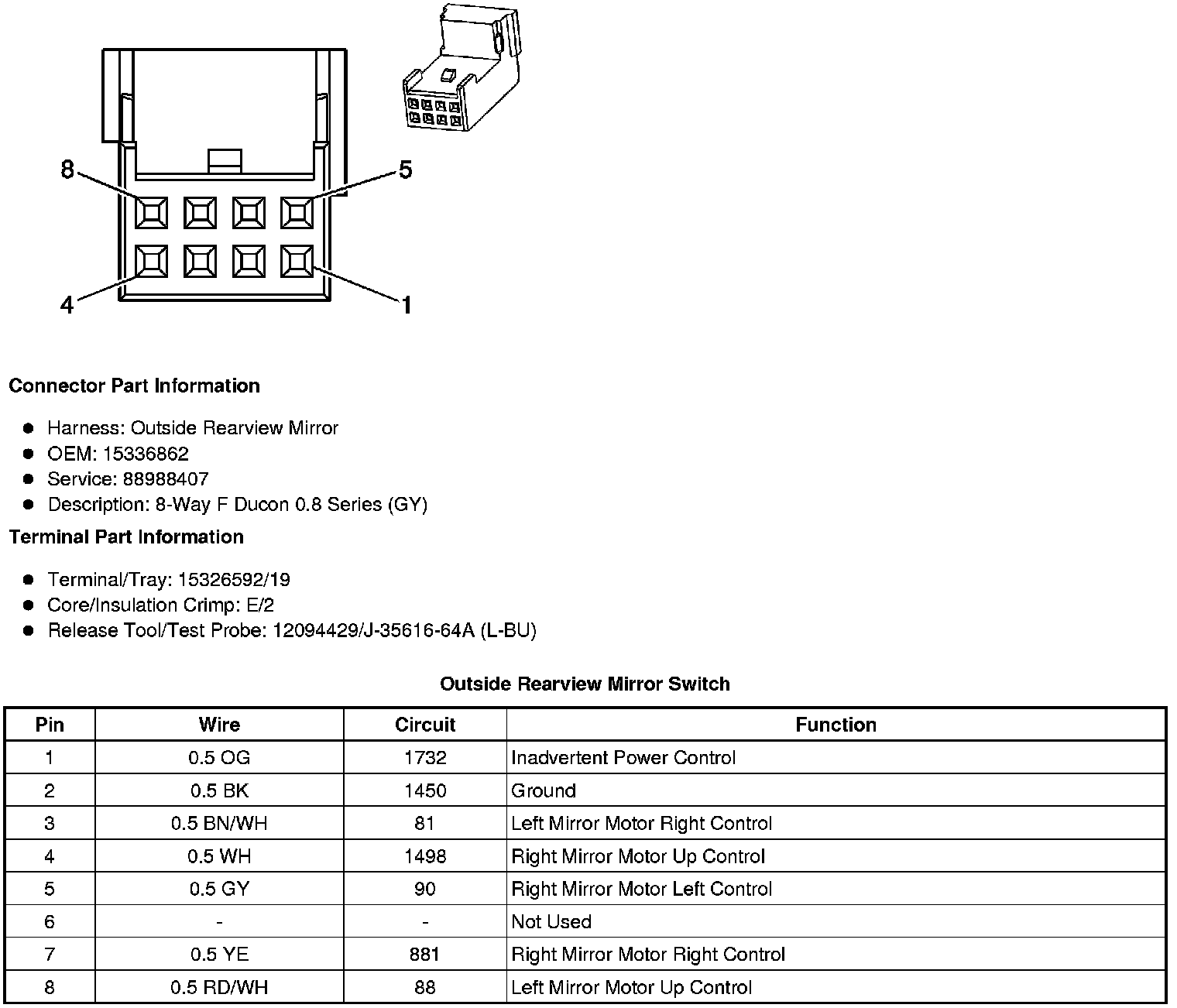

Outside Rearview Mirror Switch





Park/Turn Signal Lamp - Left Front (without TR6)





Park/Turn Signal Lamp - Right (without BRM)





Position Lamp - Left (BRM)





Position Lamp - Right (BRM)
