Ro - Ve

Component Connector End Views

Roof Clearance Lamp - Front Middle (UNH)

Roof Clearance Lamp - Left Front Inner (UNH)

Roof Clearance Lamp - Left Front Outer (UNH)

Roof Clearance Lamp - Right Front Inner (UNH)

Roof Clearance Lamp - Right Front Outer (UNH)

Seat Adjuster Motor Assembly - Driver (AG1)

Seat Adjuster Motor Assembly - Passenger (AG2)

Seat Adjuster Switch - Driver (AG1)

Seat Adjuster Switch - Passenger (AG2)

Seat Lumbar Motor - Driver (AG1)

Seat Lumbar Motor - Passenger (AG2)

Side Marker Lamp - Left Front (without TR6)

Seat Lumbar Adjuster Switch - Driver (AG1)

Seat Lumbar Adjuster Switch - Driver (without KA1)

Seat Lumbar Adjuster Switch - Passenger (KA1)

Side Marker Lamp - Right Front (without TR6)

Stop Lamp Relay (T89)

Stop Lamp Switch

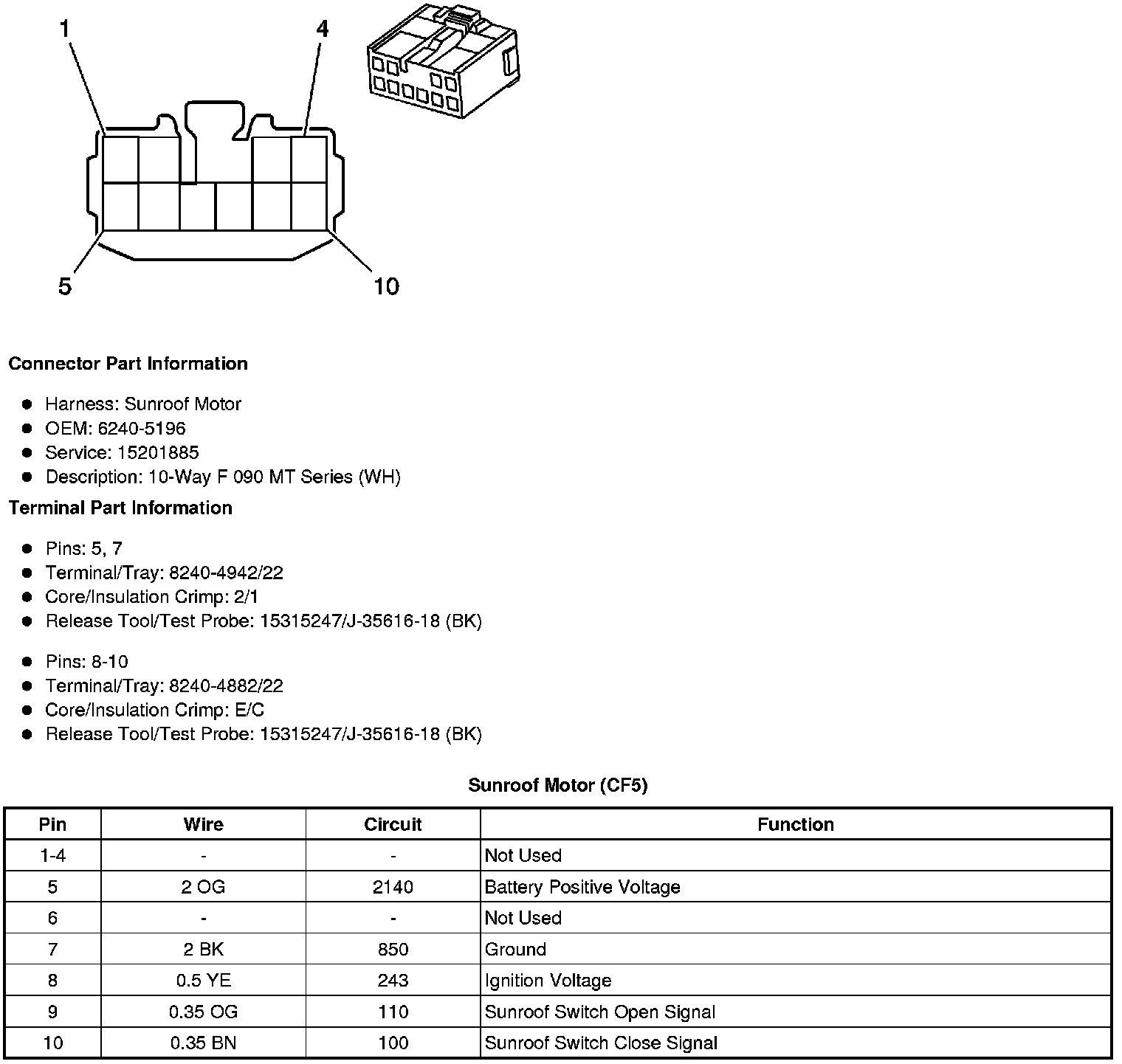

Sunroof Motor (CF5)

Sunroof Switch (CF5)

Trailer Lighting Converter X1 (Truck)

Trailer Lighting Converter X2 (Truck)

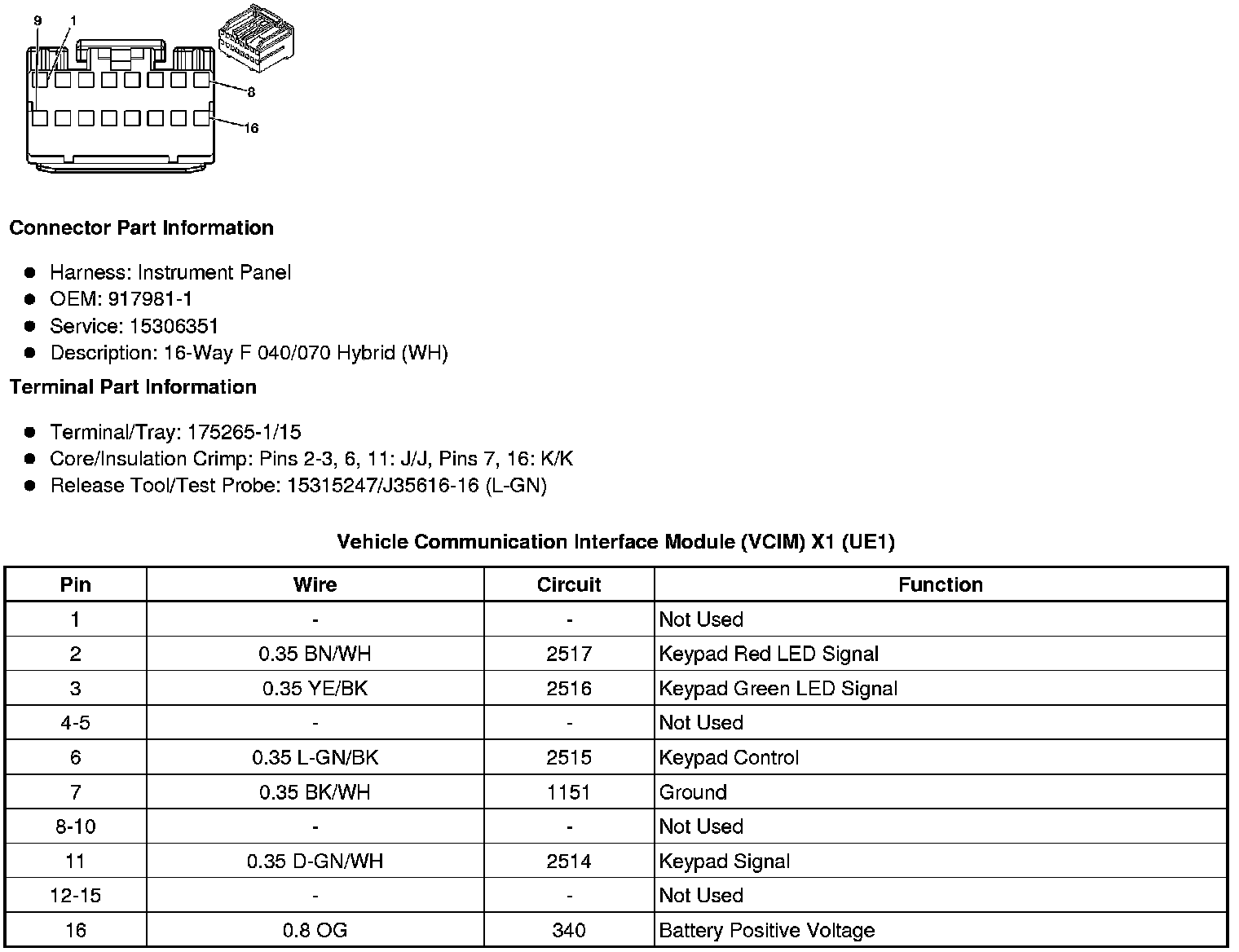

Vehicle Communication Interface Module (VCIM) X1 (UE1)

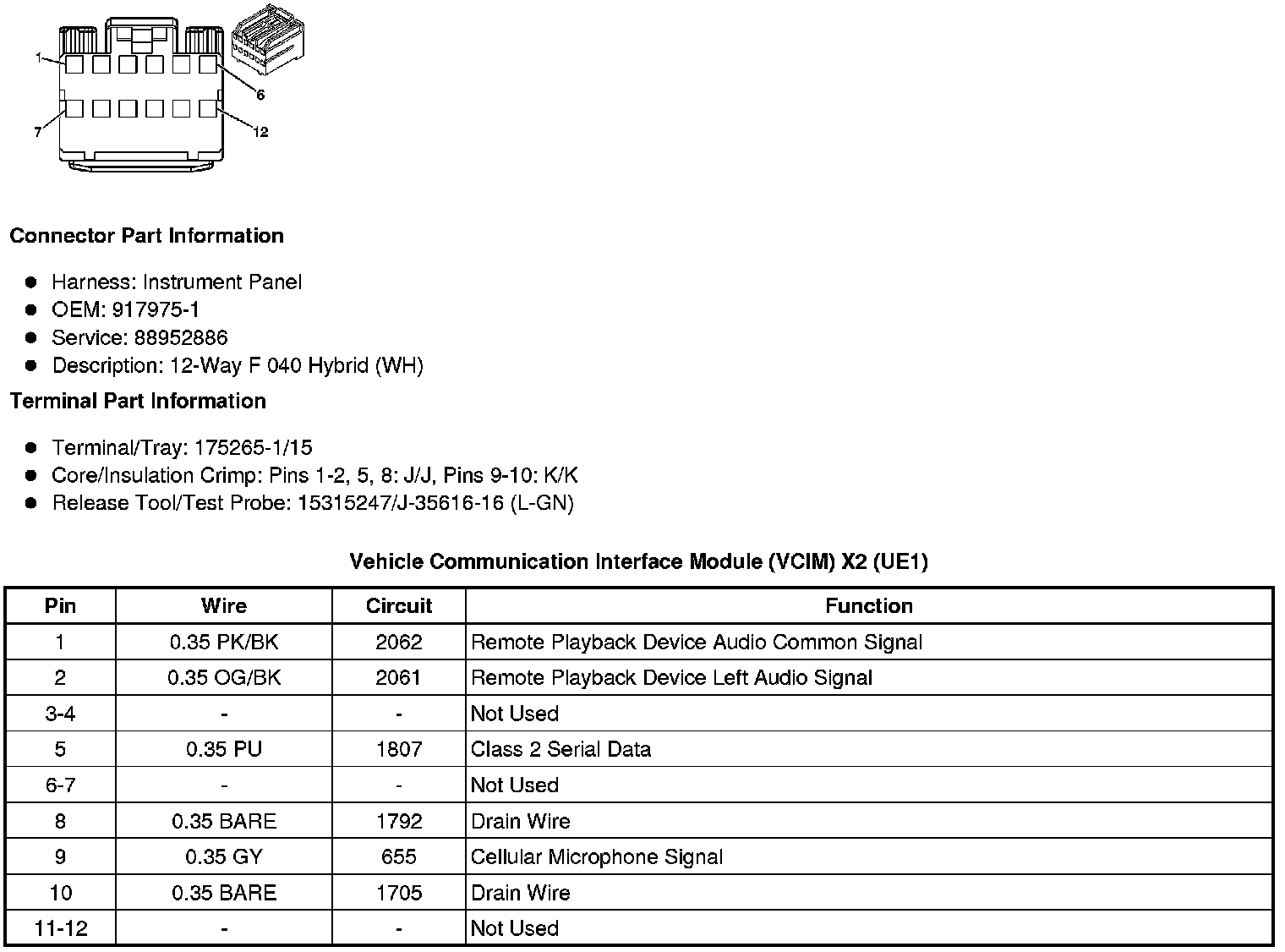

Vehicle Communication Interface Module (VCIM) X2 (UE1)
