Power Distribution Schematic 6




Power Distribution Schematics

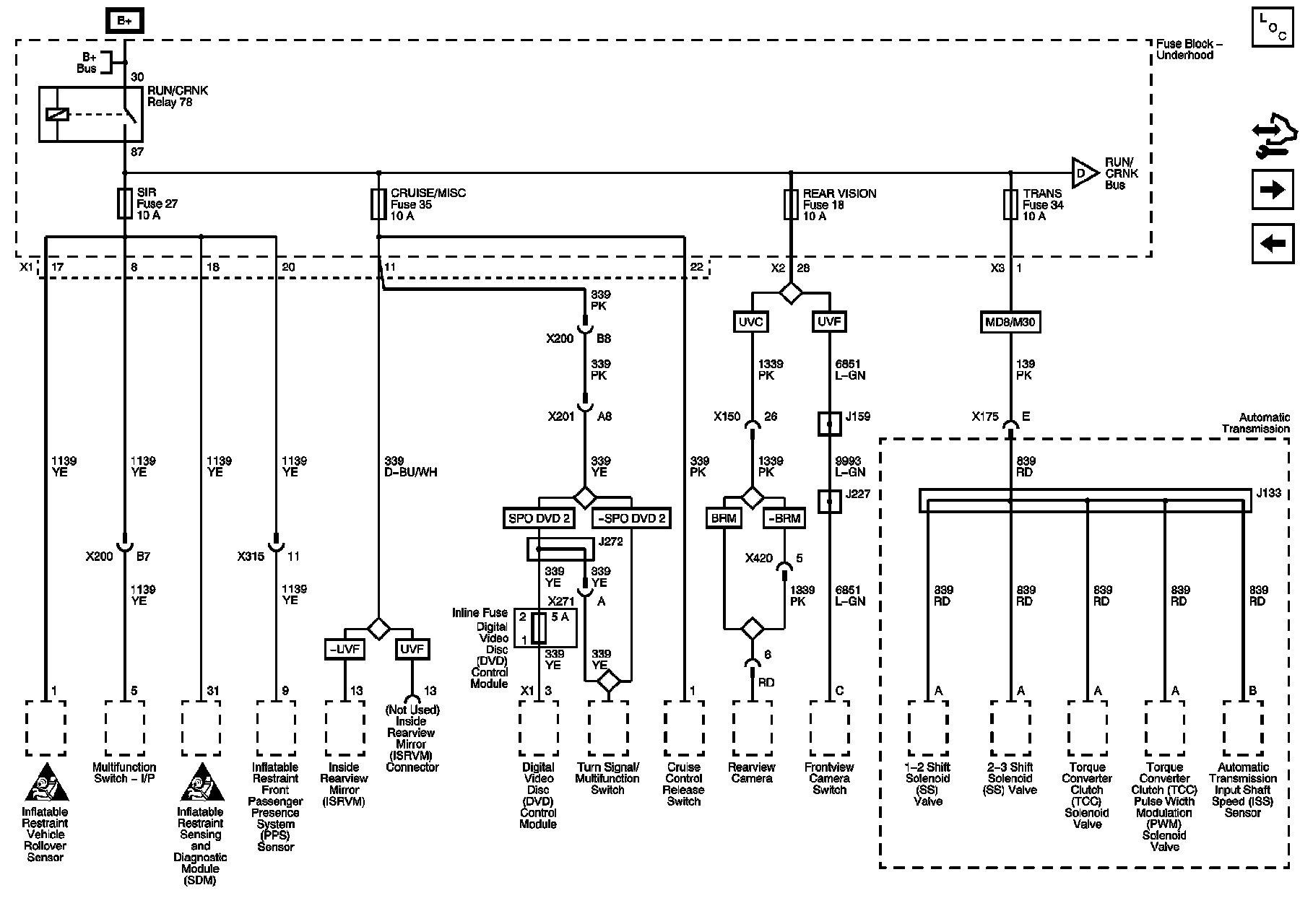

RUN/CRNK Bus (1 of 3), AIRBAG, CRUISE/MISC, and TRANS Fuses

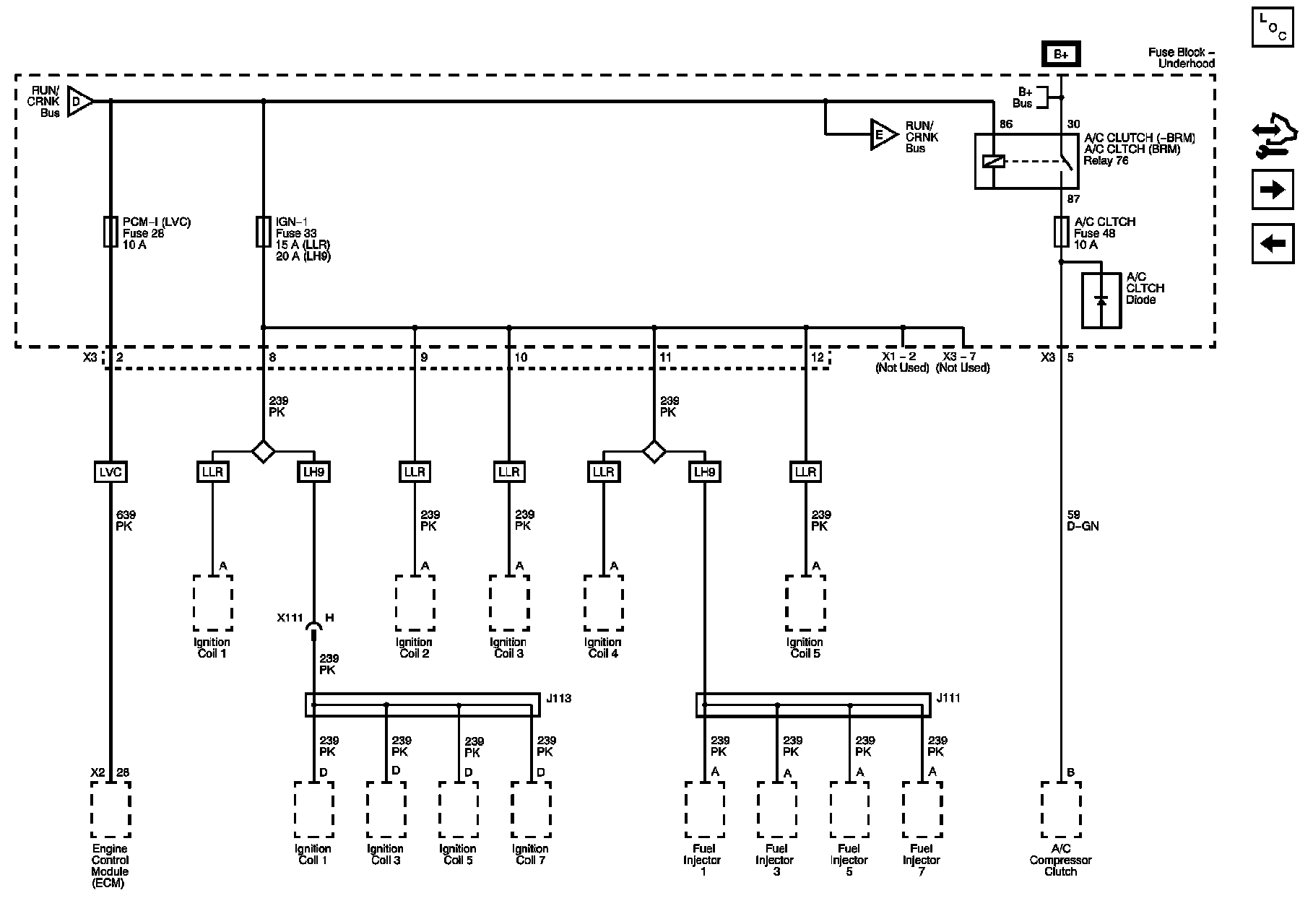

RUN/CRNK Relay Bus (2 of 3), A/C CLUTCH, ABS/VSES, BCK/UP, IGN1, and PCM-I Fuses

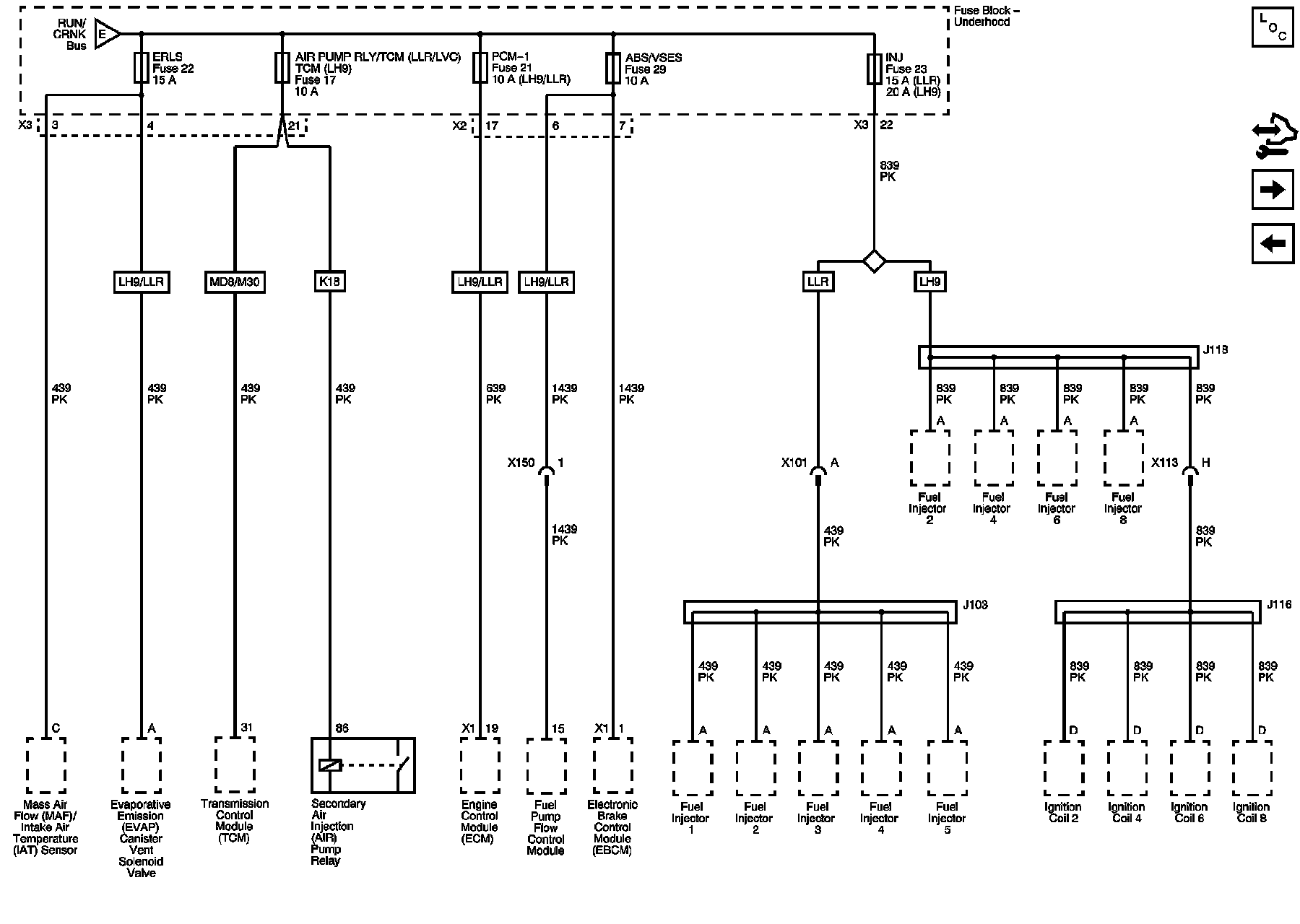

RUN/CRNK Relay Bus (3 of 3), AIR PUMP RLY (LLR or LVC), ENG CNTRL SYS,, INJ, PCM-1 and TCM (LH9) Fuses
