Variable Valve Timing Solenoid: Locations




Powertrain Component Views

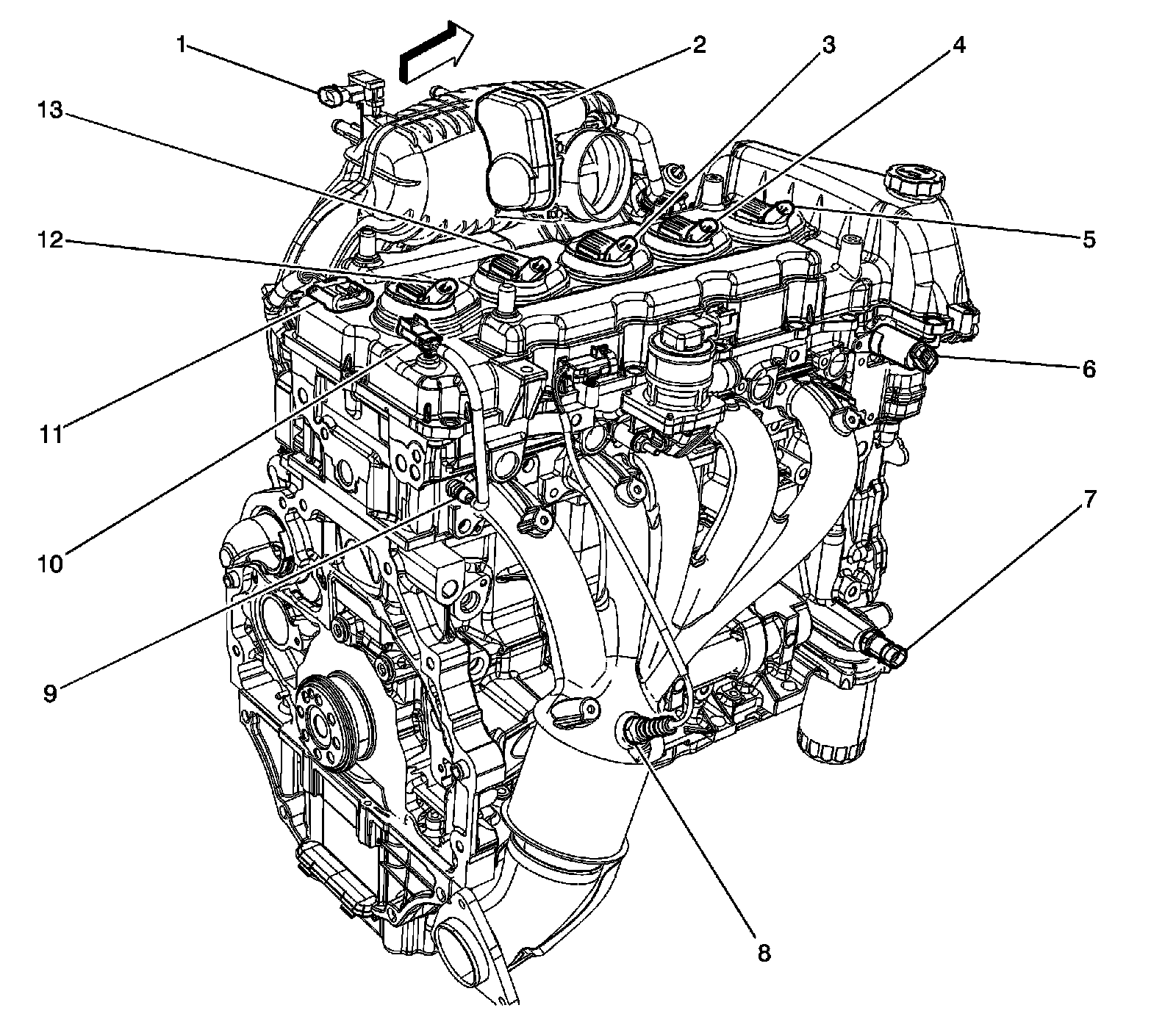

Right Rear of the Engine Components (LLR)




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body
3 - Ignition Coil 3
4 - Ignition Coil 2
5 - Ignition Coil 1
6 - Camshaft Position (CMP) Actuator Solenoid Valve
7 - Engine Oil Pressure (EOP) Switch
8 - Heated Oxygen Sensor (HO2S) 1
9 - Engine Coolant Temperature (ECT) Sensor
10 - Engine Coolant Temperature (ECT) Sensor Connector
11 - X101
12 - Ignition Coil 5
13 - Ignition Coil 4
