Rear Drive Axle

Differential Oil Replacement

Removal Procedure




1. Clean the area around the rear axle fill plug.

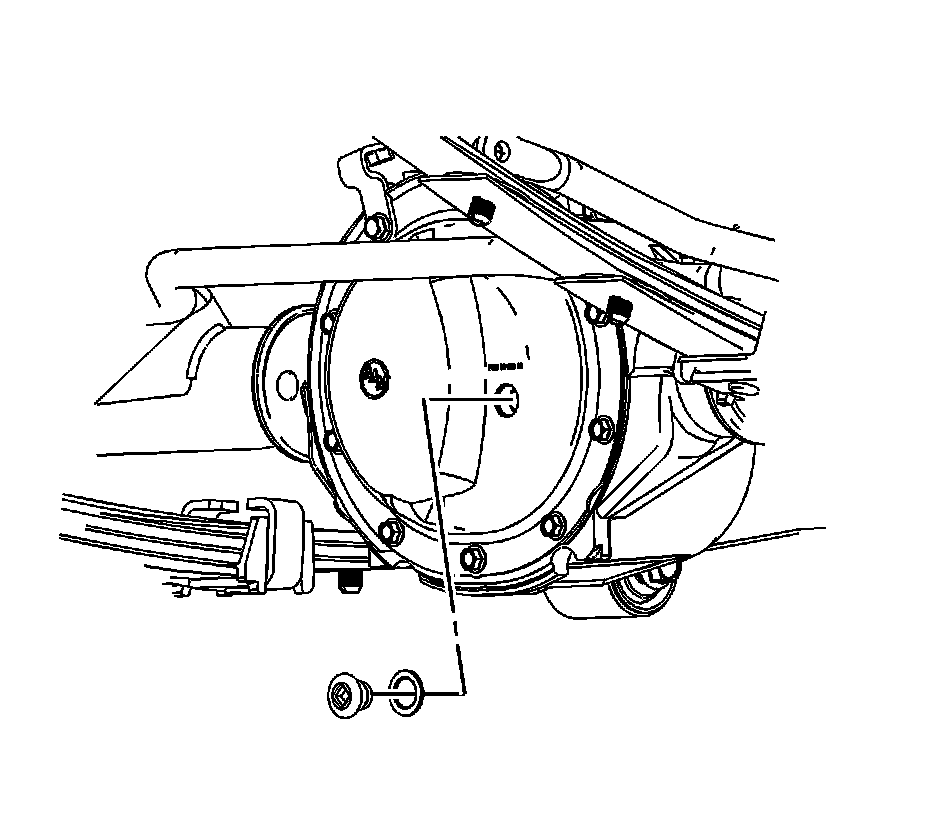

2. Remove the rear axle drain plug and drain the lubricant into a suitable container.

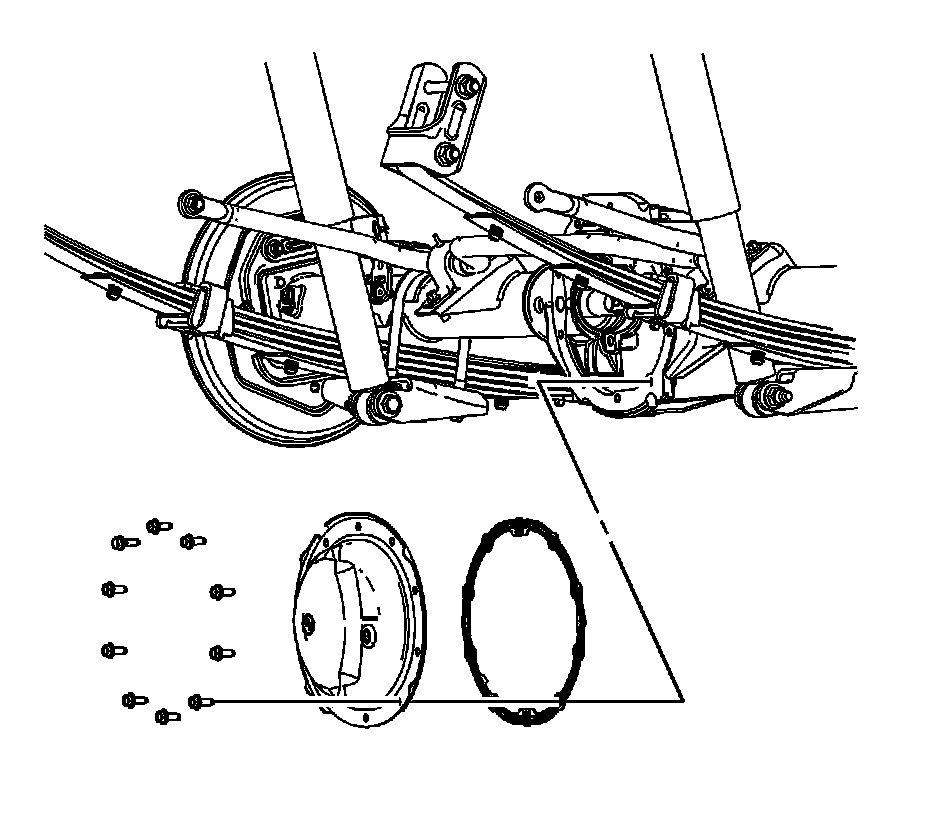

3. Remove the rear axle cover. Refer to Rear Axle Housing Cover and Gasket Replacement (Service and Repair).

Installation Procedure





Note: A new gasket is not required unless the gasket is damaged.

1. Install the rear axle cover. Refer to Rear Axle Housing Cover and Gasket Replacement (Service and Repair).





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the drain plug.

Tighten the drain plug to 33 Nm (24 lb ft).

3. Fill the rear axle with axle lubricant. Use the proper fluid. Refer to Approximate Fluid Capacities ([1][2]Maintenance) and Fluid and Lubricant Recommendations (USA and Canada) (Maintenance).
4. Inspect the fluid level. Refer to Rear Axle Lubricant Level Inspection (Rear Drive Axle).
