Transmission Position Sensor/Switch: Locations

Powertrain Component Views

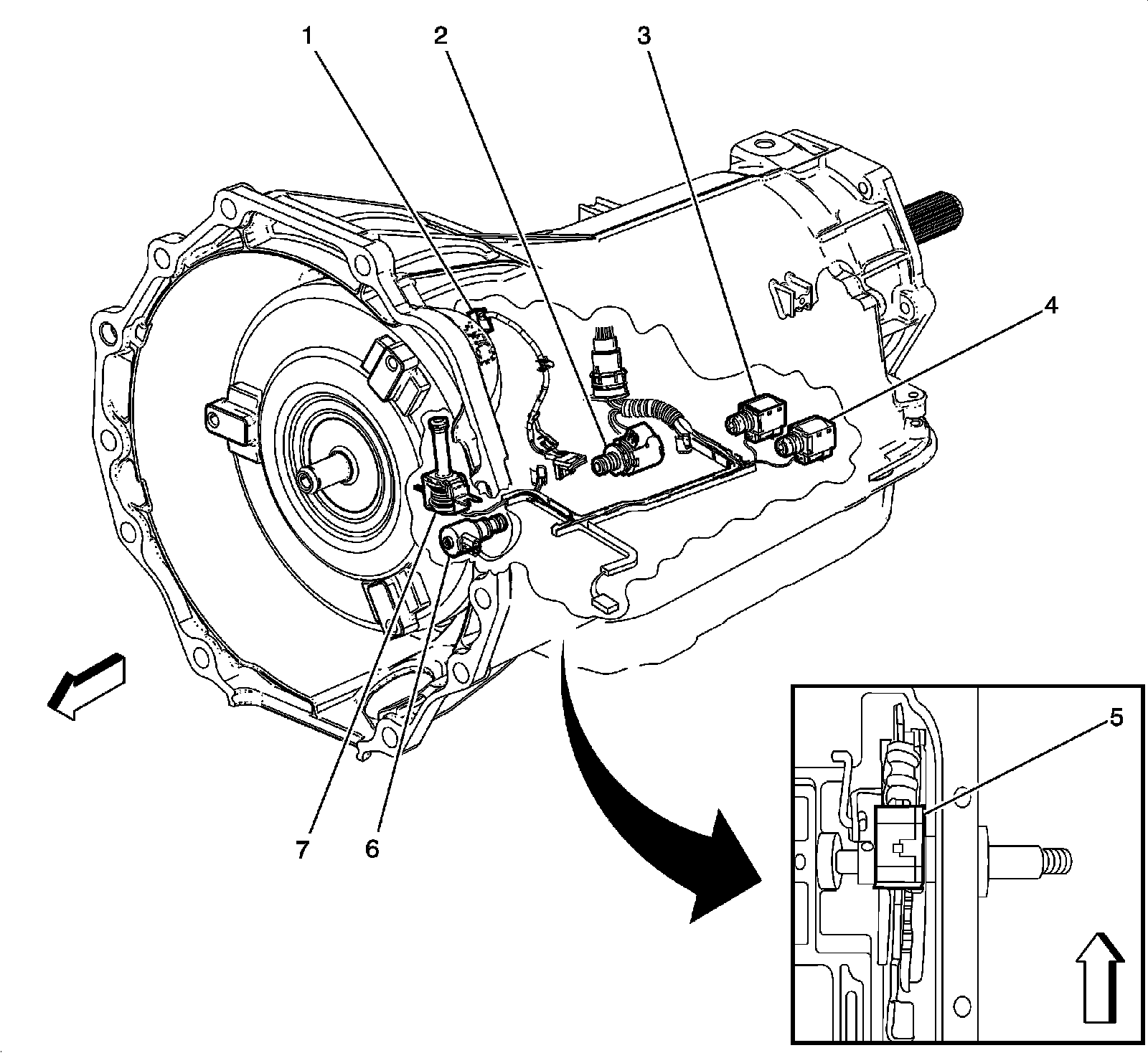

Inside the Transmission Components (M30)

1 - Automatic Transmission Input Shaft Speed (ISS) Sensor
2 - Pressure Control (PC) Solenoid Valve
3 - 2-3 Shift Solenoid (SS) Valve
4 - 1-2 Shift Solenoid (SS) Valve
5 - Park/Neutral Position (PNP) Switch
6 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
7 - Torque Converter Clutch (TCC) Solenoid Valve
