Impact Sensor: Locations

Door Component Views

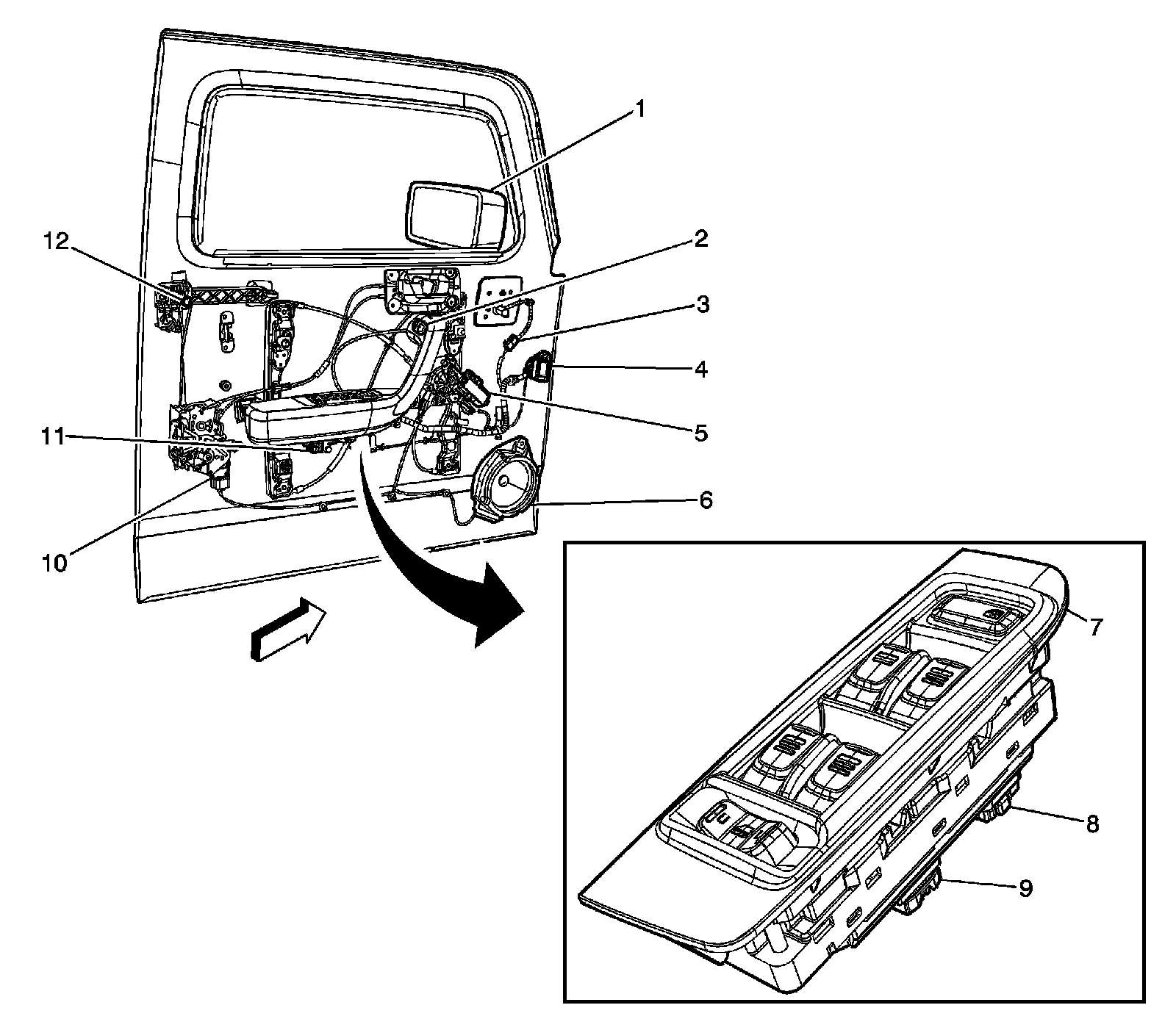

Driver Door Components (Left Hand Drive)




1 - Outside Rearview Mirror - Driver
2 - Outside Rearview Mirror Switch
3 - X510
4 - X500
5 - Window Motor - Driver
6 - Speaker - Left Front
7 - Door Lock/Window Switch - Driver
8 - Door Lock/Window Switch - Driver X1
9 - Door Lock/Window Switch - Driver X2
10 - Door Lock Actuator - Driver
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12 - Key Lock Cylinder

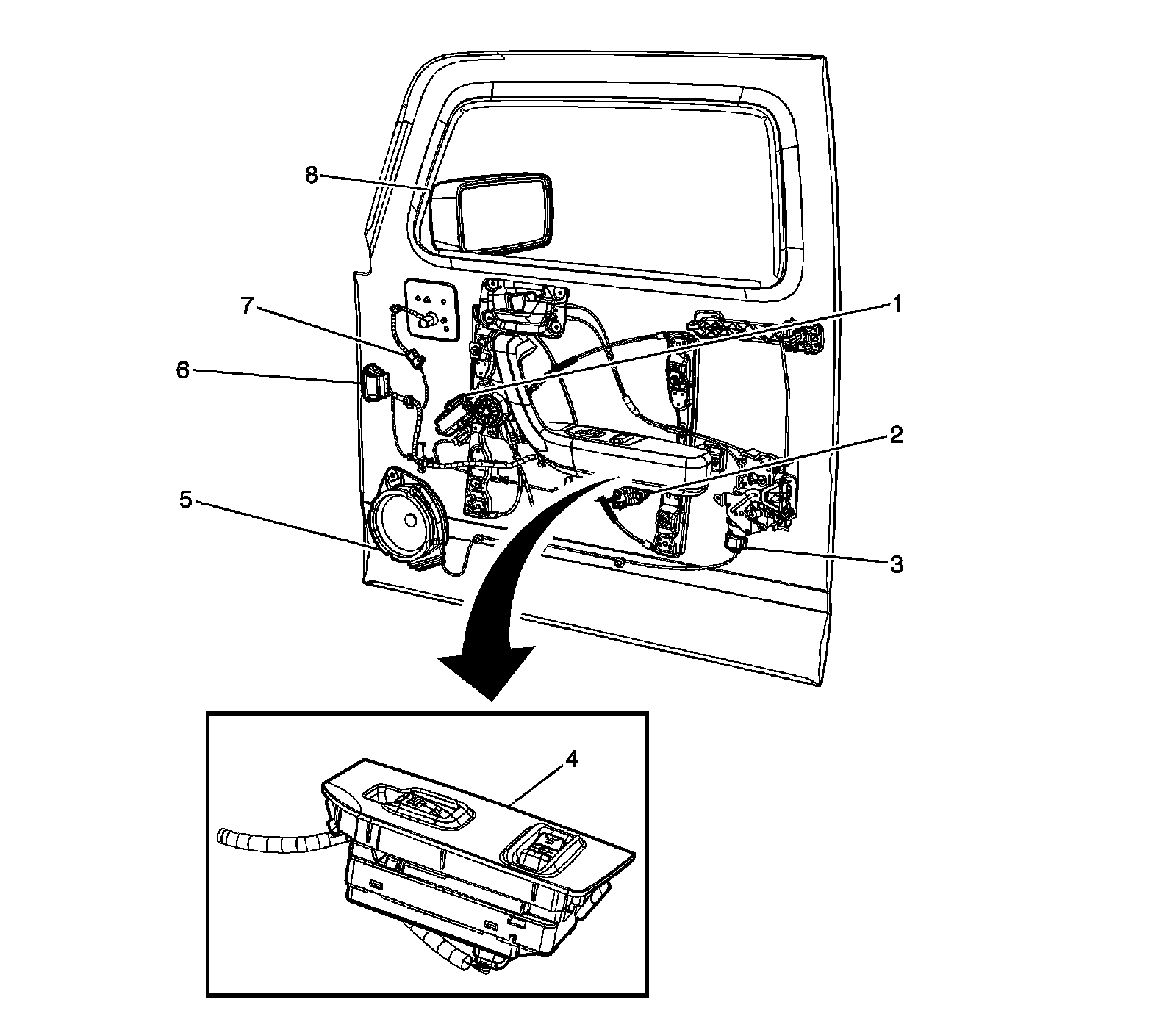

Passenger Door Components (Left Hand Drive)




1 - Window Motor - Passenger
2 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3 - Door Lock Actuator - Passenger
4 - Door Lock/Window Switch - Passenger
5 - Speaker - Right Front
6 - X600
7 - X610
8 - Outside Rearview Mirror - Passenger

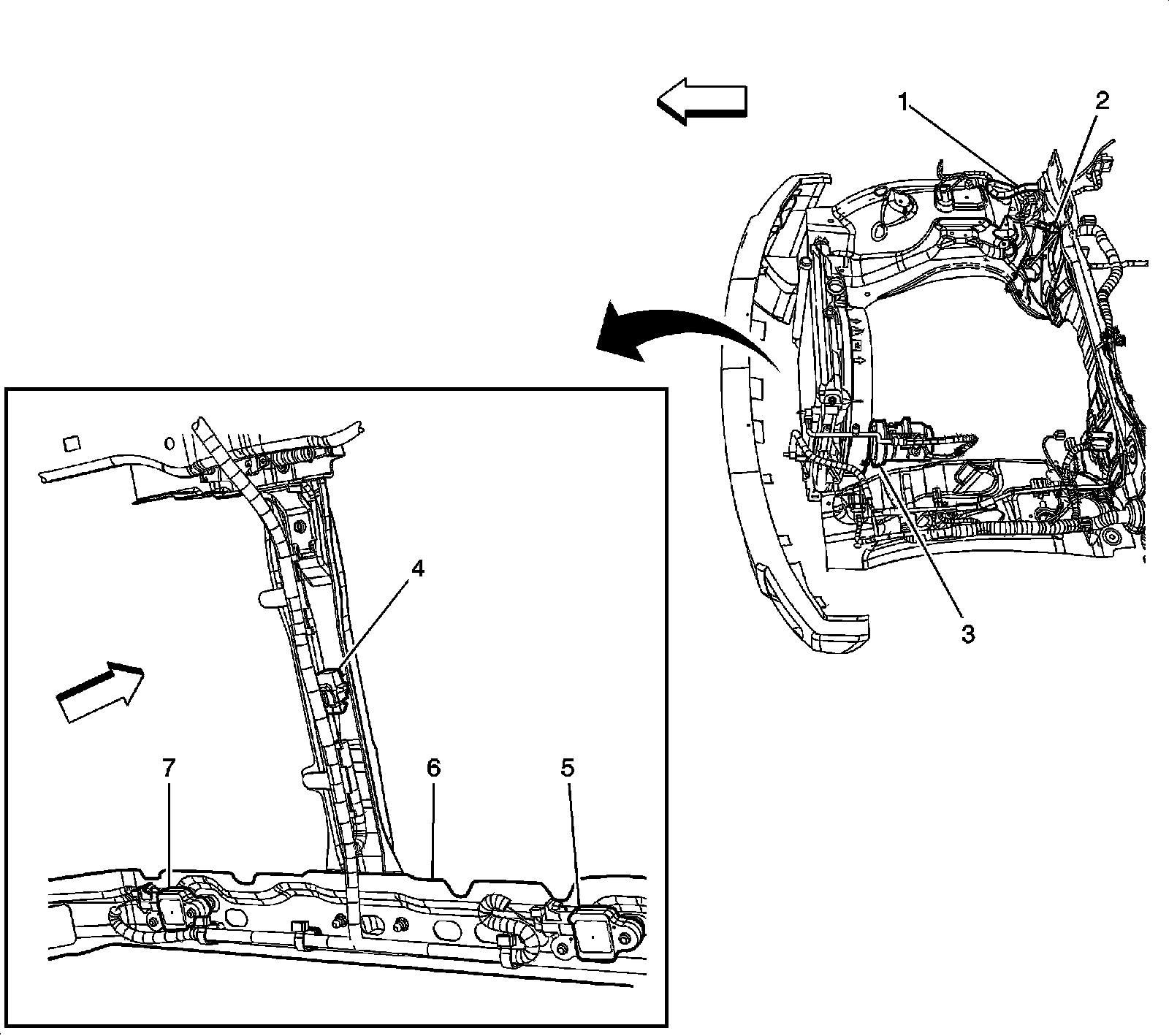

Engine Compartment Components - 3 of 3




1 - Body Harness
2 - A/C Refrigerant Pressure Sensor (Left Hand Drive)
3 - A/C Compressor Clutch (LLR)
4 - Ambient Air Temperature Sensor
5 - Inflatable Restraint Front End Sensor - Right
6 - Lower Radiator Support
7 - Inflatable Restraint Front End Sensor - Left
