Wheel Speed Sensor: Testing and Inspection

Operation CHARM: Car repair manuals for everyone.

>> >> >> >> >> >> >> >>

Manuals through 2025 now available!

Our trusted friends have launched a new website named LEMON, which has newer manuals. It also contains all the CHARM manuals.

LEMON is the spiritual successor to CHARM, I recommend you try it!

Link: lemon-manuals.la or lemon-manuals.org.ua

(Some people have issue connecting. LEMON is investigating. For now, use Firefox or change your DNS server)

Or, hide this message: temporarily or permanently

pro multis · About Operation CHARM

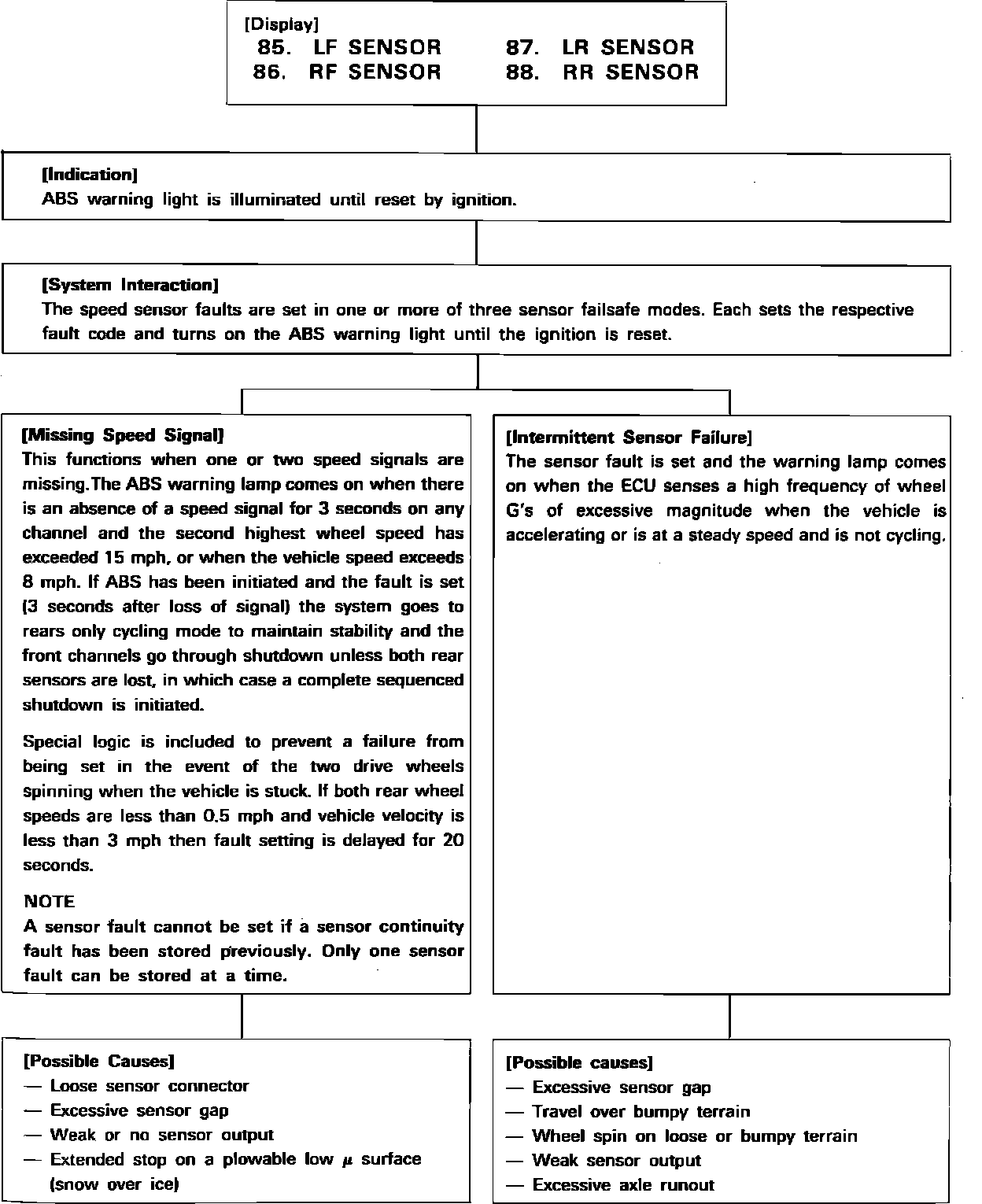

Fig. 11 Code 85. LF Sensor, Code 86. RF Sensor, Code 87:

Fig. 12 Code 95. LF Sensor Continuity, Code 96. RF Sensor Continuity, Code 97. LR Sensor Continuity & Code 98. RR Sensor Continuity:
