A/C - Thermo Cutout Addition

89hyundai04

Subject: A/C THERMOT CUTOUT ADDITION

Group: ENGINE


Number: 008


Date: APRIL


Model: SONATA

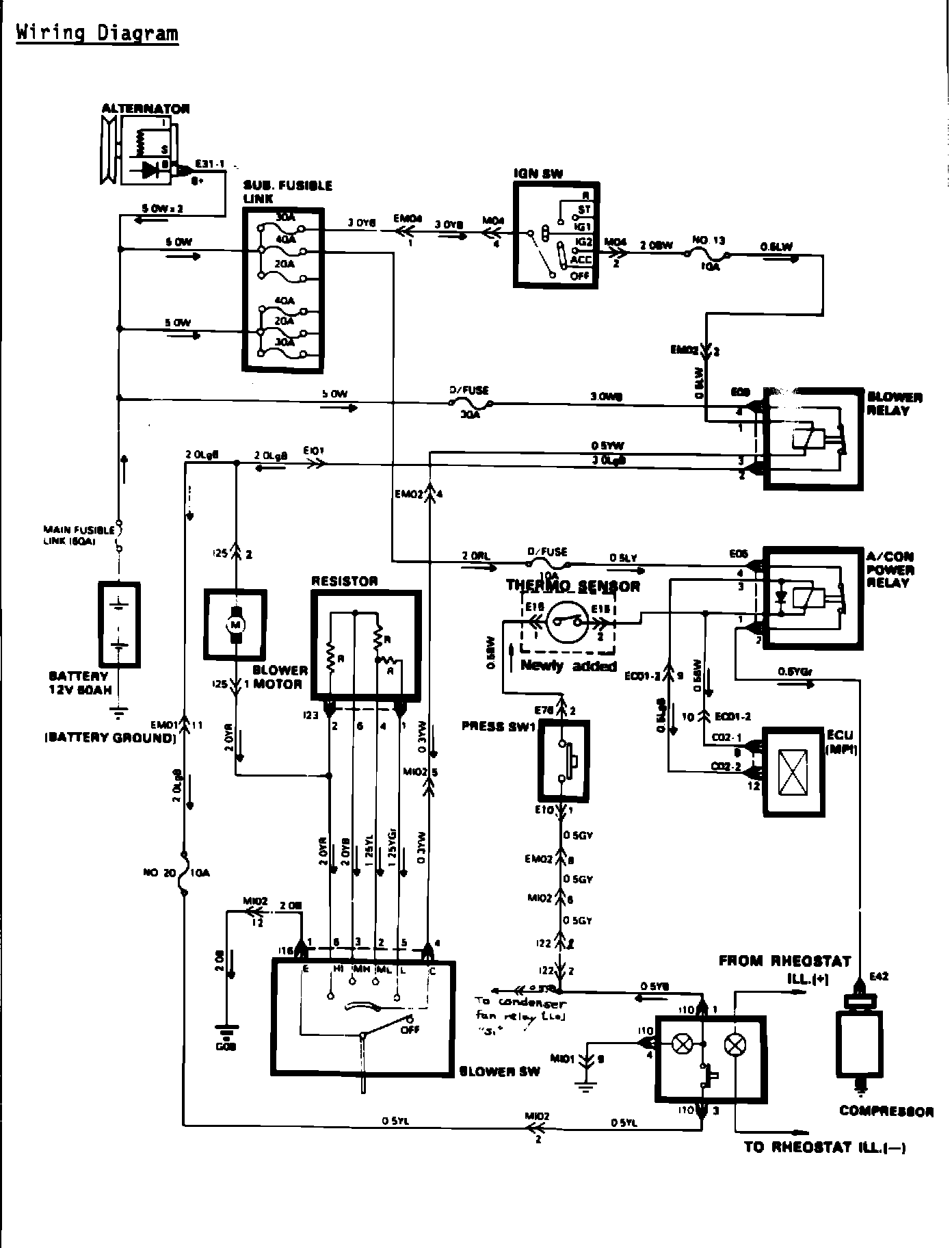

An air conditioning compressor thermo cutout has been added to all factory A/C equipped Sonatas. The sensor turns off the A/C compressor when engine coolant temperature reaches 240~F (115~C) to reduce the possibility of engine overheating.

Production Change Effective

Date VIN

2/1/89 KMHBF21S4KU051270

Part Number Information

Part Name Old Part Number New Part Number

Radiator Ass'y 25310-33050 (AT) 25310-33B00 (AT)
25310-33000 (MT) 25310-33A00 (MT)
Thermo-Sensor # 2 ----- 93920-33000
Wiring Ass'y, Engine 91201-33051 (AT) Same
91201-33151 (MT) Same

Interchangeability

Only when all related parts are changed as a set.
