Electrical Diagrams

NOTE: References to late production applies to vehicles produced after June 1991. Early production applies prior to July 1991.

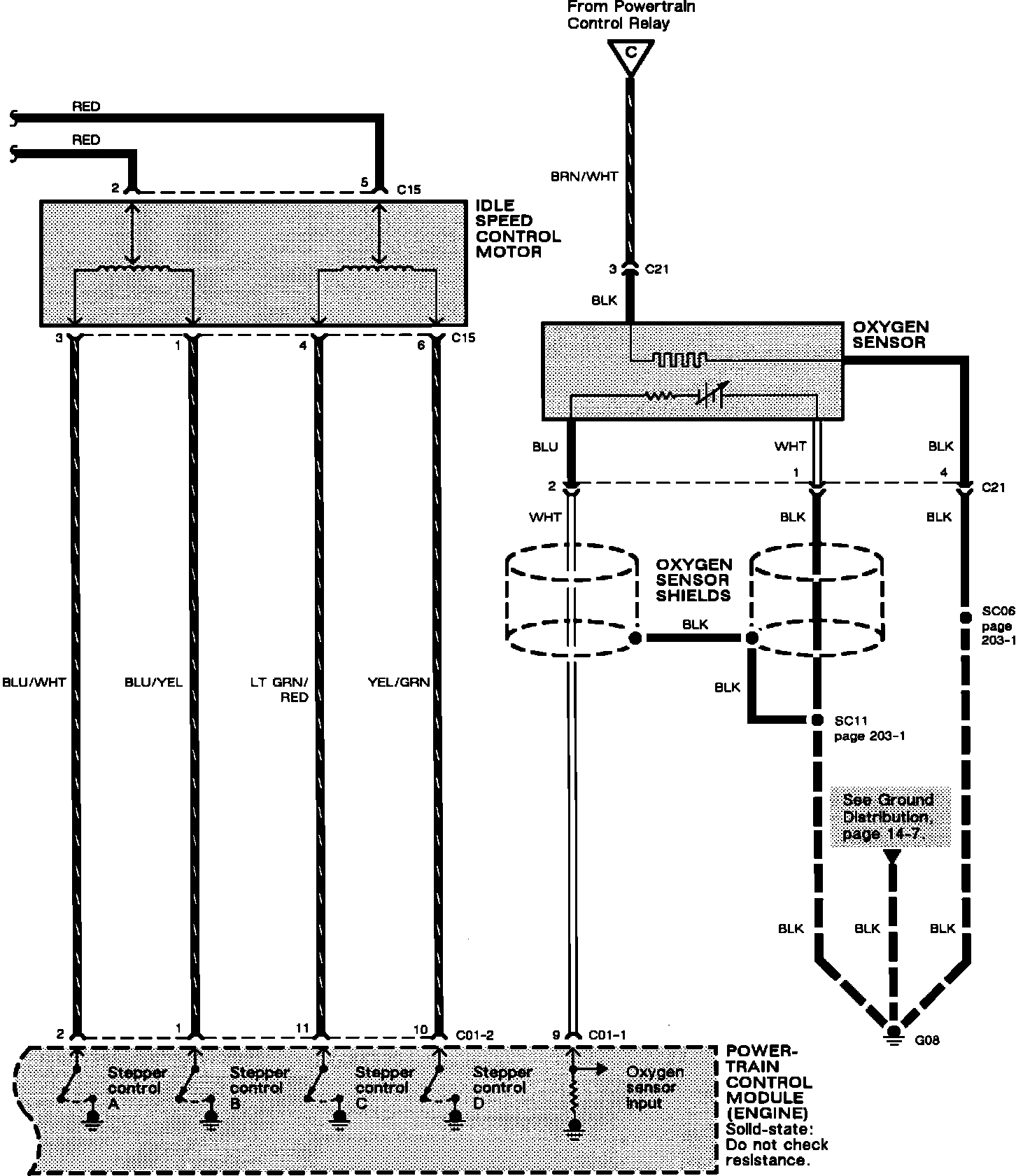

PART 1 OF 8

Multi-port Injection:

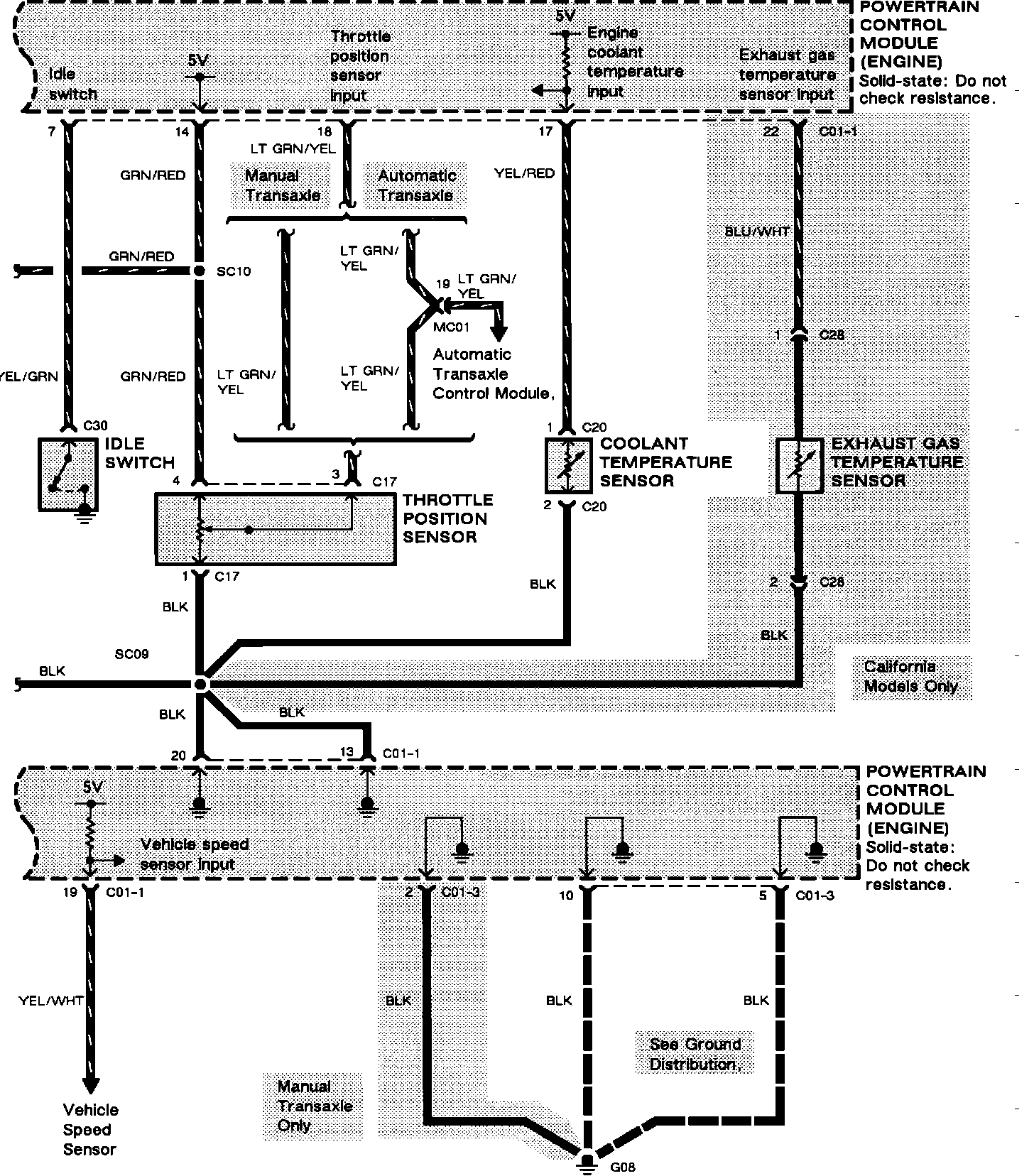

PART 2 OF 8

Multi-port Fuel Injection:

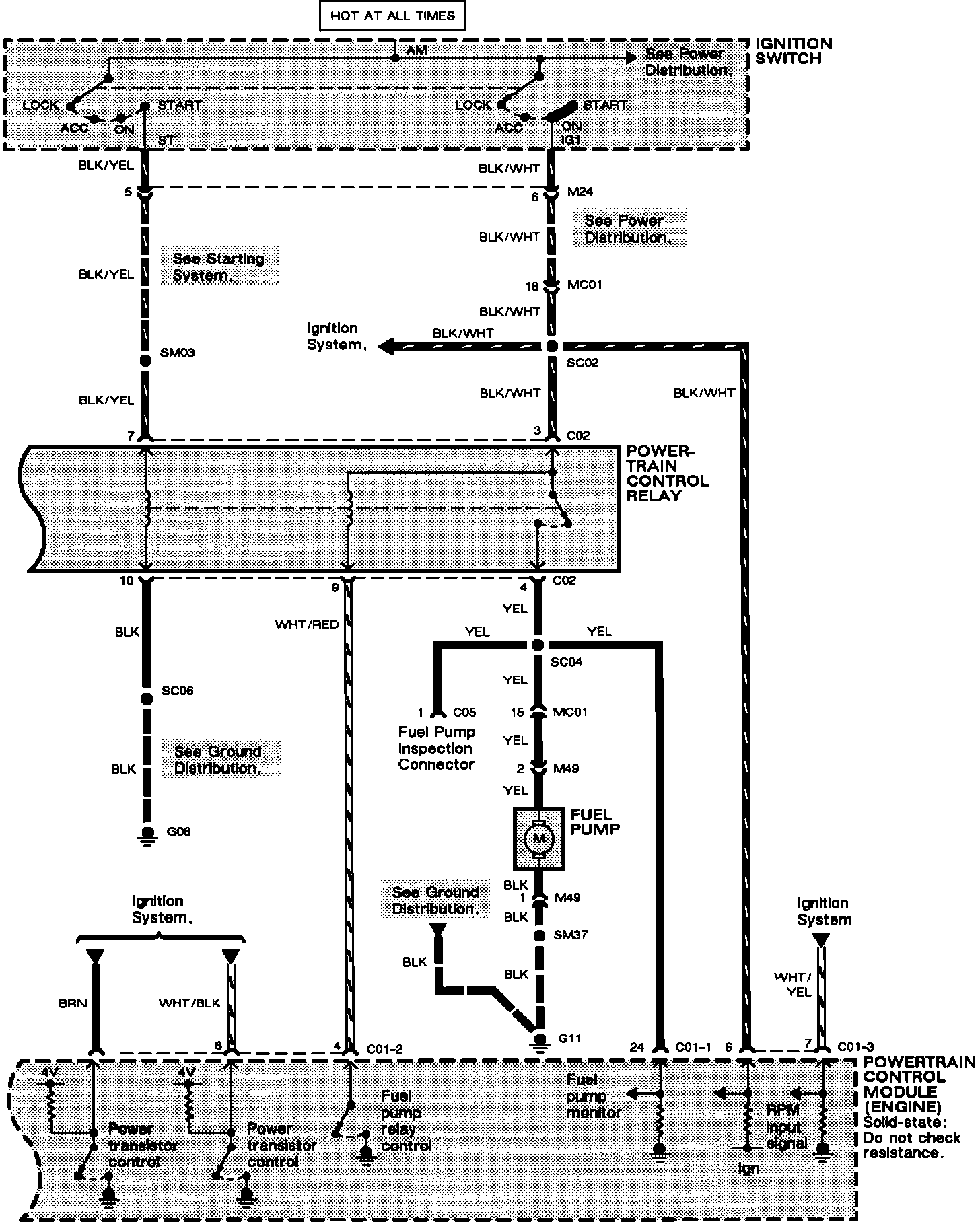

PART 3 OF 8

Multi-port Fuel Injection:

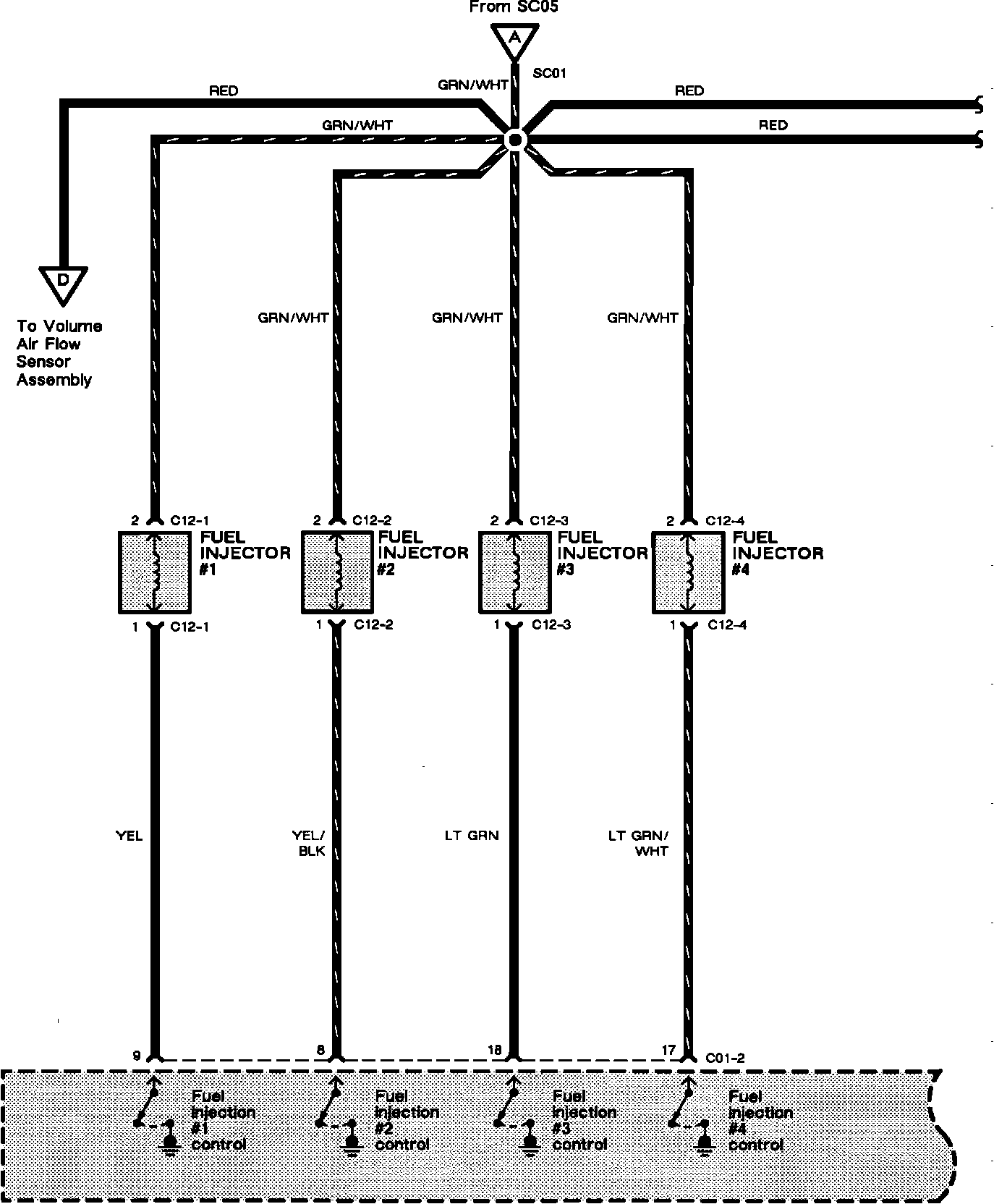

PART 4 OF 8

Multi-port Fuel Injection:

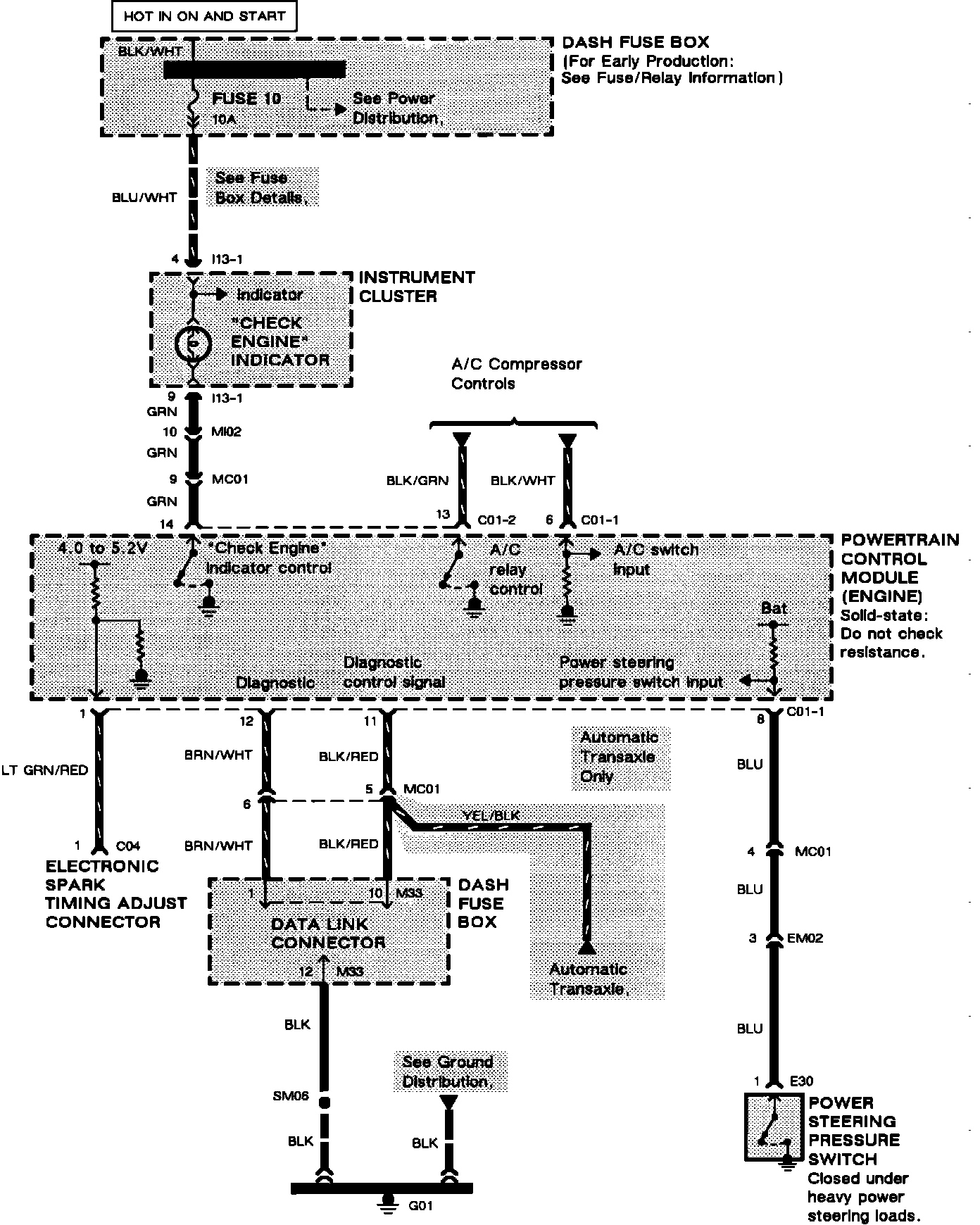

PART 5 OF 8

Multi-port Fuel Injection:

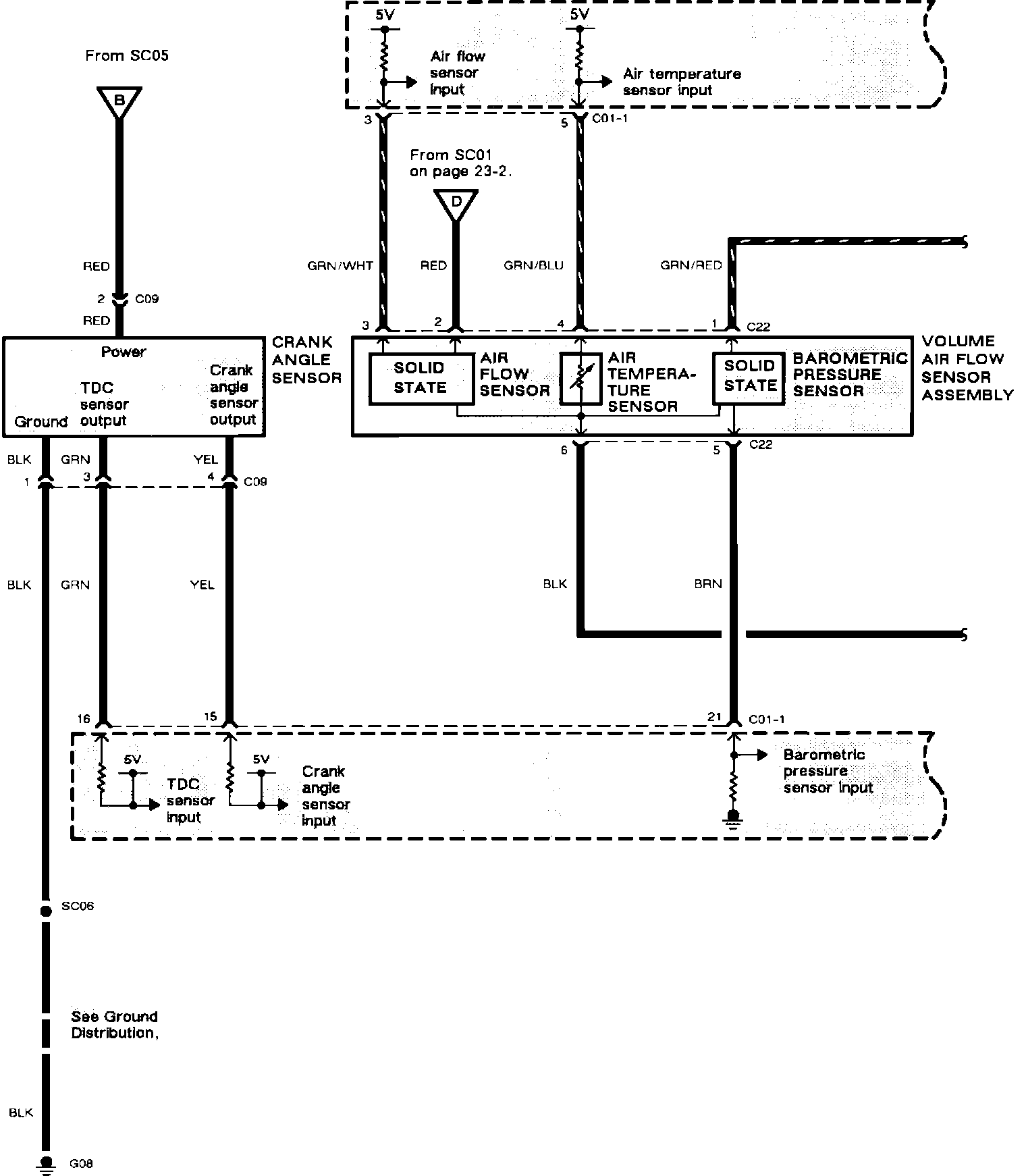

PART 6 OF 8

Multi-port Fuel Injection:

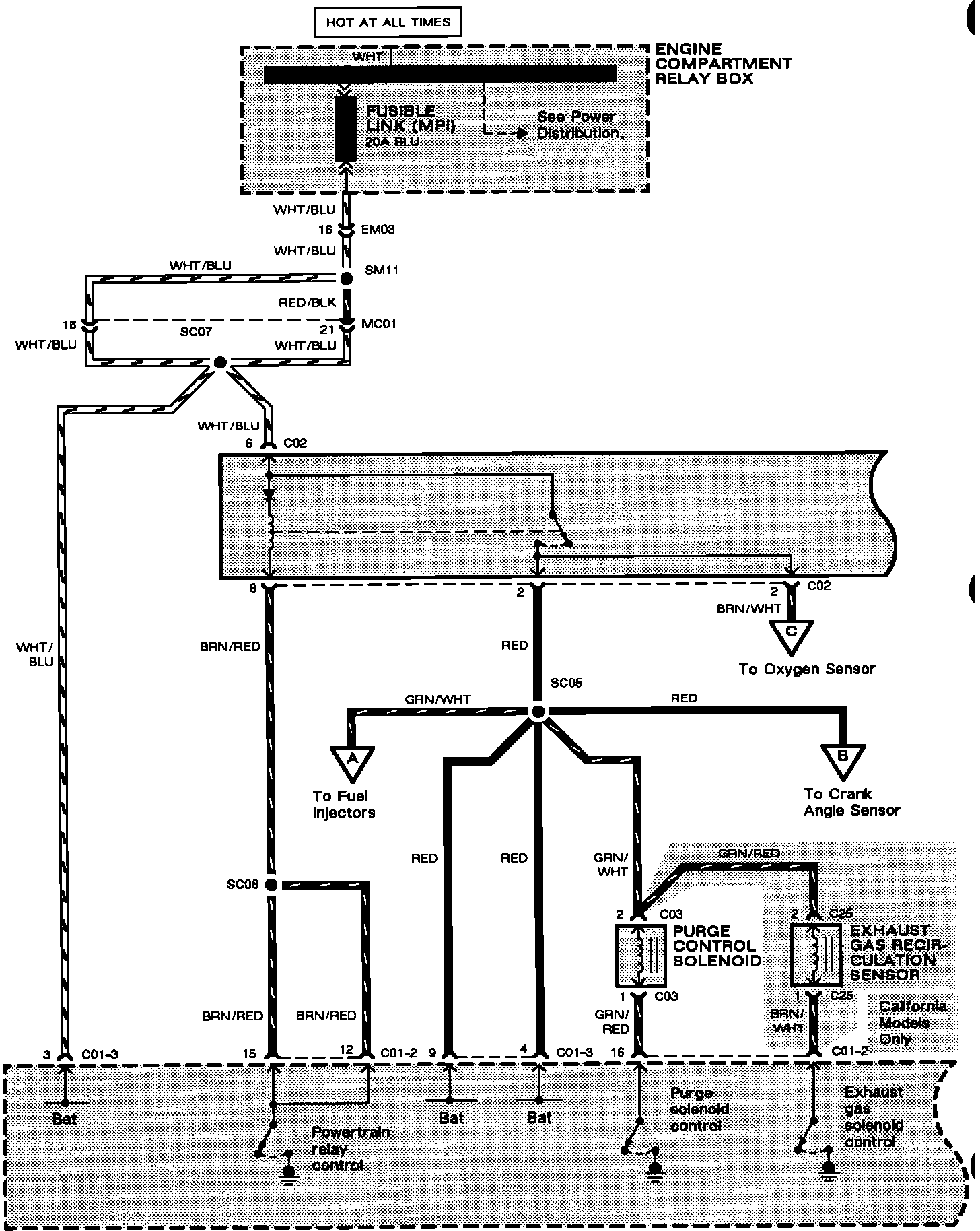

PART 7 OF 8

Multi-port Fuel Injection:

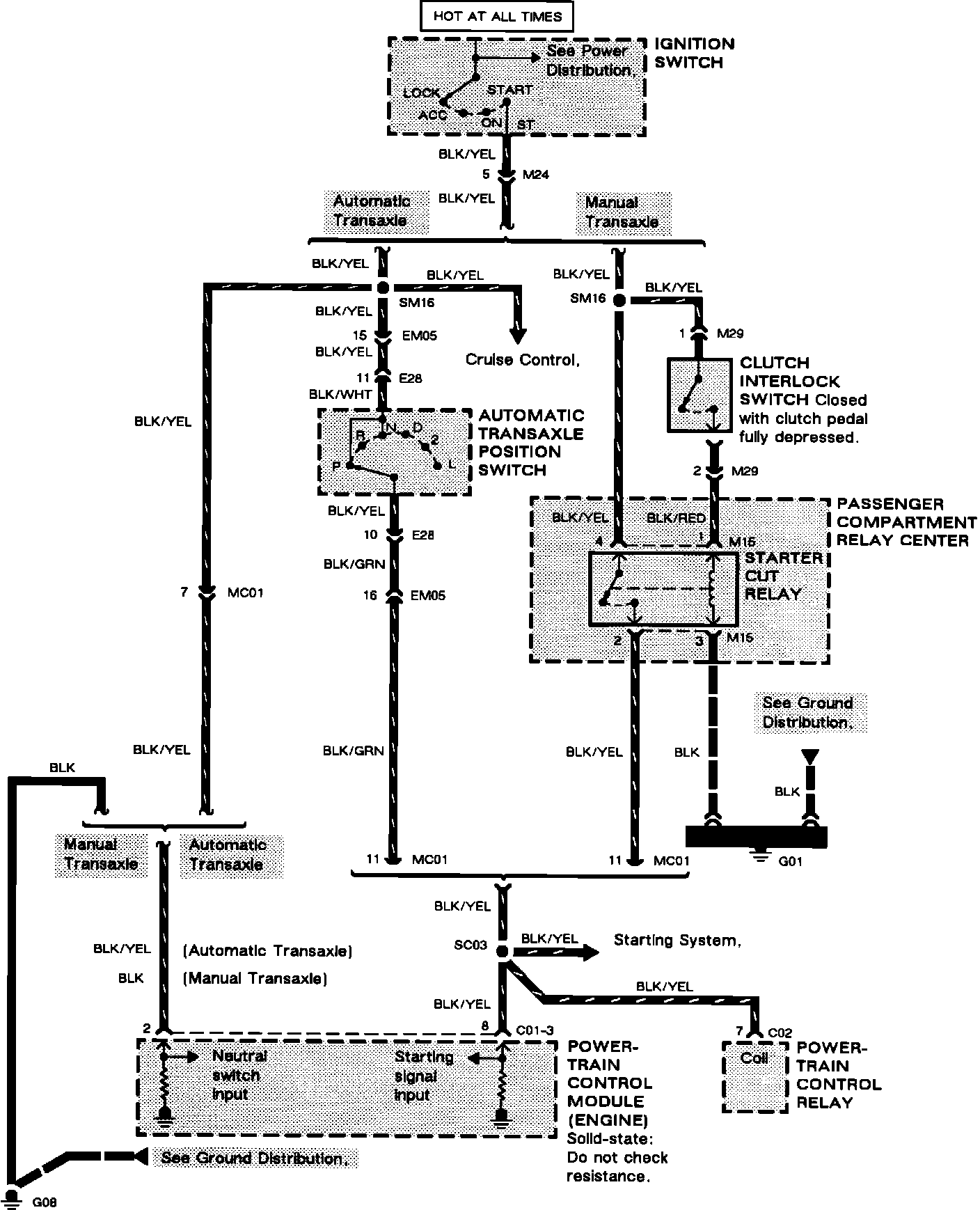

PART 8 OF 8

Multi-port Fuel Injection:






For further information refer to CHASSIS ELECTRICAL DIAGRAMS
