Neutral Safety Switch: Testing and Inspection

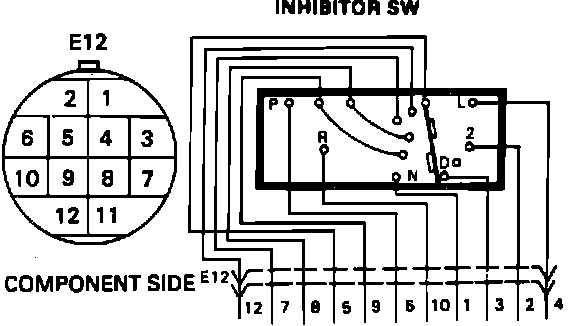

Fig. 10 Testing Inhibitor Switch (N & P Positions):
1.
Disconnect the connector,
Fig. 10. 2.
Check continuity between connector (E12) terminals 5 and 1, 5 and 6 with switch in ``N'' and ``P'' ranges.
3.
If there is no continuity in either position, replace switch.
