Federal Emissions
Engine Coolant Temperature Sensor Location:
LOCATION
The coolant temperature sensor is located in the coolant passage of the intake manifold.
Coolant Temperature Sensor:
CONSTRUCTION
The Coolant Temperature Sensor is a thermistor type sensor.

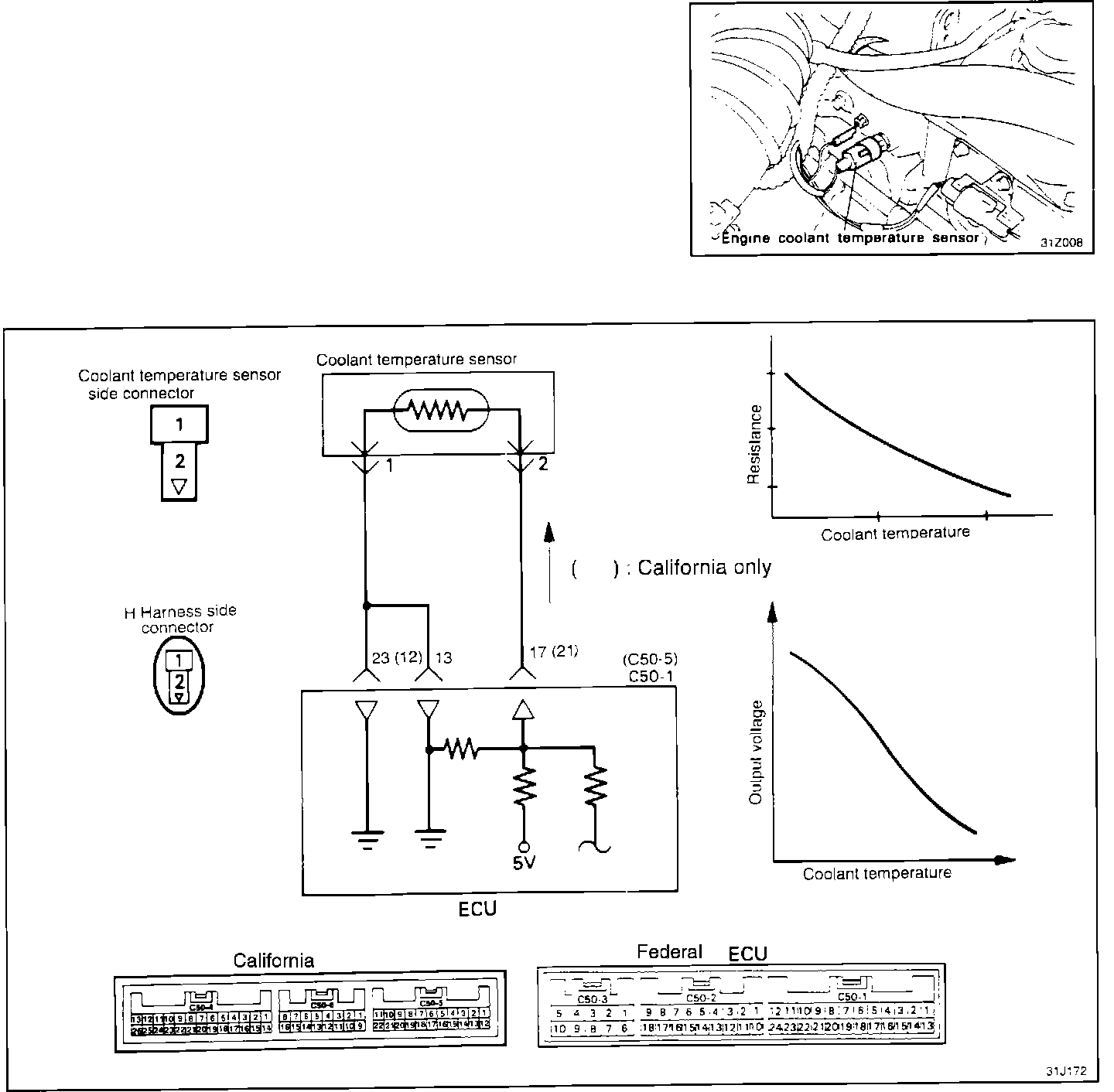

Engine Coolant Temperature Sensor (ECT) Circuit:
OPERATION
As engine temperature increases, sensor resistance decreases. The ECU monitors engine temperature by the sensor output voltage and provides optimum fuel enrichment when the engine is cold.
