Ignition Lock - Modification/Operation
Group: BODY ELECTRICALNumber: 93-90-015
Date: OCTOBER, 1993
Model: EXCEL
Subject:
IGNITION KEY LOCK CONTROLS FOR AUTOMATIC TRANSAXLE EQUIPPED EXCELS
DESCRIPTION
The ignition key can be removed only when the automatic transaxle shift lever is in the PARK position.
A new key lock switch (micro switch) has been added to the existing PARK position switch as described below. The ignition key will be released only when the key lock solenoid is "OFF" and the ignition key lock switch is "ON."

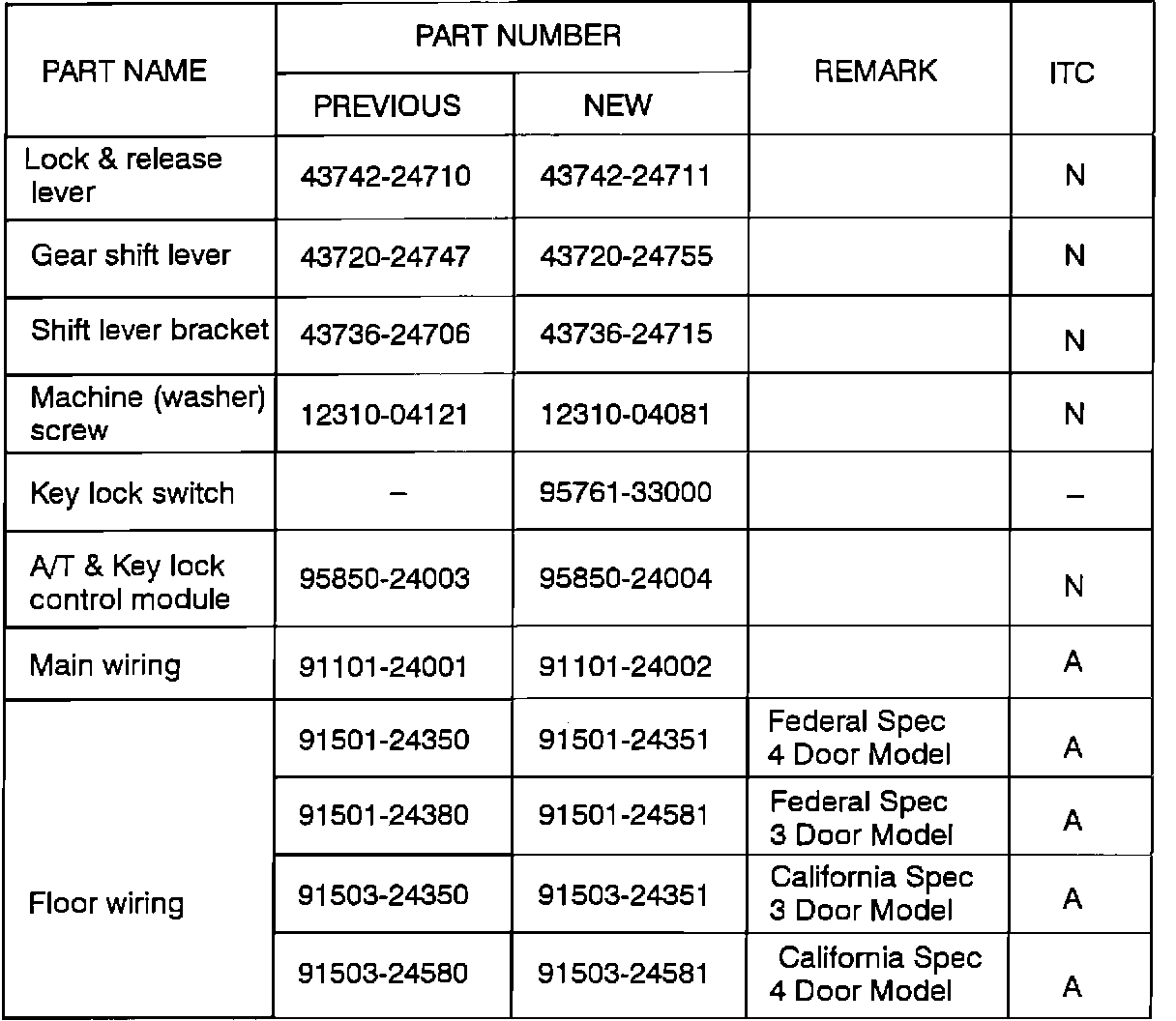

PART INFORMATION
EFFECTIVE PRODUCTION DATE
Date: April 12, 1993
VIN: VD12JP1U248505 (3 Door)
VF12J0PU786814 (4 Door)
INTERCHANGEABILITY
* ATTACHED: Schematics for A/T & Key Lock Controls
AUTOMATIC TRANSAXLE AND KEY LOCK CONTROLS
TIMING CHART

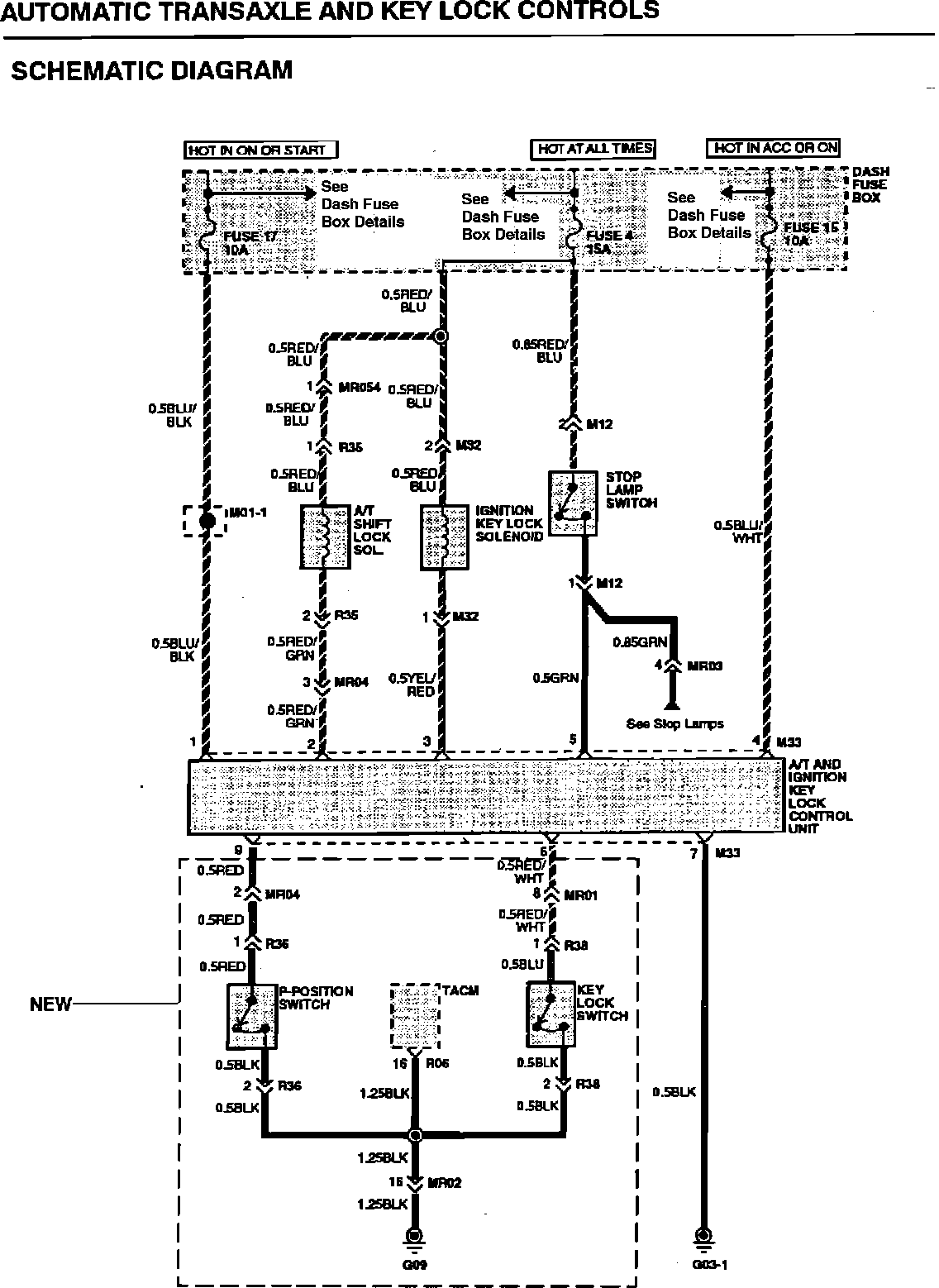

SCHEMATIC DIAGRAM
