A/C Signal: Testing and Inspection

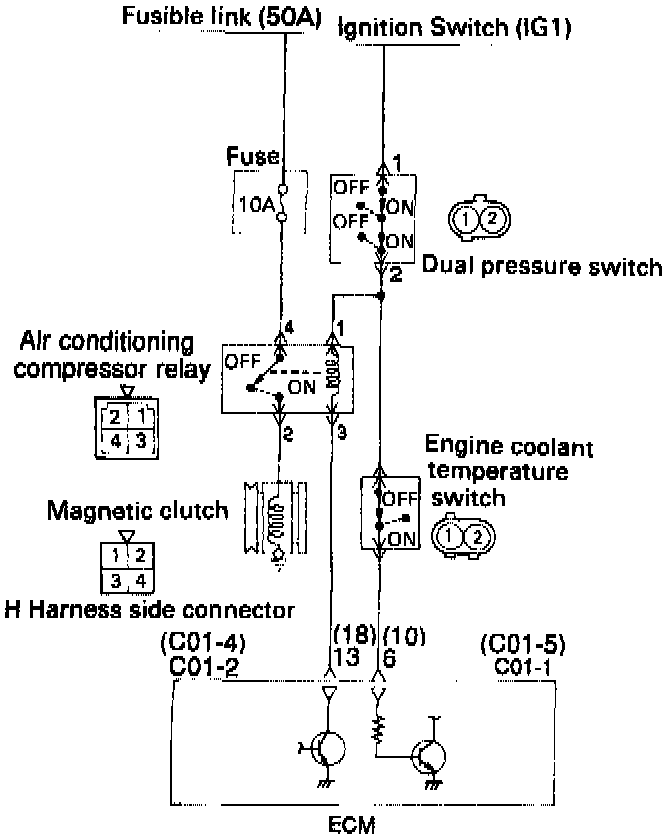

Circuit Diagram Troubleshooting Hints If the air compressor magnet clutch is not activated when the air conditioning switch is turned on during idling, faulty air conditioning control system is suspected.

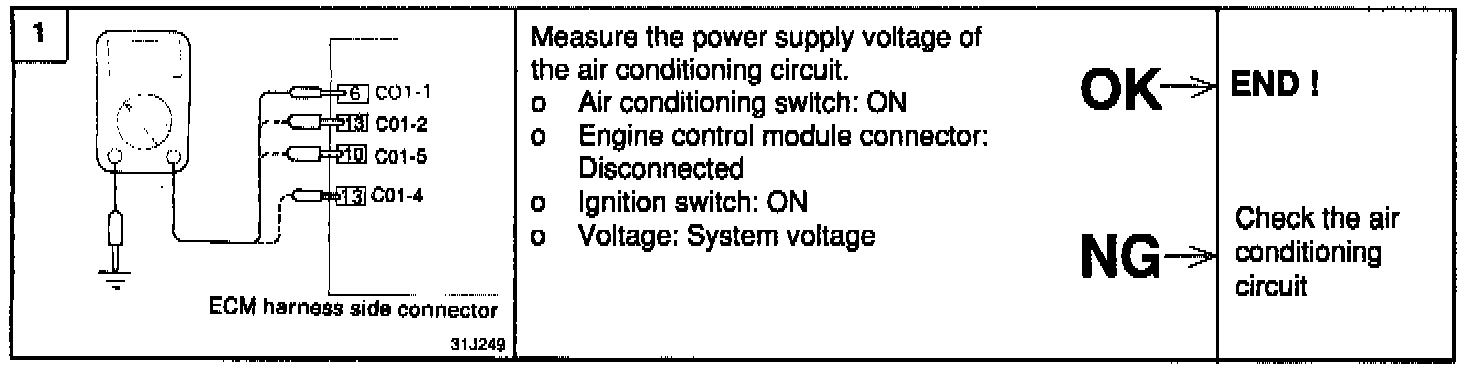

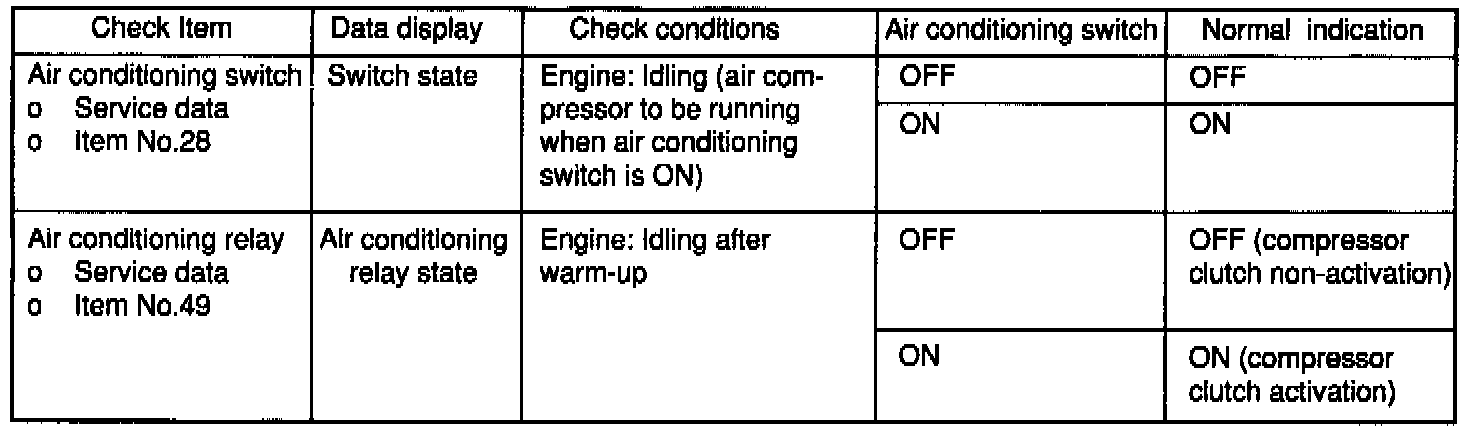

Using Scan Tool Harness Inspection Procedure
