EGR Temperature Sensor



EXHAUST GAS RECIRCULATION TEMPERATURE SENSOR

Description
The exhaust gas recirculation temperature sensor converts the temperature of exhaust gas recirculation gas downstream from the exhaust gas recirculation valve to voltage and inputs it to the engine control module. The engine control module judges the condition of the exhaust gas recirculation by this signal. if there is abnormal condition, the engine warning light is turned on to notify the driver.

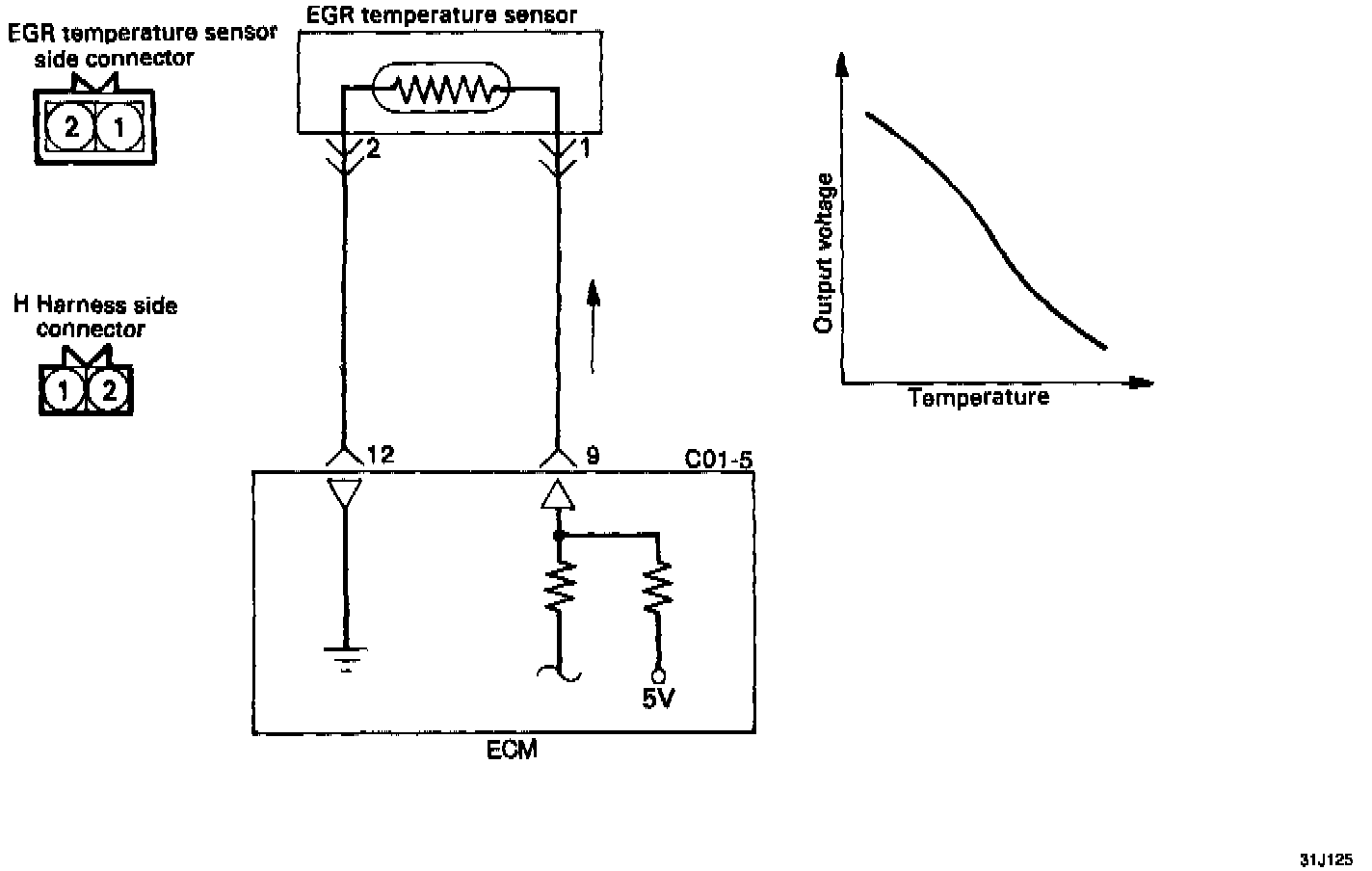

Circuit Diagram

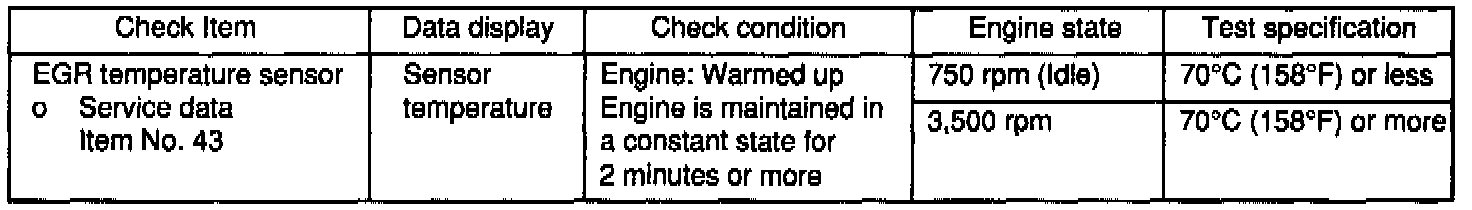

Using scan Tool

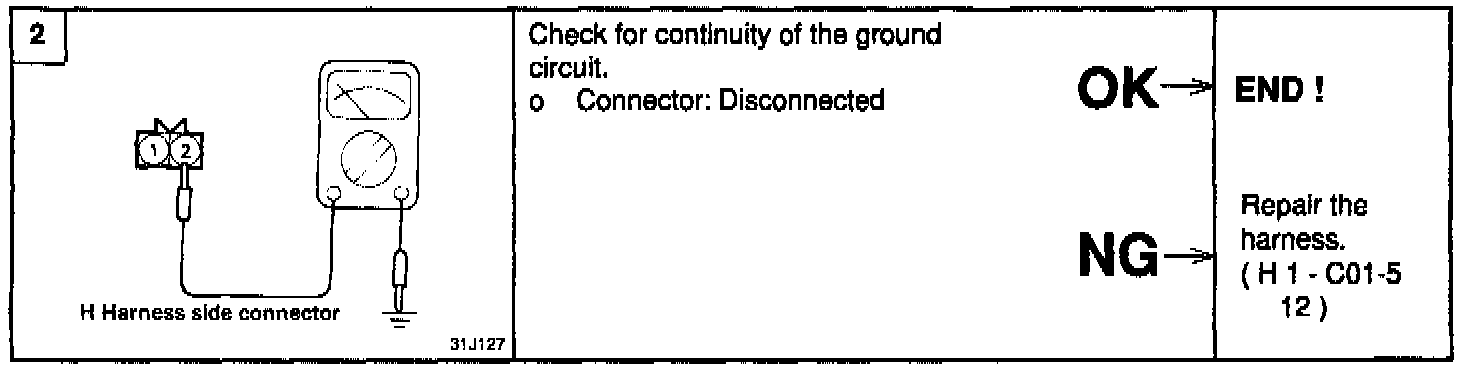

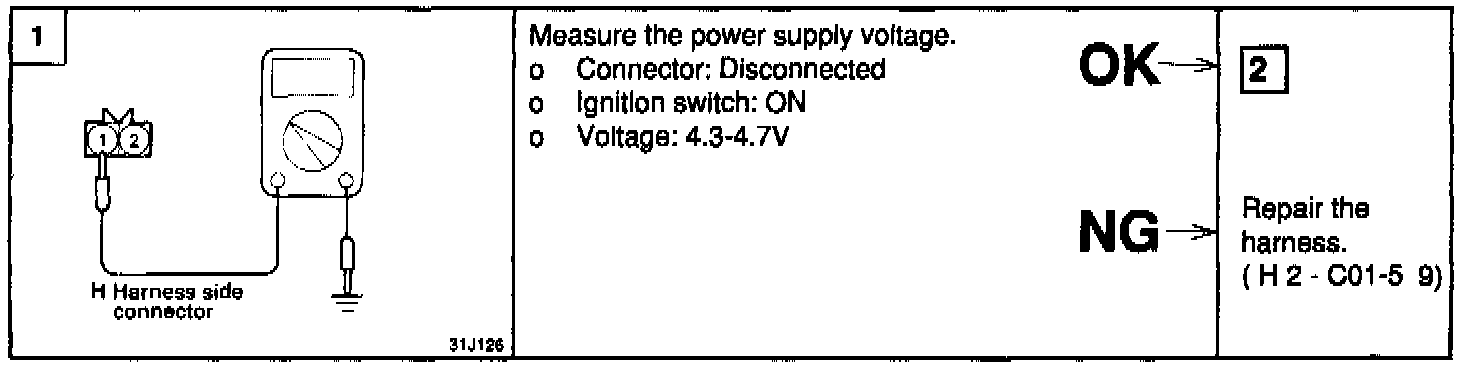

Harness Inspection
