Transmission Temperature Sensor
1.

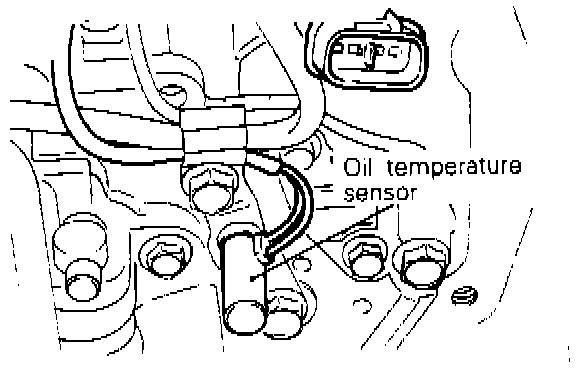

Disconnect the transmission temperature sensor connector.
2.

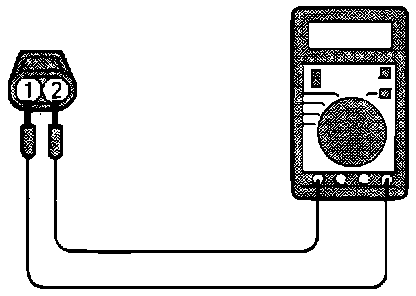

Measure the resistance between the sensor connector terminals.
Resistance:
At 20°C ( 68°F): 8.0-8.2 ohms
At 100°C (212°F): 0.57-0.69 ohms 3.
If the resistance within tolerance, replace the transmission temperature sensor.
