System Relay: Locations

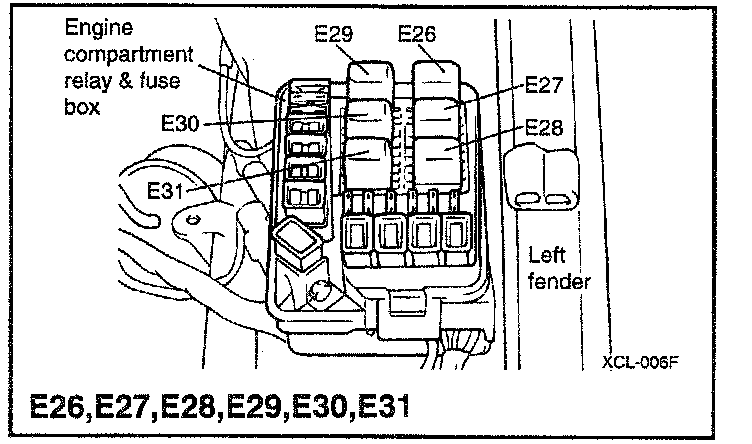

E26 - Radiator fan relay
E27 - Headlamp relay
E28 - A/C relay
E29 - Horn relay
E30 - Tail lamp relay
E31 - Condenser fan relay
