Fuel Filter: Service and Repair

REMOVAL

In-line Fuel Filter Removal:

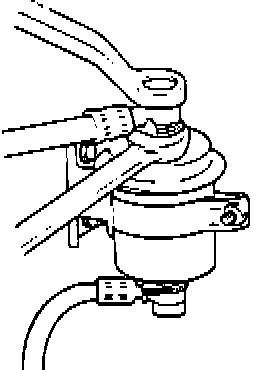

1. Remove the upper eye bolt while holding the fuel filter nut securely and remove the high pressure fuel hose.

CAUTION: Be sure to reduce the fuel pressure before disconnecting the fuel line and hose, otherwise fuel will spill out. Cover the hose connection with a shop towel to prevent splashing of fuel that could be caused by residual pressure in the fuel line.

2. Remove the lower eye bolt while holding the fuel filter nut assembly.

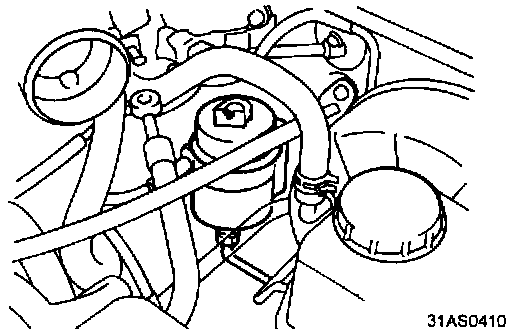

3. Remove the fuel filter mounting bolts, then remove the fuel filter from the bracket.

INSTALLATION

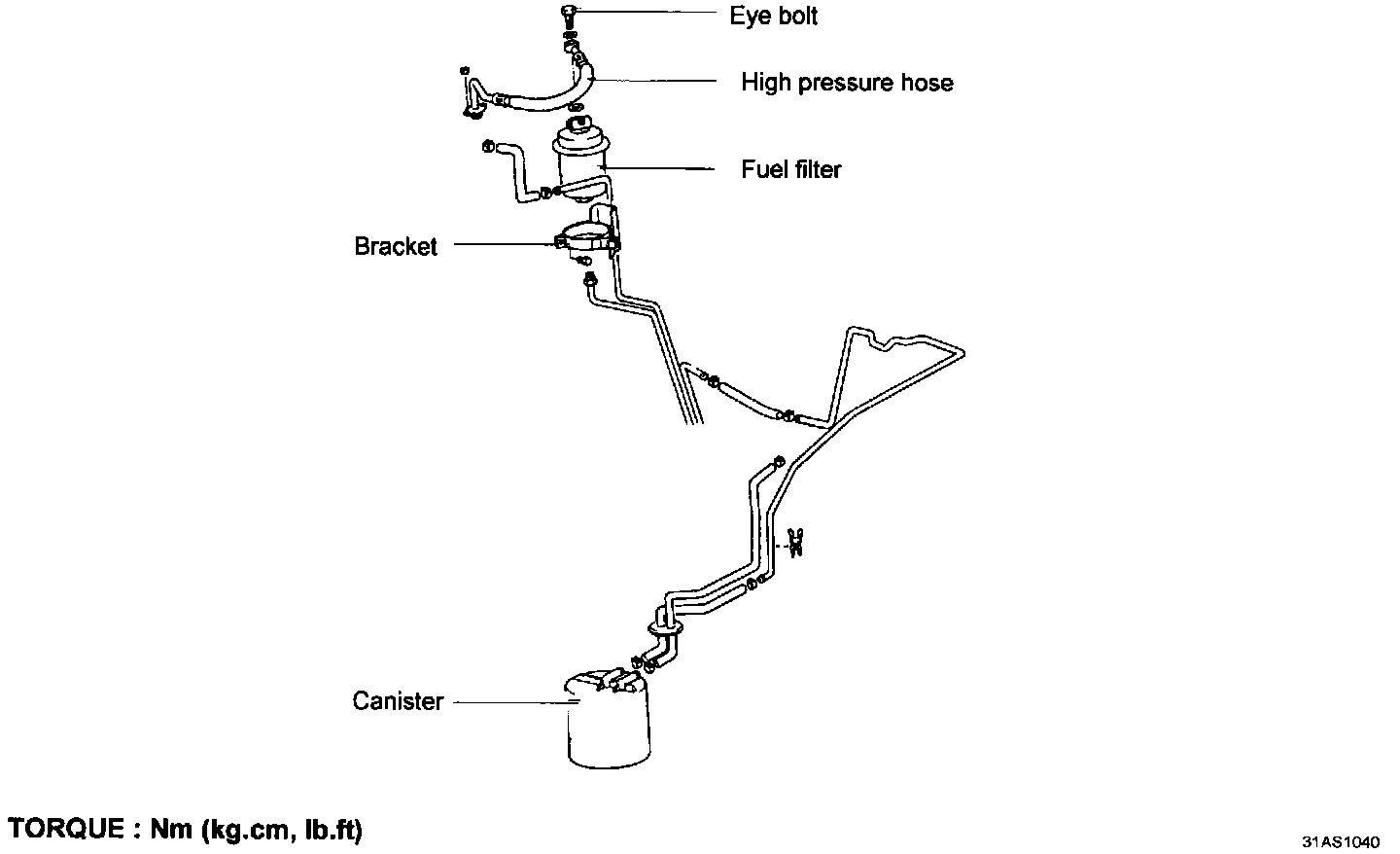

1. If the fuel line has a stepped section, connect the fuel hose to the line securely, as shown in the illustration.
2. If the fuel line does not have a stepped section, connect the fuel hose to the line securely.
3. Install the fuel filter, and tighten the fuel filter bracket.

In-line Fuel Filter:

4. Insert the main line on the filter and tighten the eye bolts while holding the fuel filter nuts.
5. Install the clips and make sure that they do not interfere with other components.
