A/C Signal: Testing and Inspection

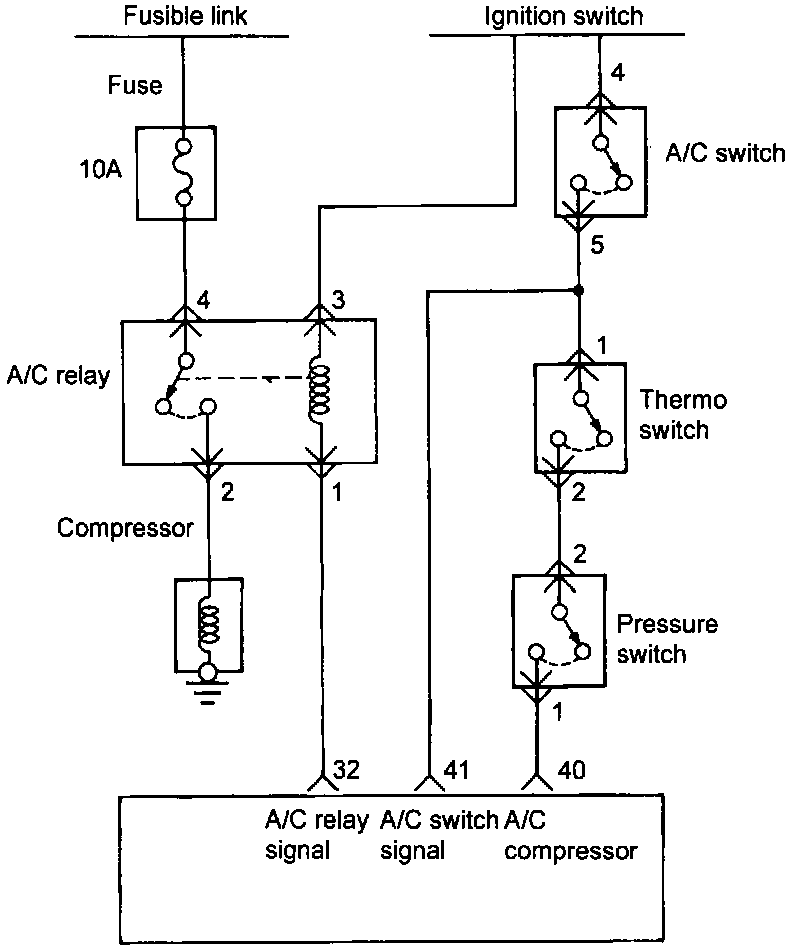

CIRCUIT DIAGRAM

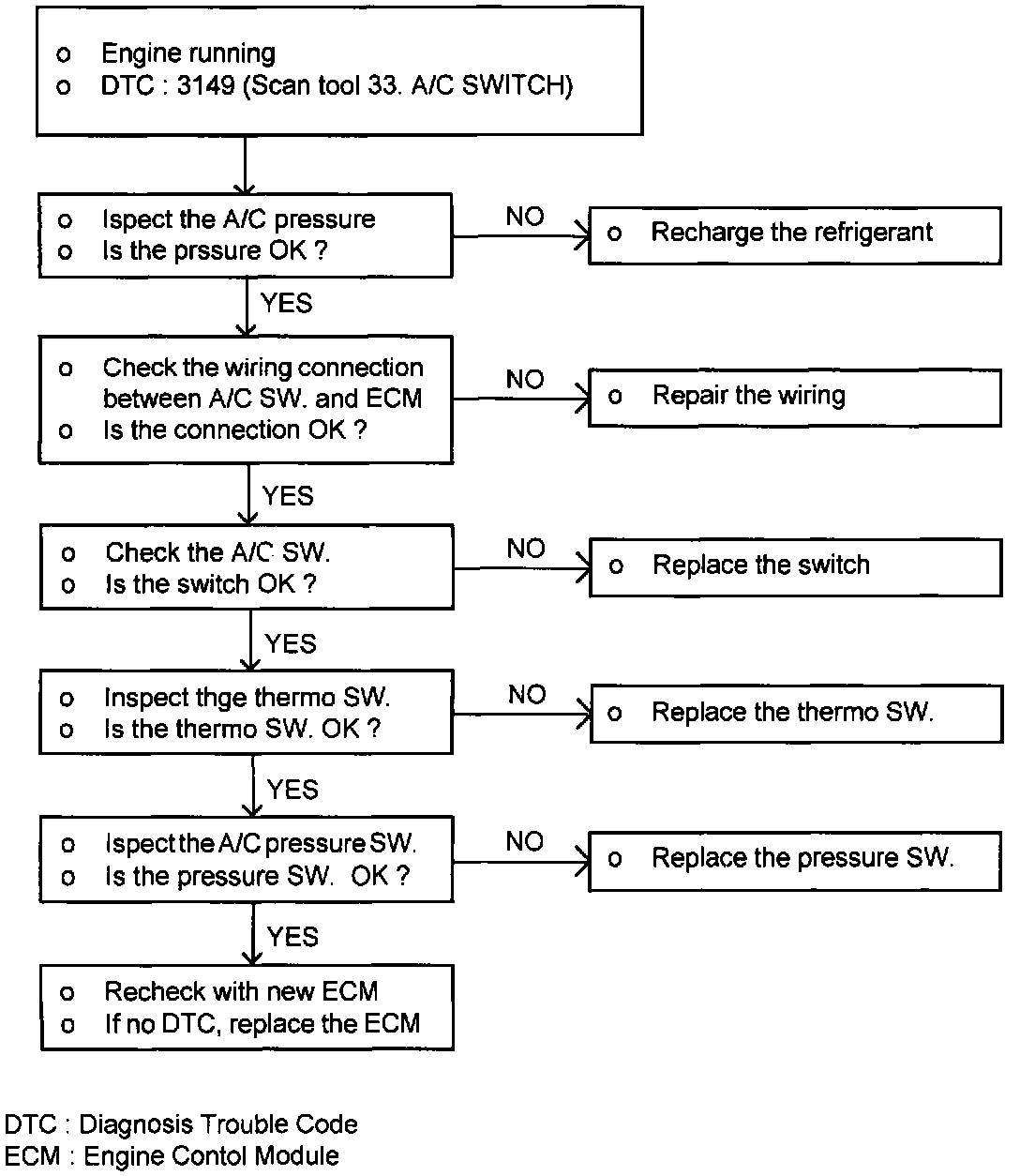

TROUBLESHOOTING PROCEDURES

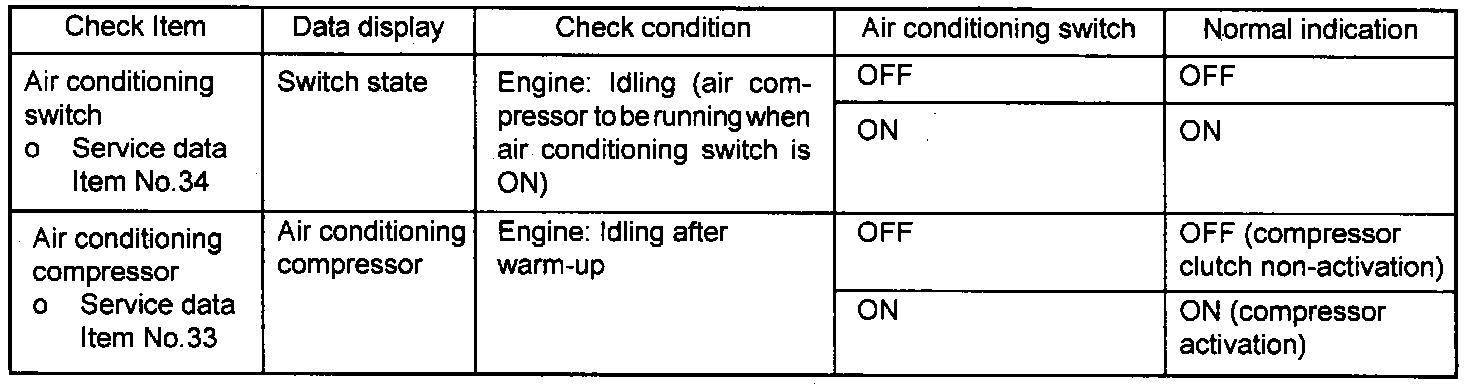

USING SCAN TOOL

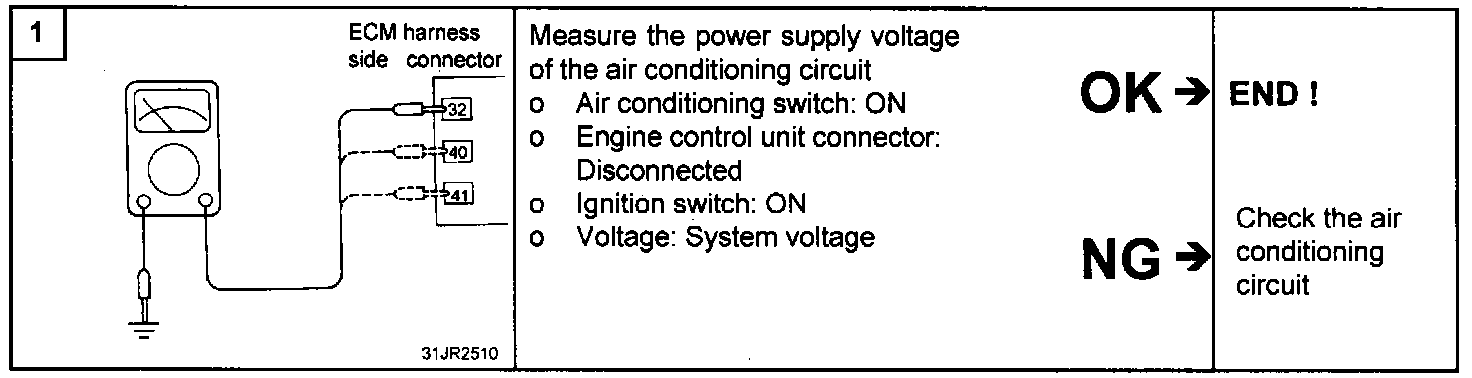

HARNESS INSPECTION

TROUBLESHOOTING HINTS
If the air compressor magnet clutch is not activated when the air conditioning switch is turned on during idling, faulty air conditioning control system is suspected.
