Transmission Position Sensor/Switch: Testing and Inspection

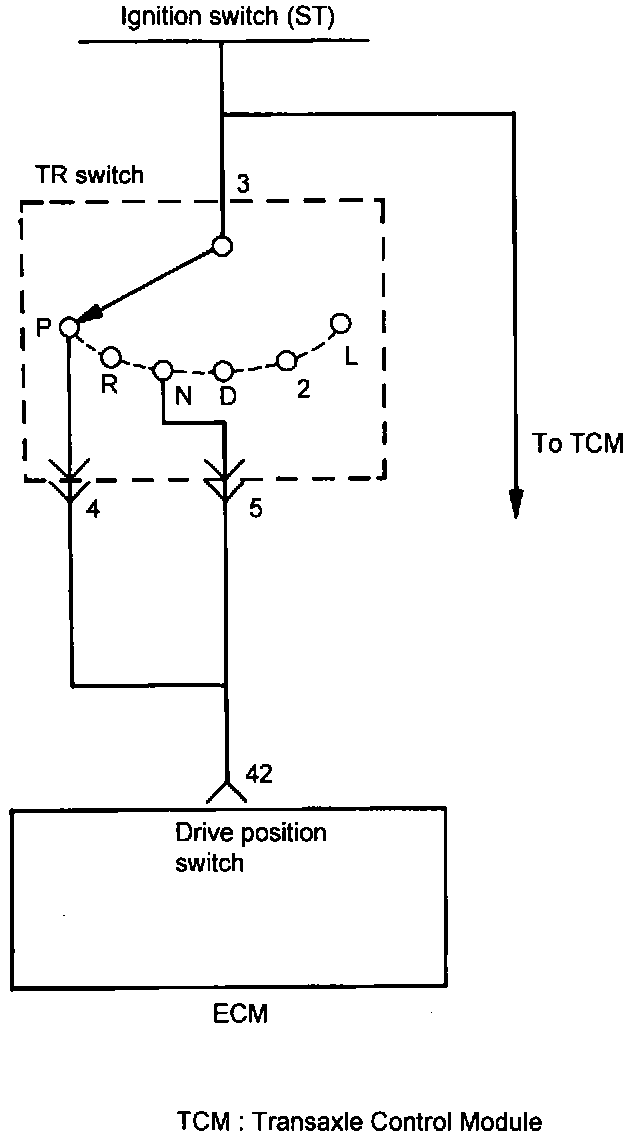

CIRCUIT DIAGRAM

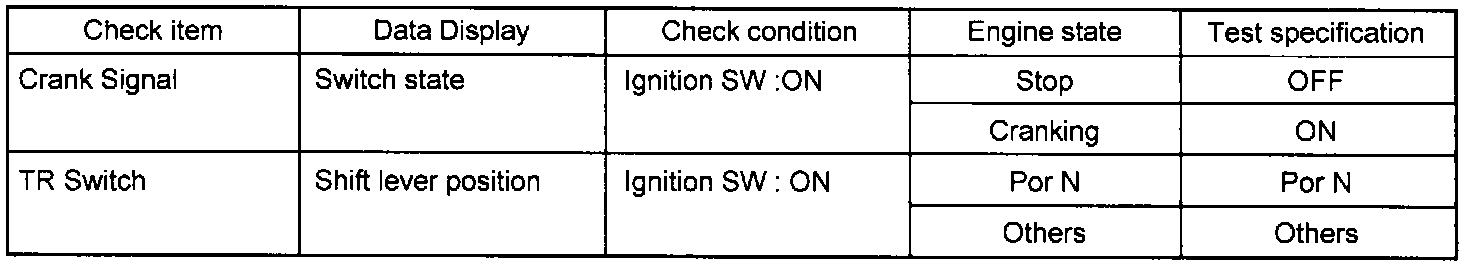

USING SCAN TOOL

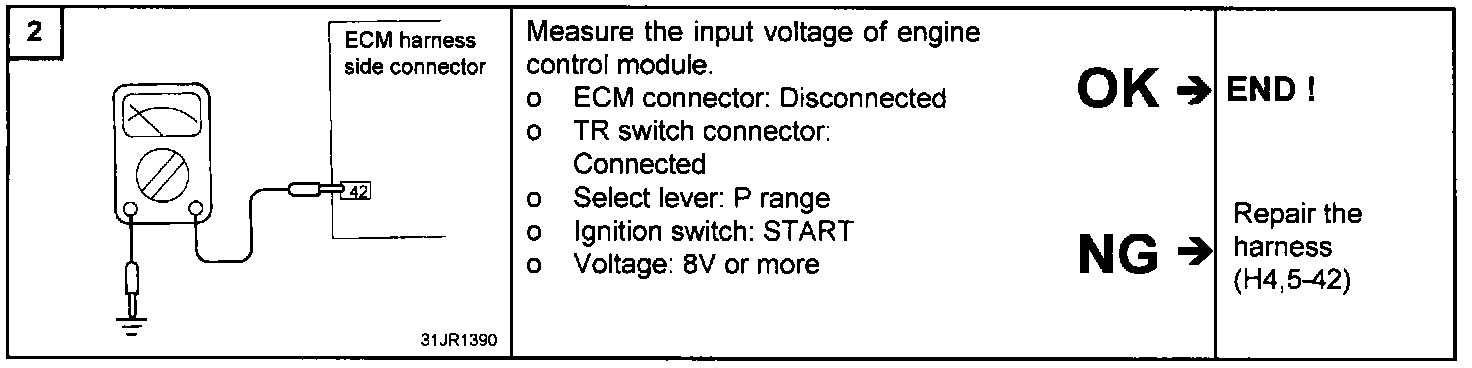

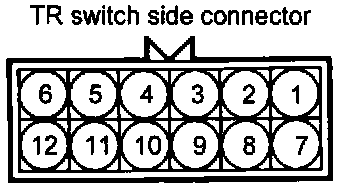

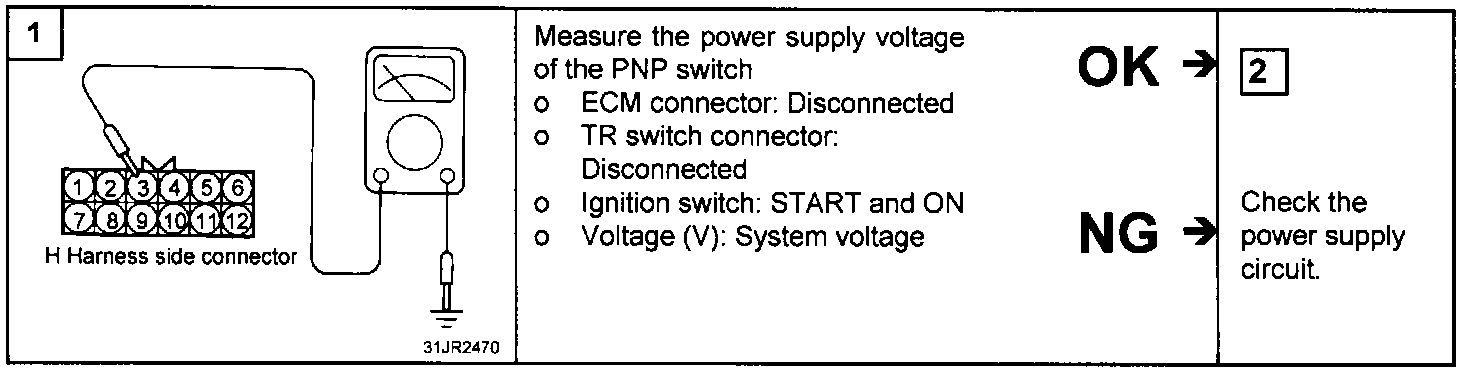

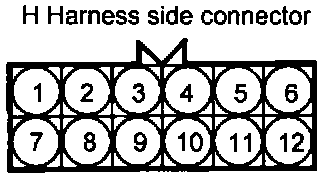

HARNESS INSPECTION

TROUBLESHOOTING HINTS
If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check for the control cable adjustment.
