Vehicle Speed Sensor: Testing and Inspection

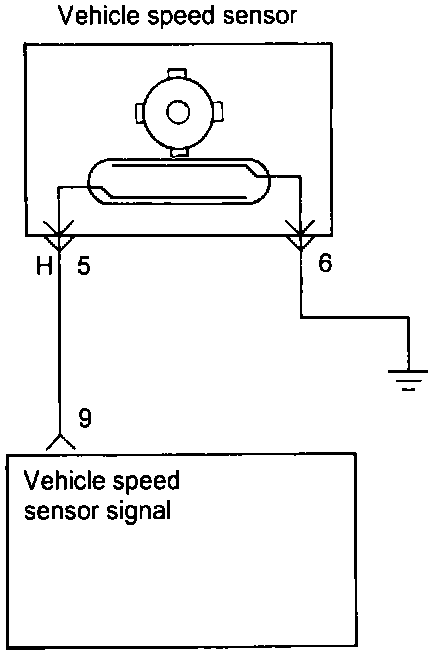

CIRCUIT DIAGRAM

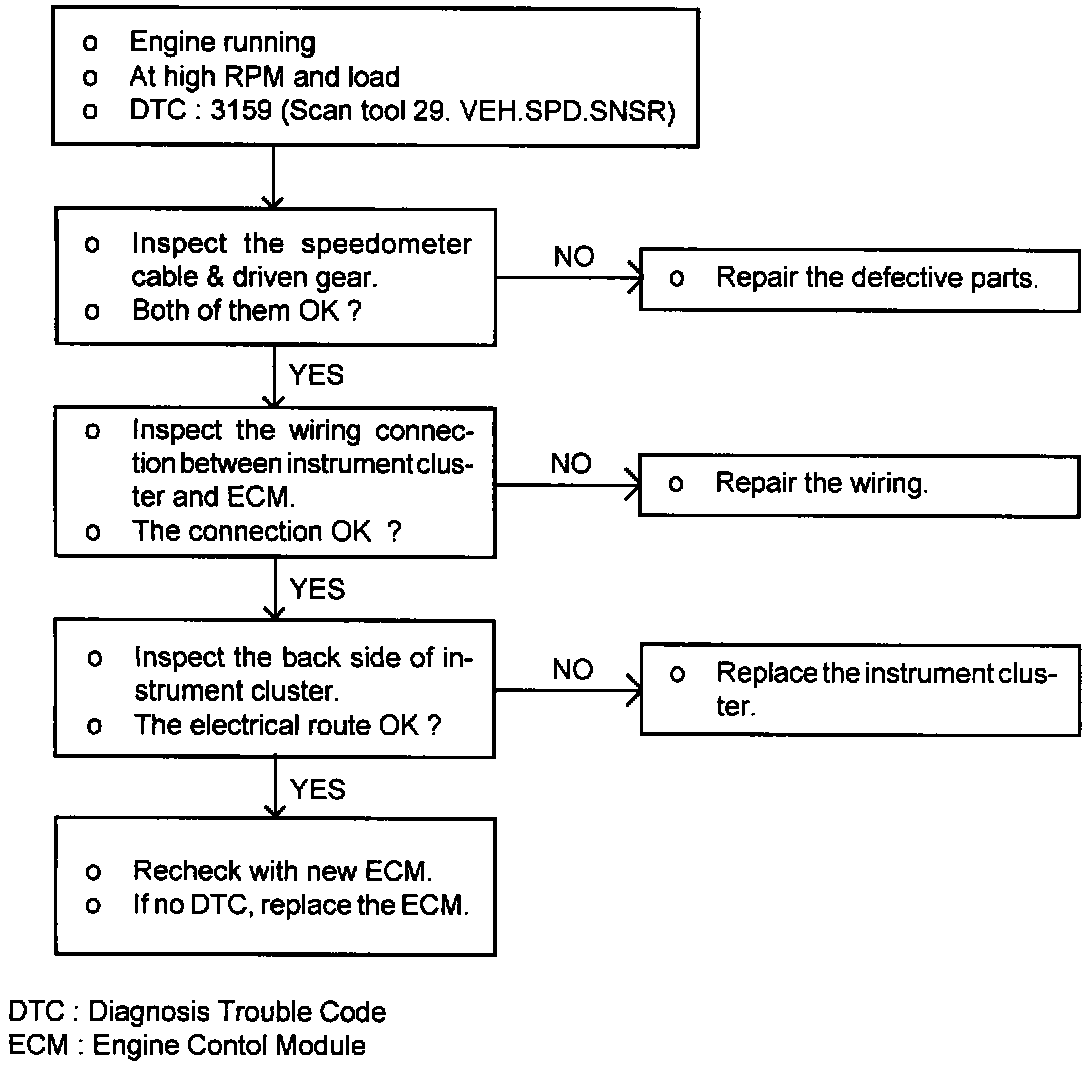

TROUBLESHOOTING PROCEDURES

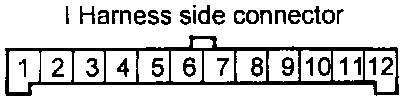

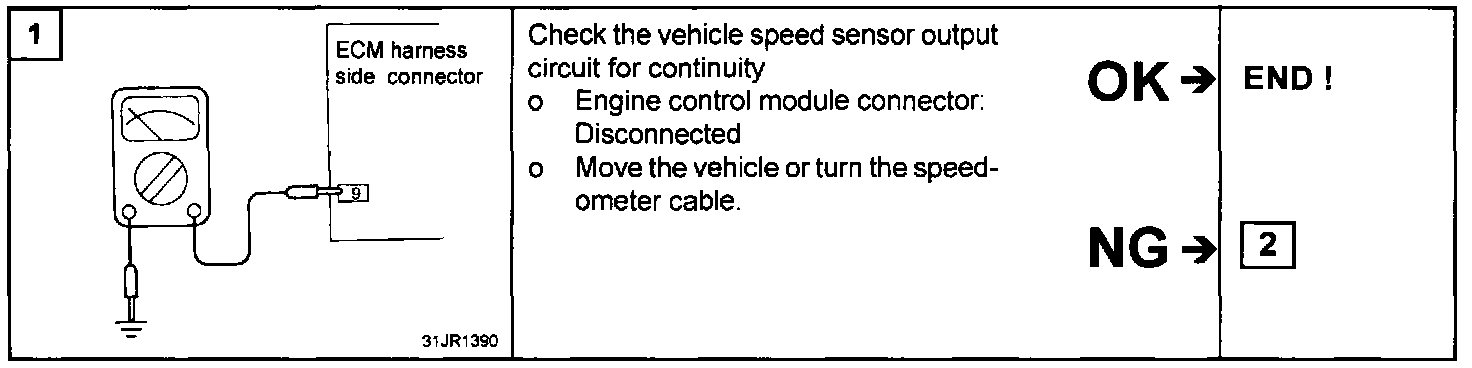

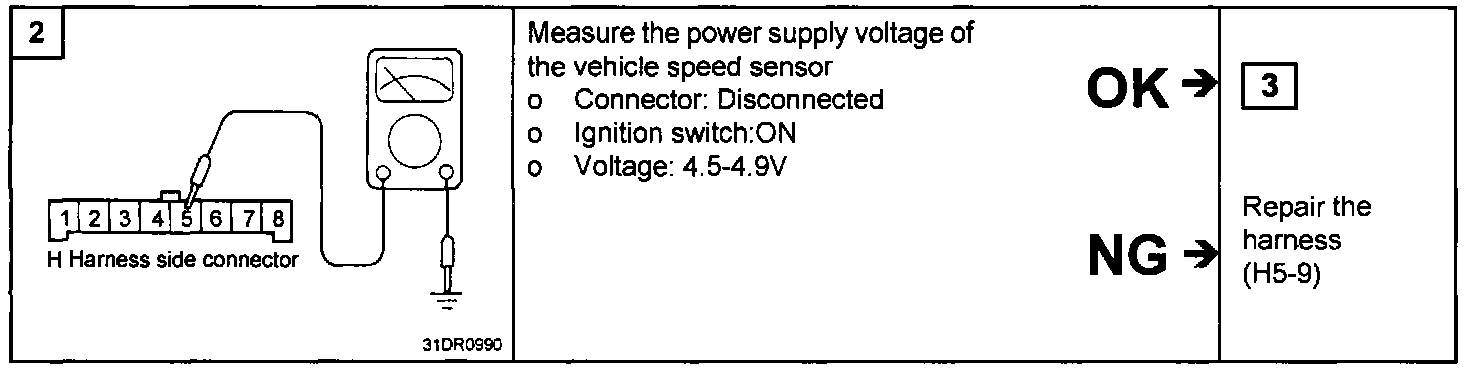

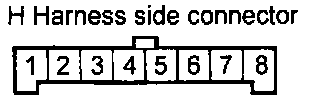

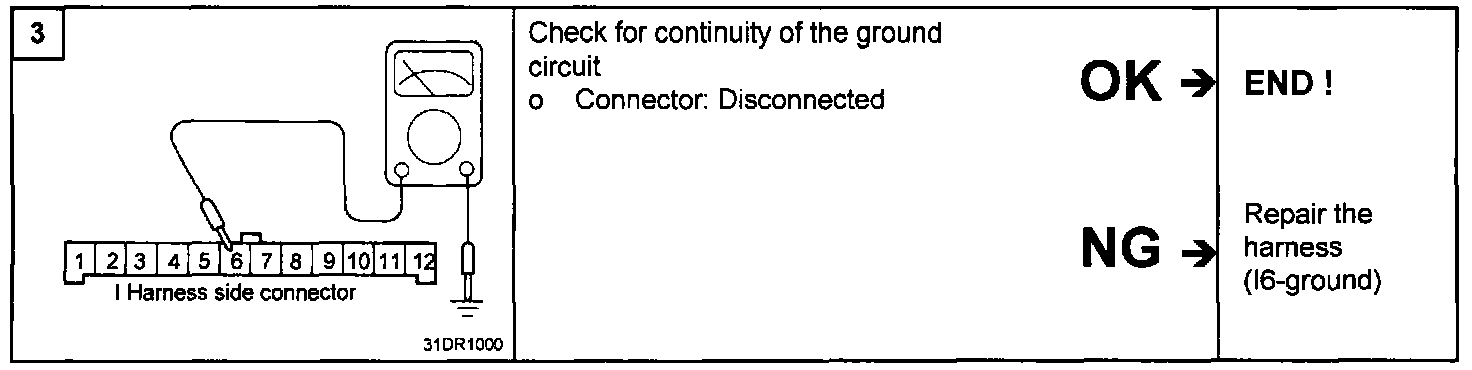

HARNESS INSPECTION PROCEDURES

TROUBLE SHOOTING HINTS
If there is an open or short circuit in the vehicle speed sensor signal circuit, the engine may stall when the vehicle is decelerated to stop.
