Control Harness

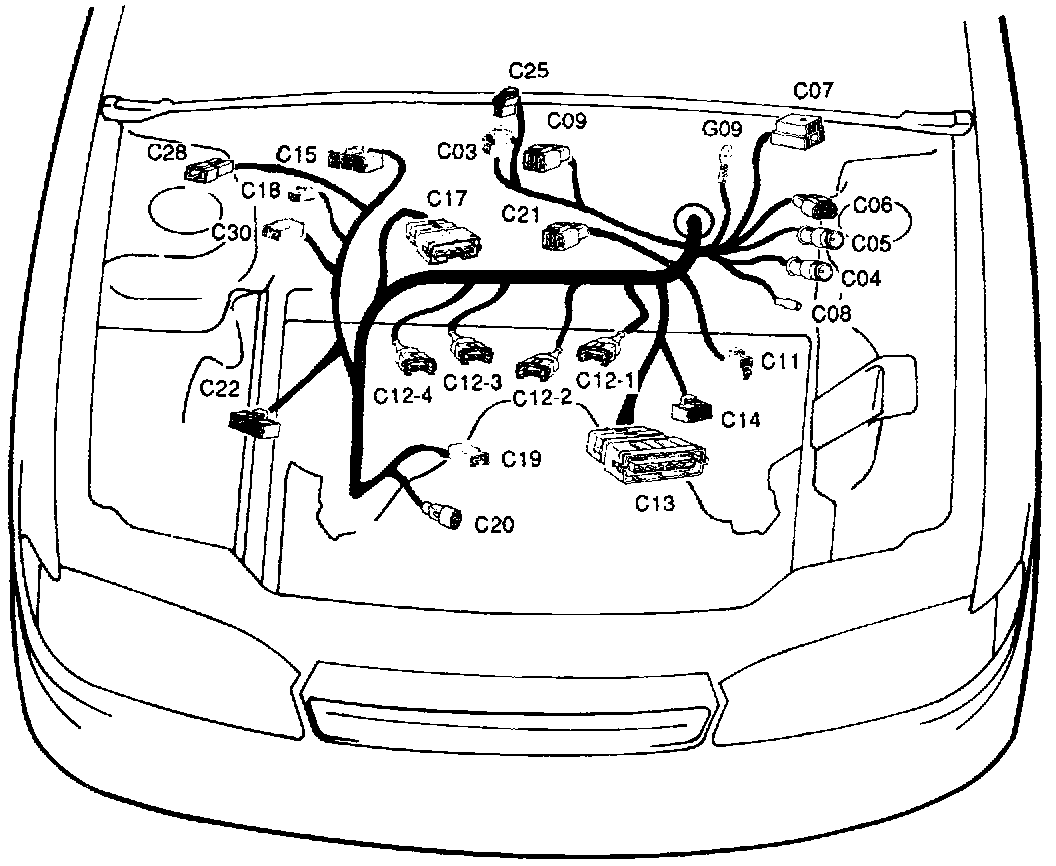

Control Harness:




Control Harness:





C03 Purge solenoid
C04 Ignition timing adjuster
C05 Fuel pump checker
C06 Dual pressure switch (A/C)
C07 Relay with diode
C08 A/C compressor
C09 Crankshaft position sensor
C11 Noise filter
012-1 Injector #1
C12-2 Injector #2
C12-3 Injector #3
C12-4 Injector#4
C13 Power transistor
C14 Ignition coil
C15 ISC motor
C17 Throttle position sensor
C18 Starter solenoid extension
C19 Coolant temp gauge
C20 Coolant temp sensor
C21 Front oxygen sensor
C22 Volume air flow sensor
C25 EGR solenoid
C28 EGR temp sensor
C30 Idle switch
C01-1 ECM
C01-2 ECM
C01-3 ECM
C02 Control relay
MC01 Connection with MAIN wiring harness
