Vehicle Views

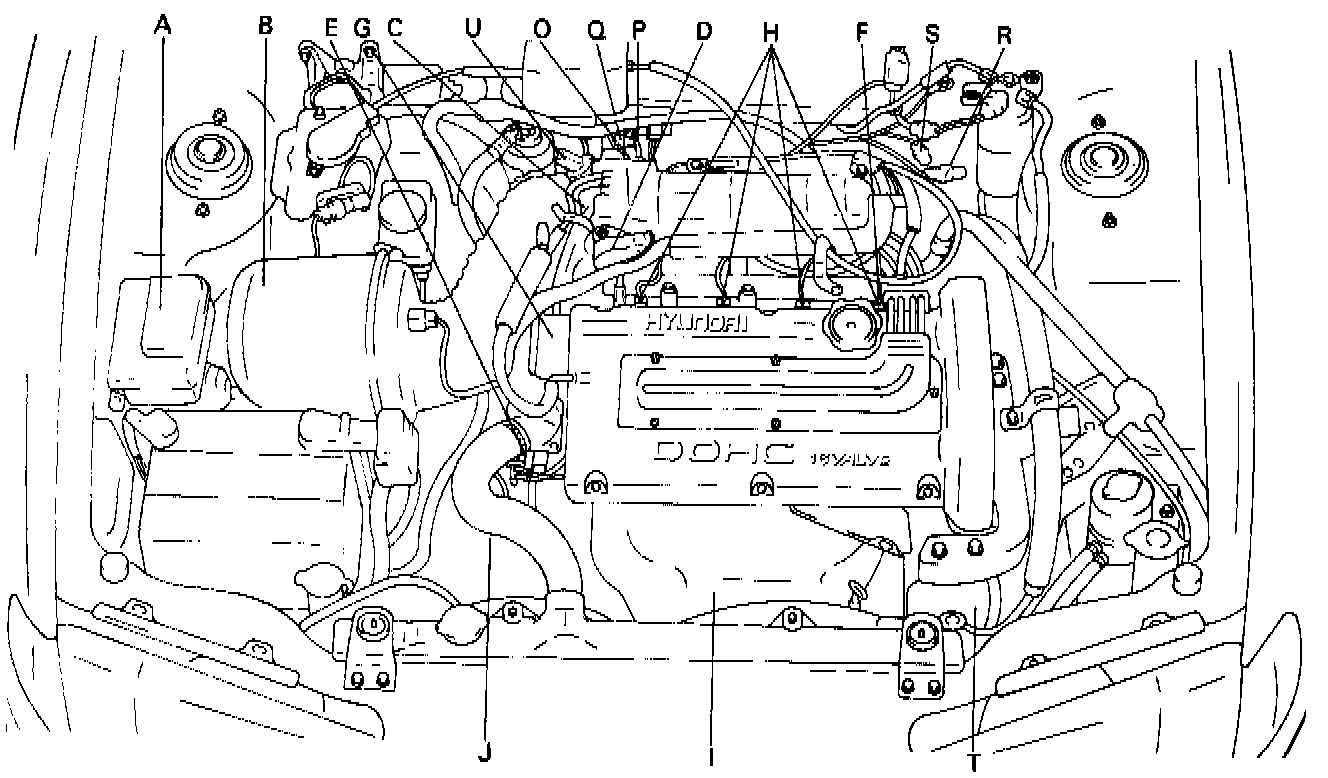

ENGINE COMPARTMENT





A. Air conditioning relay
B. Volume air flow sensor (Including intake air temp. sensor and barometric pressure sensor)
C. ISO motor (Stepper motor)
D. Throttle position sensor (TP Sensor)
E. Engine coolant temperature sensor
F. Ignition Power transistor
G. Crankshaft position (CKP) sensor and camshaft position (CMP) sensor
H. Injectors
I. Heated oxygen sensor(HO2S)
J. Transaxle range (TR) switch
0. EGR temperature sensor (For California only)
P. EGR solenoid valve (For California only)
Q. EVAP Canister Purge Solenoid Valve
R. Fuel pump check terminal
S. Ignition timing adjustment terminal
T. Power steering oil pressure switch
U. Idle position switch

INSTRUMENT PANEL





K. MFI control relay
L. Data link connector
M. Vehicle speed sensor
N. Engine control module (ECM)
