Repair and Diagnosis: Application and ID

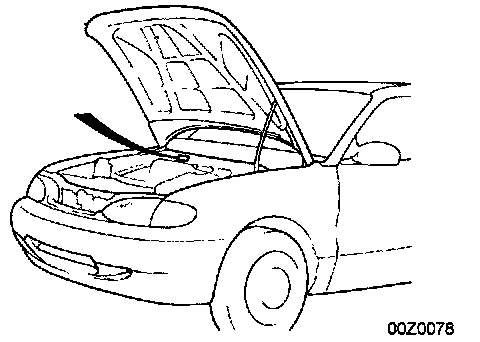

VEHICLE IDENTIFICATION NUMBER LOCATION
The vehicle identification number (V.I.N.) is stamped on the upper right side of the cowl top front panel.

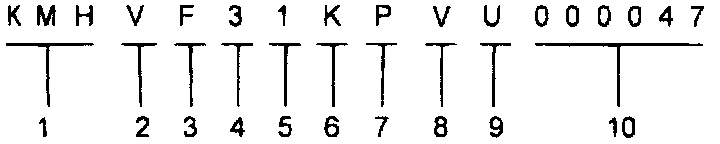

VEHICLE IDENTIFICATION NUMBER
1. World manufacture's identifier code KMH - Hyundai Motor Co., Korea
2. Drive line type
- V-For LHD
3. Body Type
- F-4 Door sedan
- D-3 Door sedan
4. Body style & version
- 1-Standard
- 2-Deluxe
- 3-Super deluxe
5. Restrain type
- 1-Active system
- 2-Passive system
6. Engine type
- K-1495 cc
7. Check digit
Mathematically determined to validate frame numbers
8. Model year
- T-1996 V-1997 W-1998
9. Plant code
- U-Ulsan plant
10. Serial number 000001 through 999999
