Harness Inspection
IGNITION COIL When the ignition power transistor is turned ON by the signal from the ECM, It send the signal to the
ignition coil, then primary current is shut off and a high voltage is induced in the secondary coil.

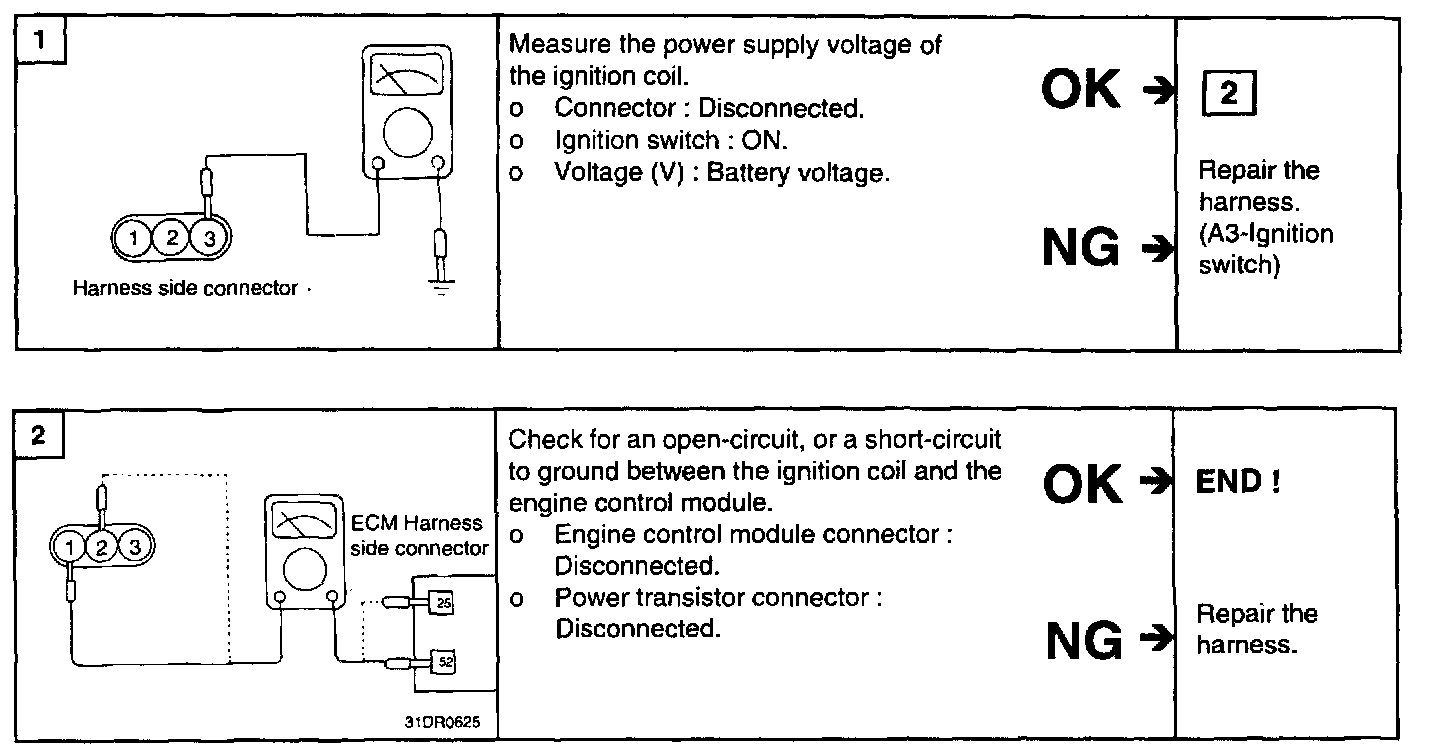

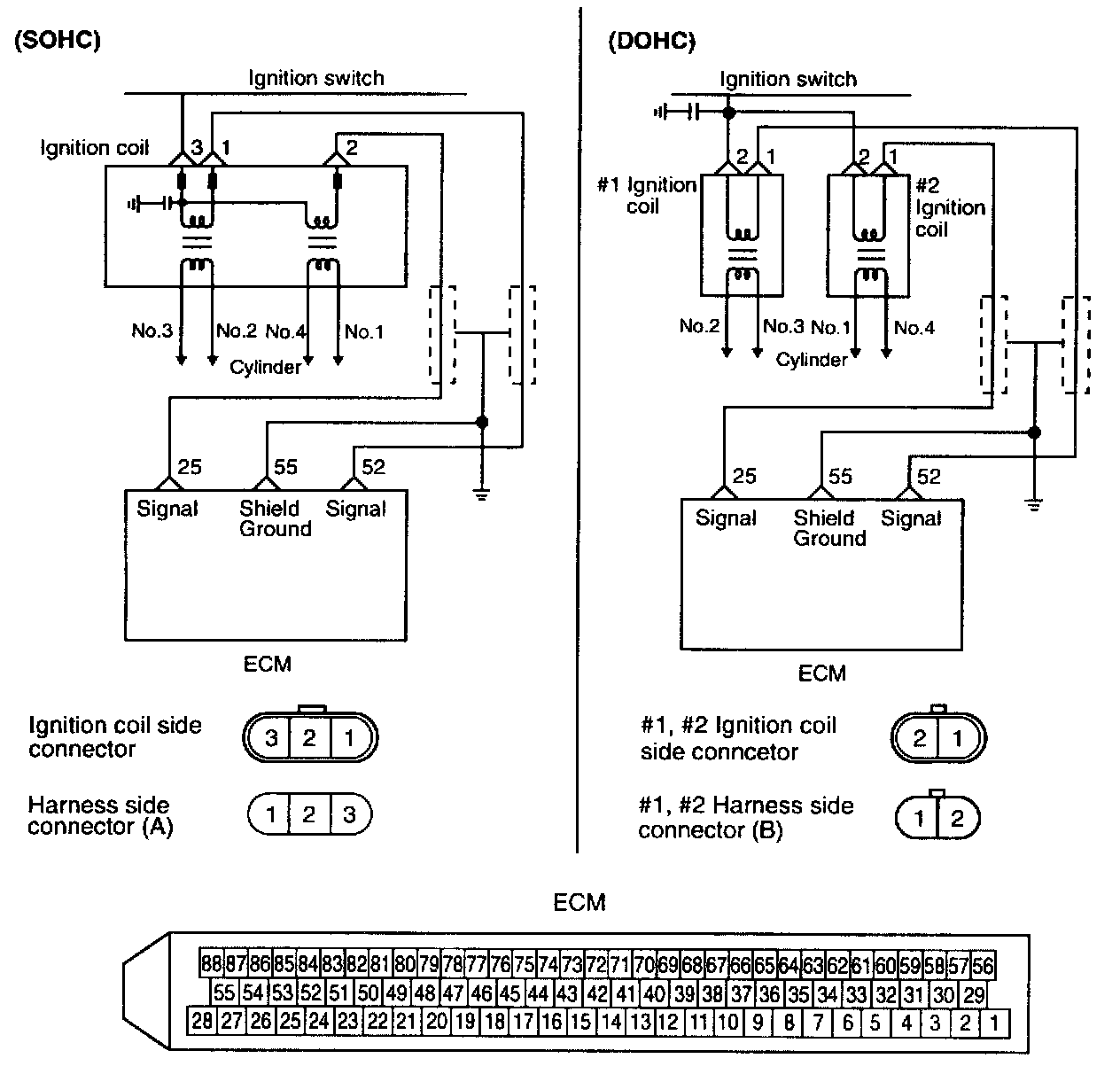

CIRCUIT DIAGRAM HARNESS INSPECTION PROCESSOR
