Vehicle Identification Number

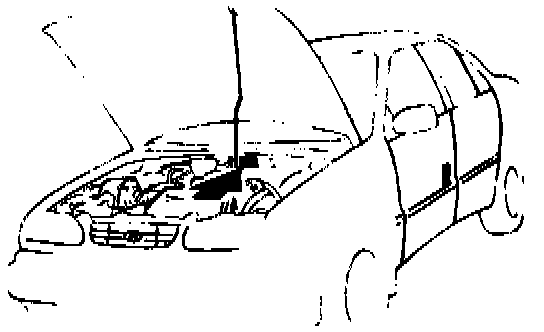

VEHICLE IDENTIFICATION NUMBER LOCATION
The Vehicle Identification Number (V.I.N.) is stamped on the upper right side of the cowl top front panel.

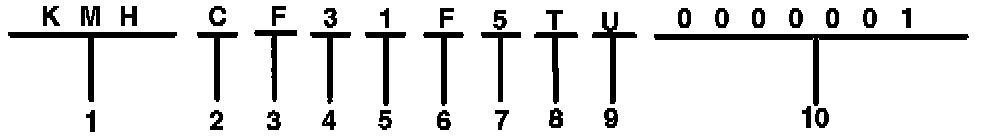

VEHICLE IDENTIFICATION NUMBER
1. Word manufacture's identifier code
- KMH - Hyundai Motor Co.,
- Korea
2. Drive line type
- C-For LHD
3. Body Type
- F-4 Door sedan
4. Body style & version
- 1-Standard
- 2-Deluxe
- 3-Super deluxe
5. Restraint type
- 1-Active system
- 2-Passive system
6. Engine type
- F-1997 cc
- K-2972 cc V6
7. Check digit
- Mathematically determined to validate frame numbers
8. Model year
- S-1995
- T-1996
- V-1997
9. Plant code
- U-Ulsan plant
10. Serial number 000001 through 999999
