Transmission Position Sensor/Switch: Testing and Inspection

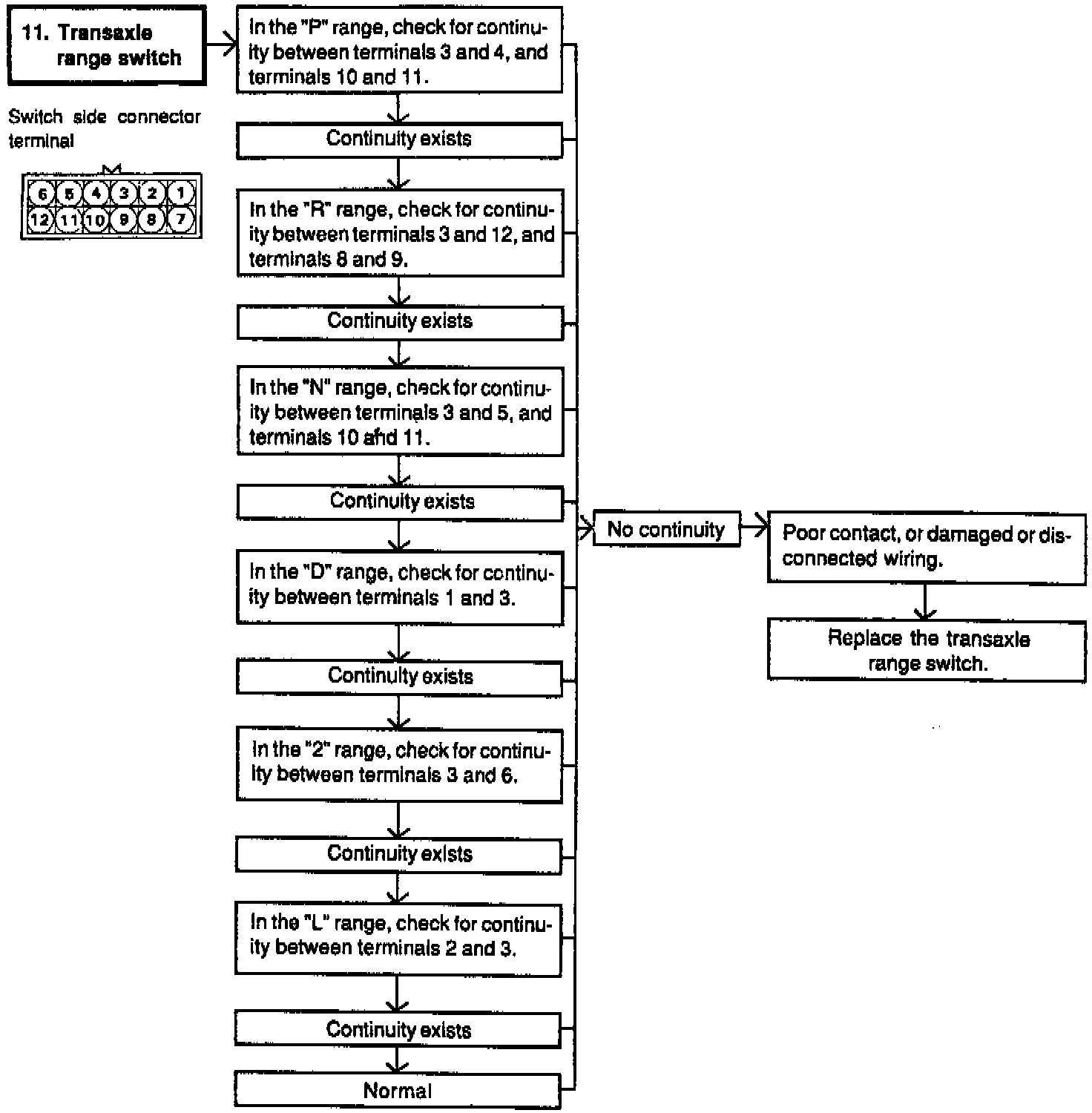

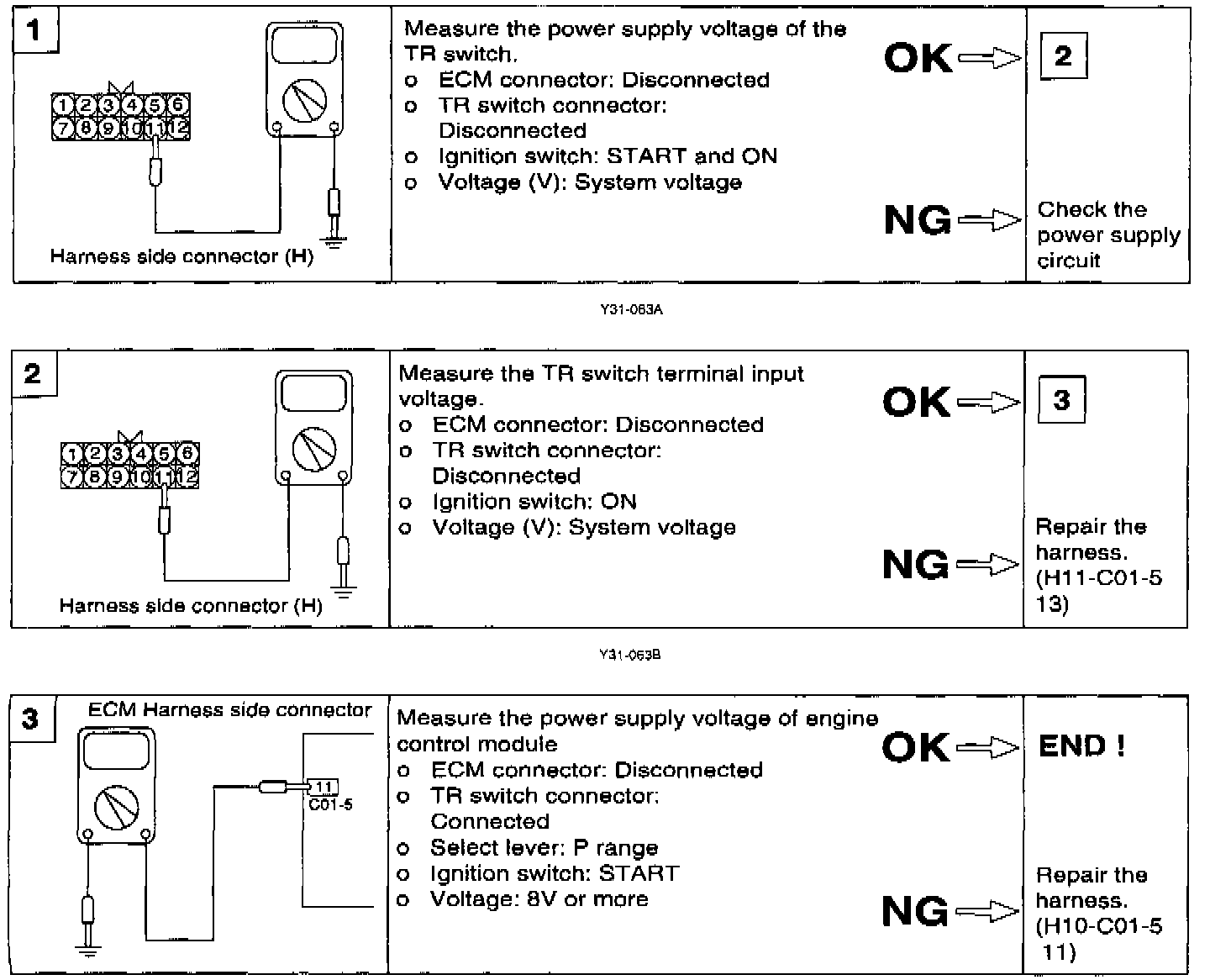

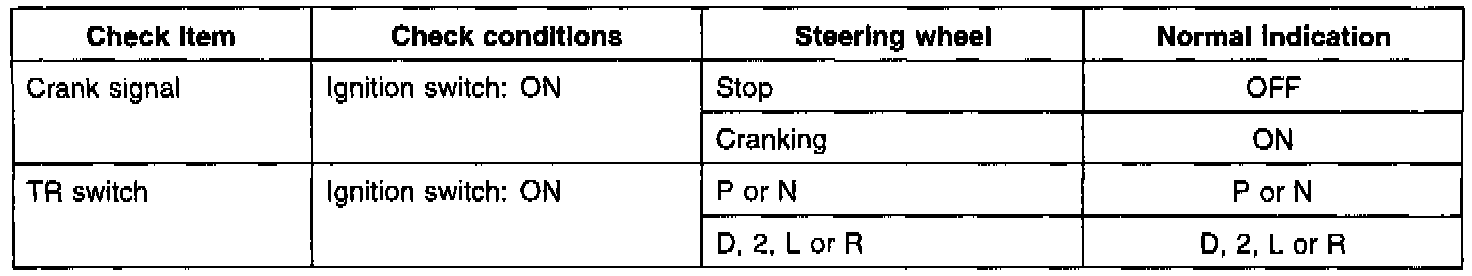

CIRCUIT DIAGRAM INSPECTION USING SCAN TOOL HARNESS INSPECTION PROCEDURE TRANSAXLE TEST CHARTTROUBLESHOOTING HINTS If the transaxle range switch harness check is normal but the transaxle range switch output is abnormal, check the control cable adjustment.
