Transmission Mount: Service and Repair
1.
Sufficiently raise and support engine to take load off engine mounts.

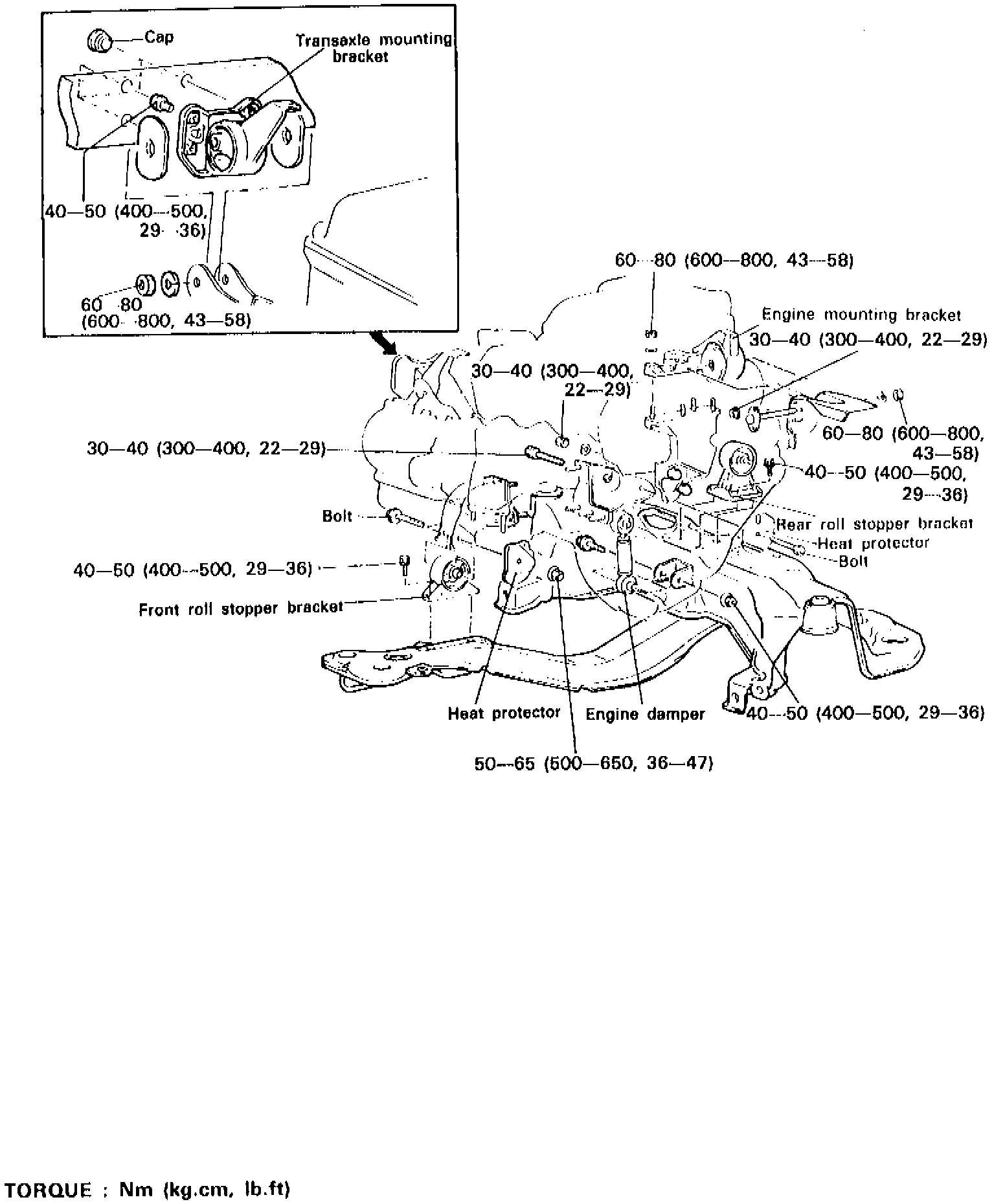

Fig. 2 Engine & Transaxle Mounts:
2.
Remove transaxle mounting bolt,
Fig. 2.
3.
Remove plugs from inside right fender shield, then remove the remaining transaxle mounting bolts.
4.
Remove transaxle bracket.
5.
Reverse procedure to install. Tighten to specifications,
Fig. 2.
