Control Harness (Inter)

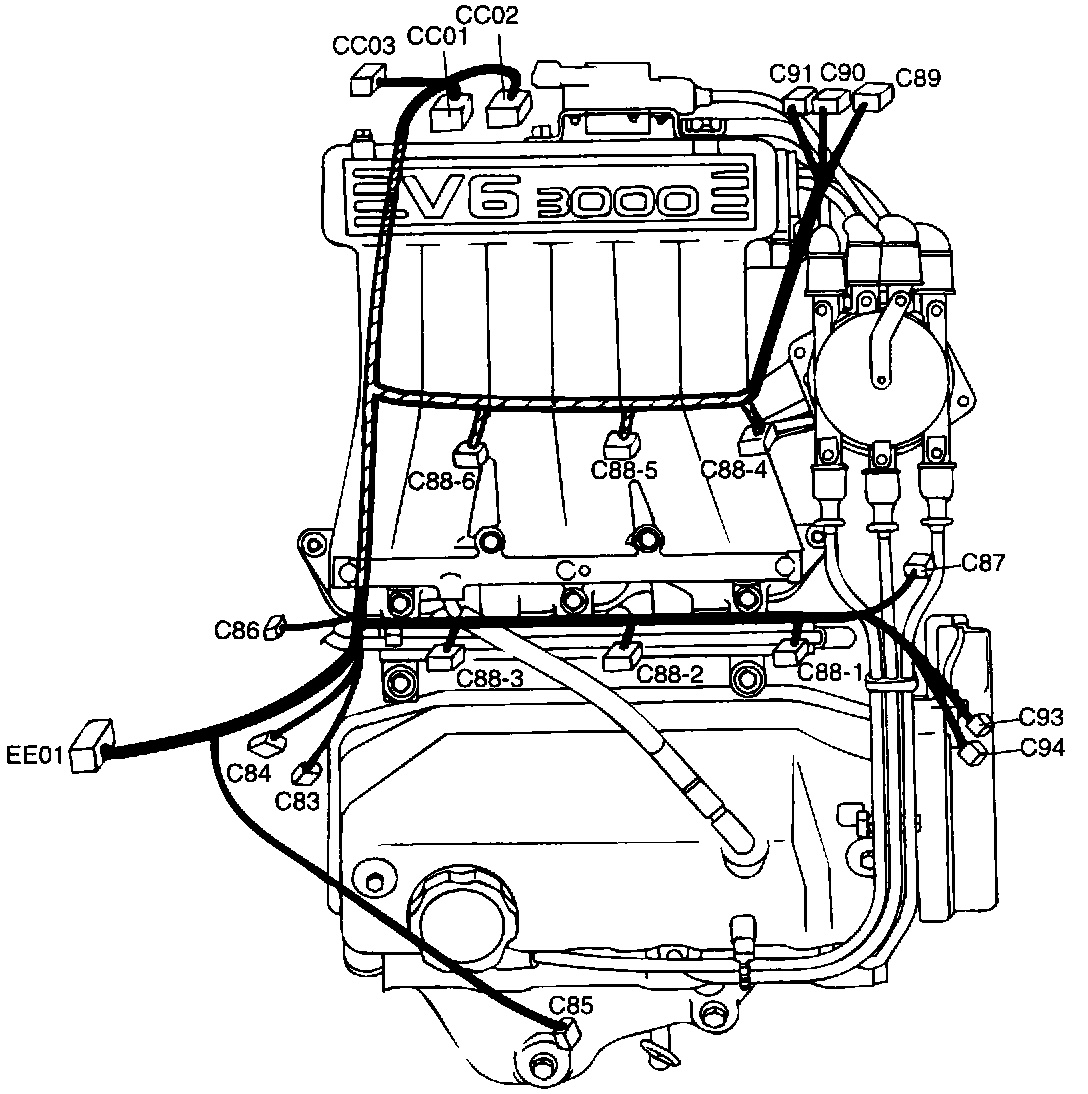

Control Harness:






C83 ECT sender
C84 ECT sensor
C85 Start solenoid
C86 Thermo sensor (115°C)
C87 Power steering pressure switch
C88-1 Injector
C88-2 Injector
C88-3 Injector
C88-4 Injector
C88-5 Injector
C88-6 Injector
C89 Oil pressure switch
C9O Generator (L, R)
C91 Generator (B+)
C93 Crankshaft position sensor
C94 Camshaft position sensor
CC01 Connection with control harness
CC02 Connection with control harness
CCO3 Connection with control harness
EE01 Connection with engine harness
