Home
>>
Hyundai
>>
1997
>>
Accent GS Coupe L4-1495cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
M31 - M44, M44-1, M46 - M71
M31 - M44, M44-1, M46 - M71

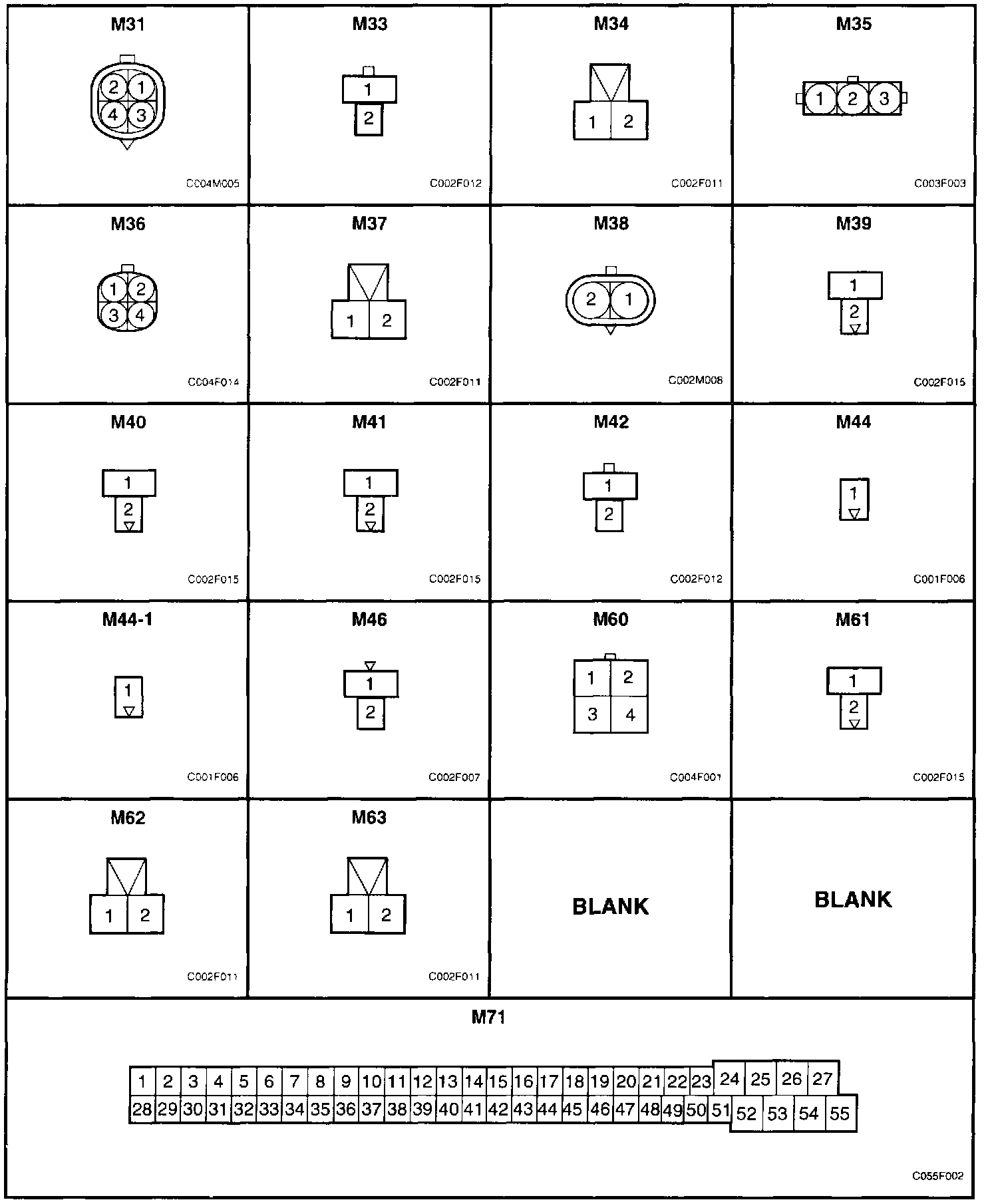

Main Harness (2) - M31 - M44, M44-1, M46 - M71:
