Coolant Line/Hose: Service and Repair

HOSE AND PIPE REPLACEMENT

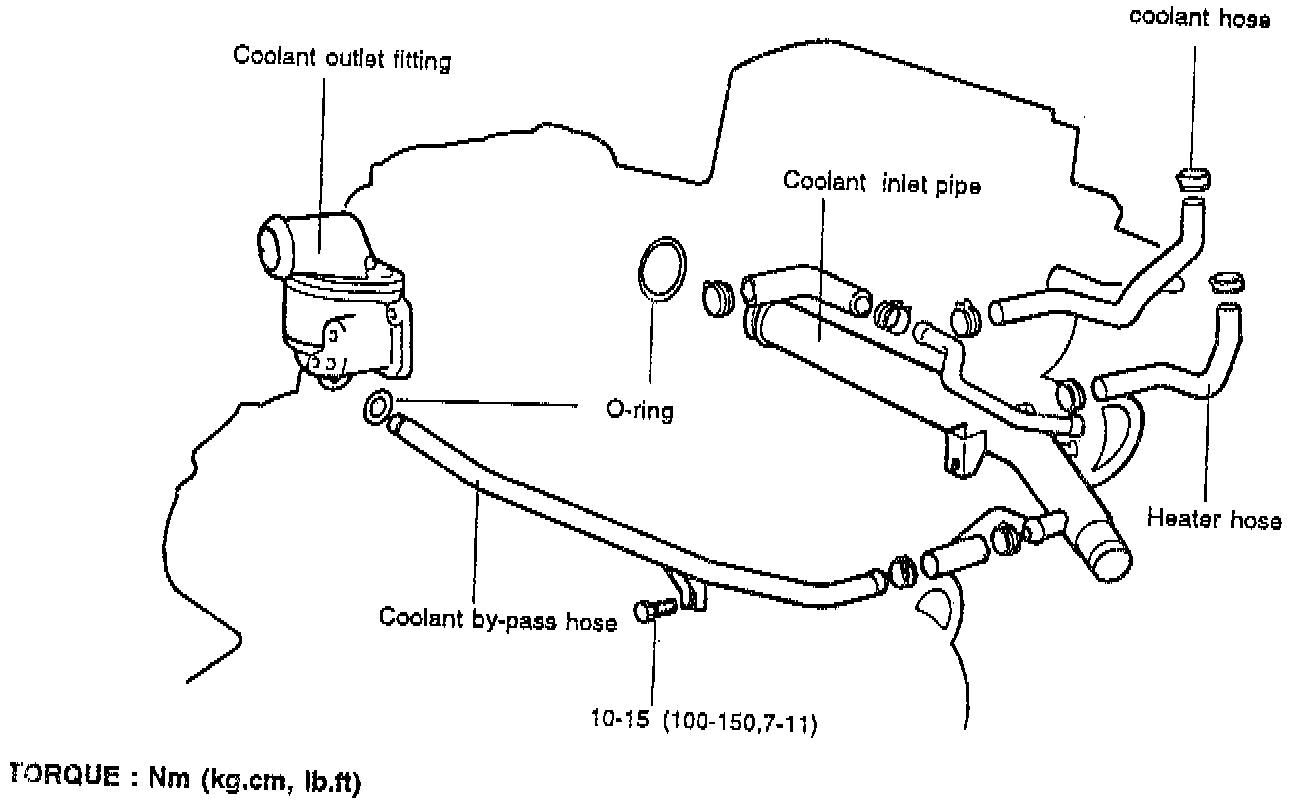

Refer to the illustration when servicing the coolant system hoses and pipes.

COOLANT PIPE REPLACEMENT

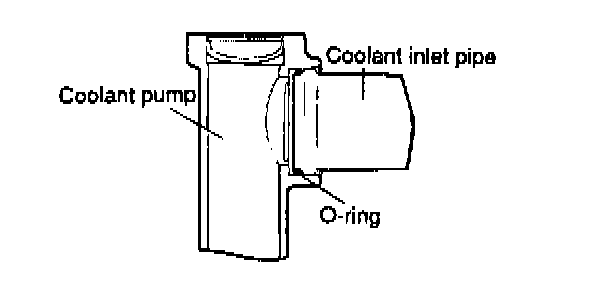

Fit the O-ring in the groove provided at the coolant inlet pipe end, wet the O-ring with coolant and insert the coolant inlet pipe.

NOTE:
- Do not apply oil or grease to the coolant pipe O-ring.
- Keep the coolant pipe connections free of sand, dust, etc.
- Insert the coolant pipe fully into the coolant pump.
- Do not reuse O-ring and replace it with a new part.
