Hyundai
>>
1997
>>
Accent GS Coupe L4-1495cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

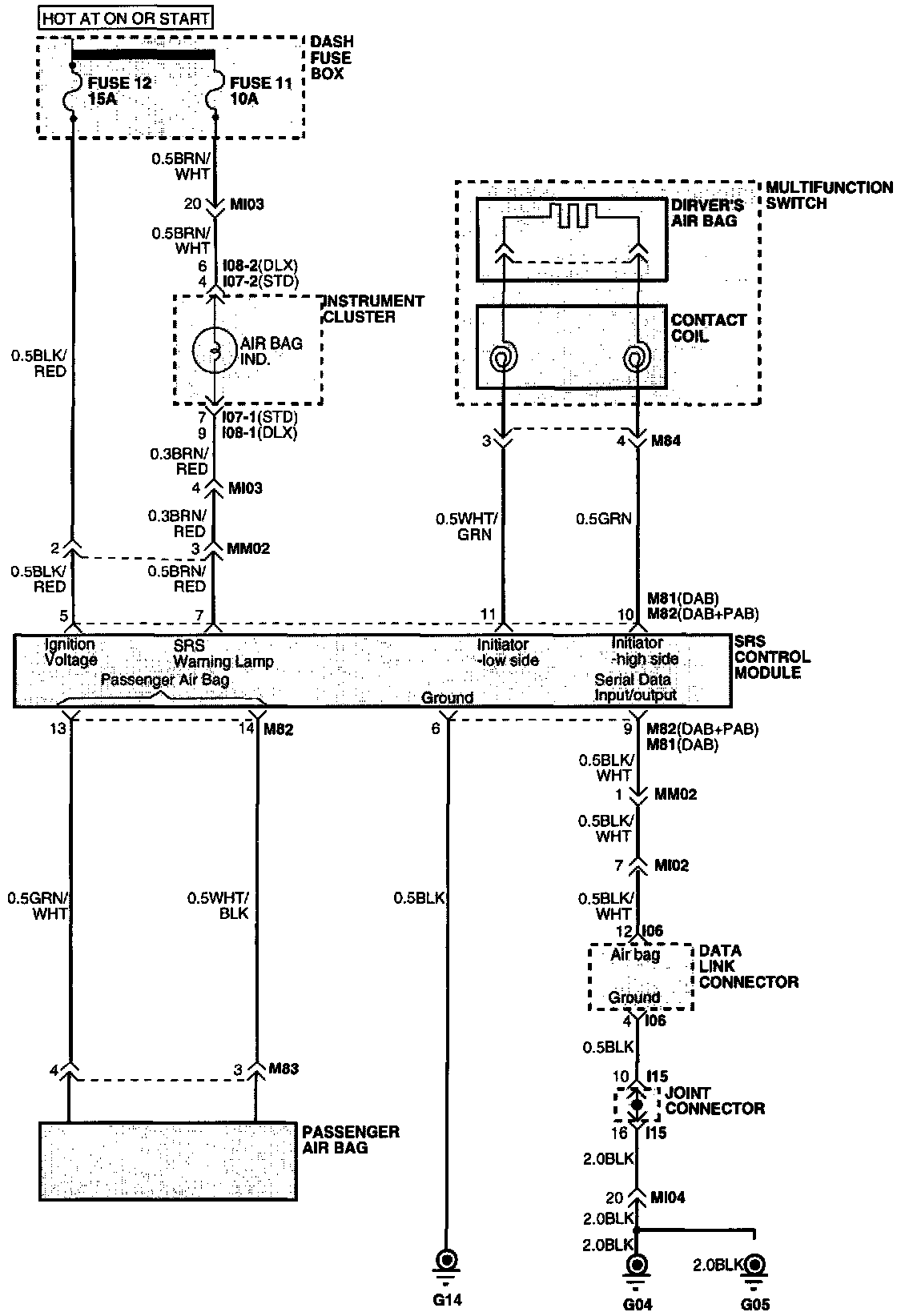

Air Bag System (SRS):
