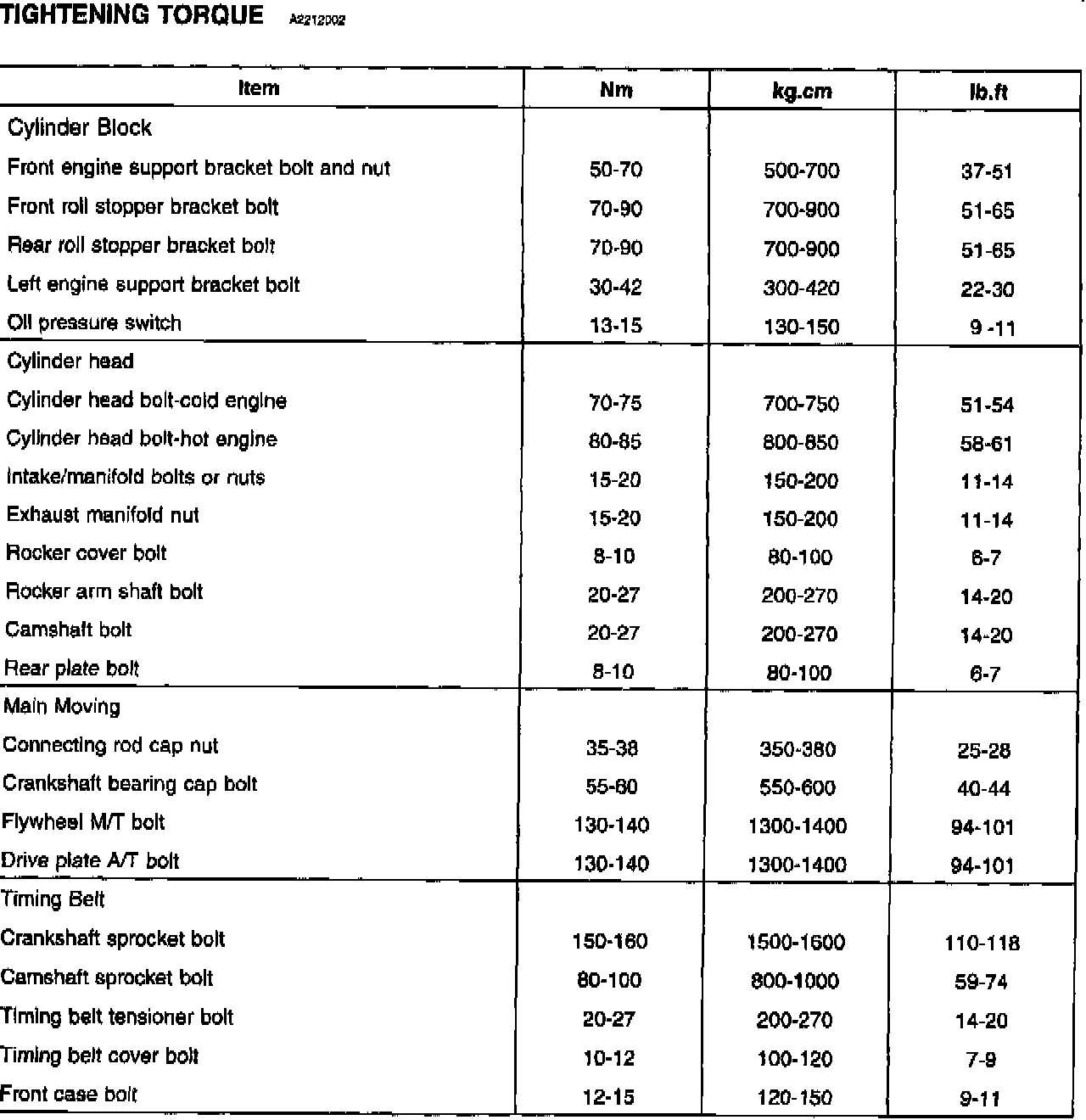

Tightening Torque Specifications

Part 1 of 13

Part 2 of 13

Part 3 of 13

Part 4 of 13

Part 5 of 13

Part 6 of 13

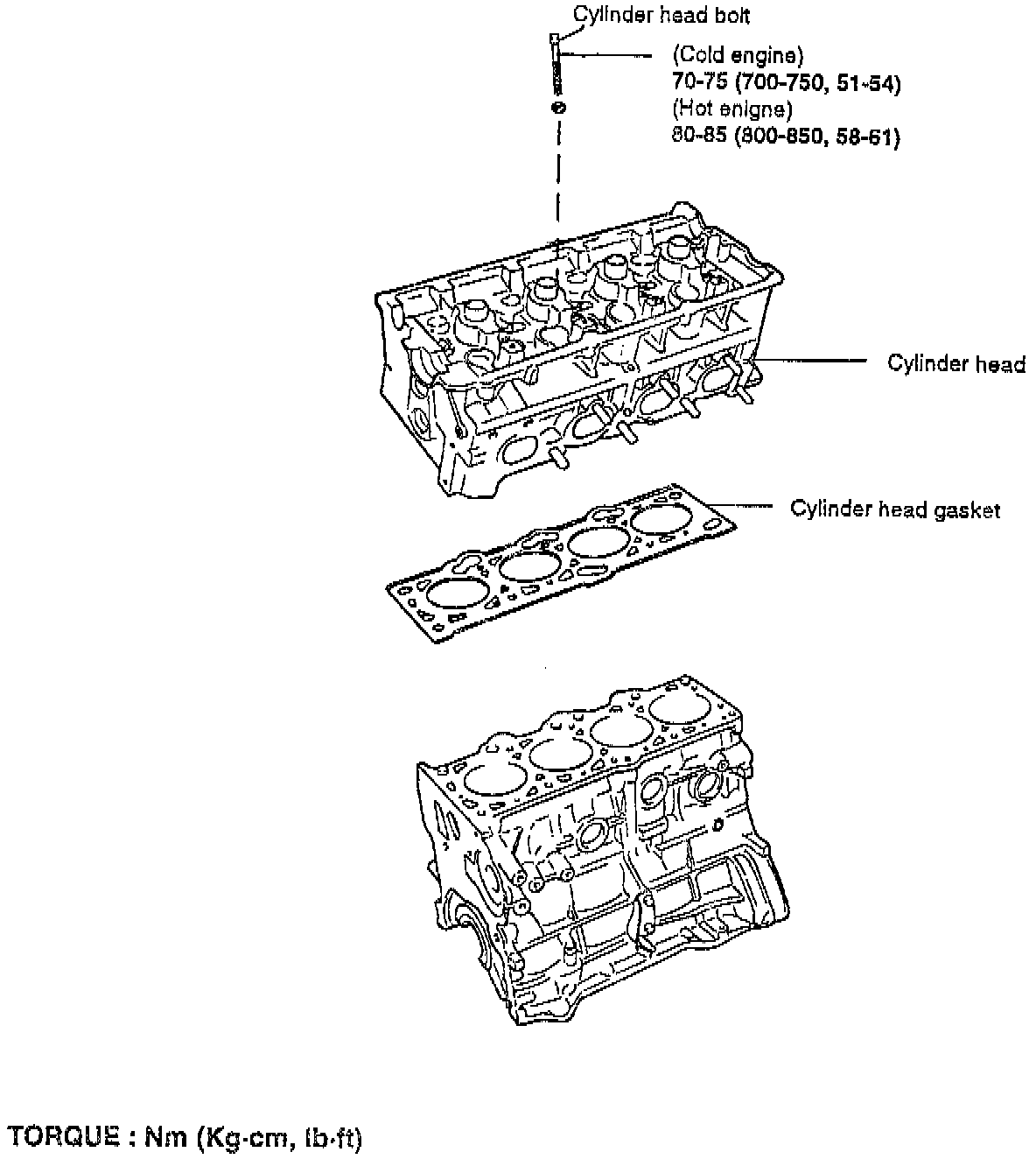

Tightening Sequence:

Part 7 of 13

Part 8 of 13

Part 9 of 13

Part 10 of 13

Part 11 of 13

Part 12 of 13

Part 13 of 13
