Instalation

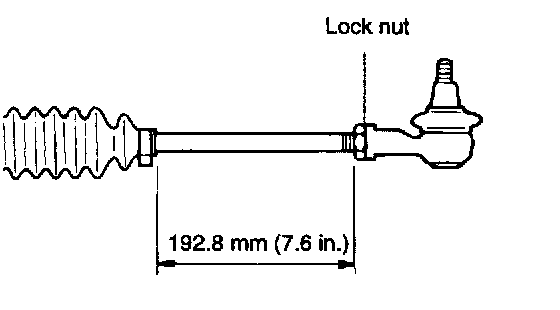

1. Screw in the tie rod end to have its right and left length as illustrated, lock with a lock nut.

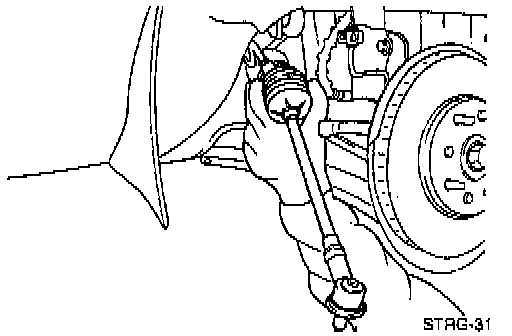

2. Push in the power steering gear box assembly from the right side of the vehicle.

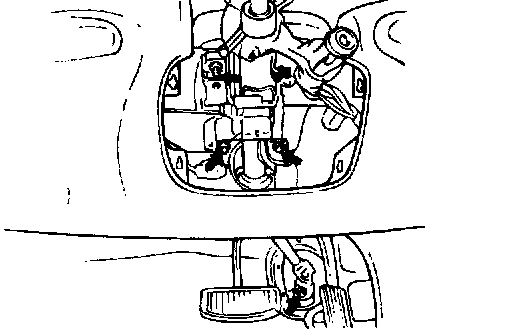

3. Install the dust cover mounting plate and connect the dust cover to the mounting plate with a new strap.







4. Connect the steering gearbox assembly to the steering column and shaft assembly.

NOTE: This work should be done by two persons. While one is pushing the gear box assembly toward the steering column and shaft assembly from underside of the vehicle, the other one is connecting the gear box to the steering column and shaft.

5. The remaining installation procedure is the reverse order of removal.
6. After installation, bleed the system.
