Compressor Clutch Relay: Testing and Inspection

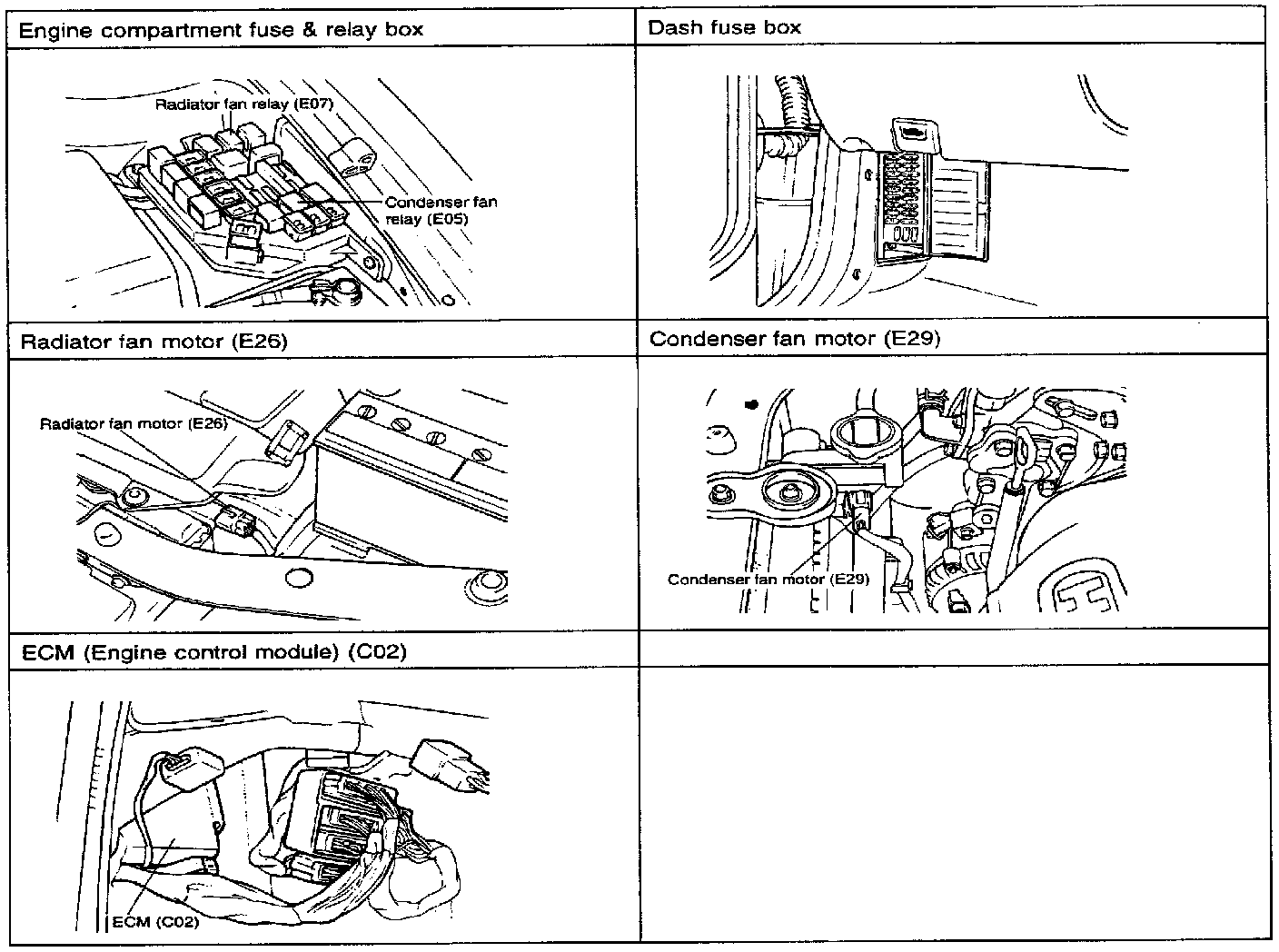

COMPONENT LOCATION 1.
Remove the battery ground cable.
2.
Remove the cover of
relay box located in engine compartment.
3.
Remove the relays from
relay box.
4.
Check for continuity or voltage between the terminals.
AIR CONDITIONING RELAY-check for continuity If continuity is not as specified, replace the relay.
