Manual Control System Testing (W/O Electronic Climate Control)

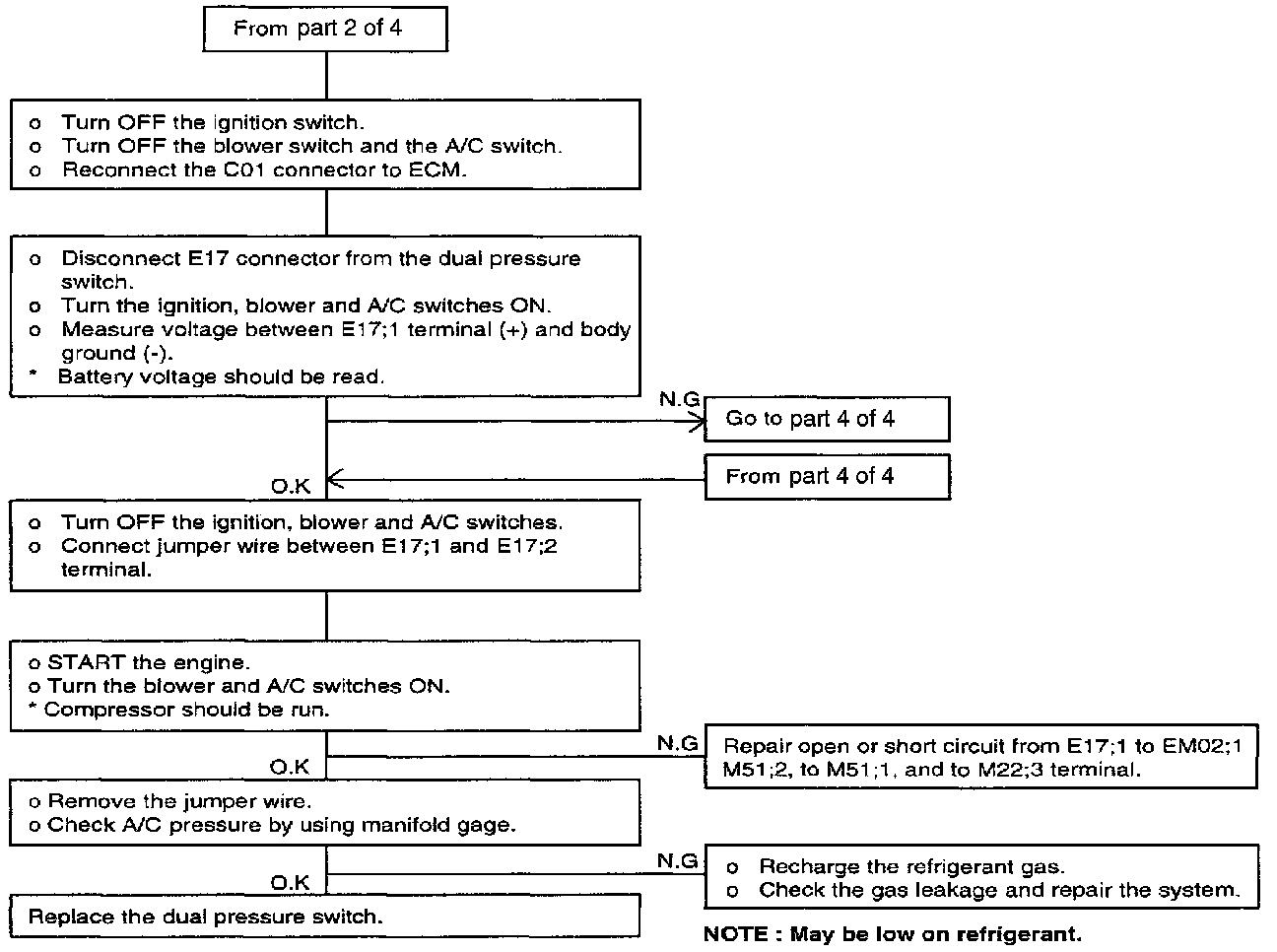

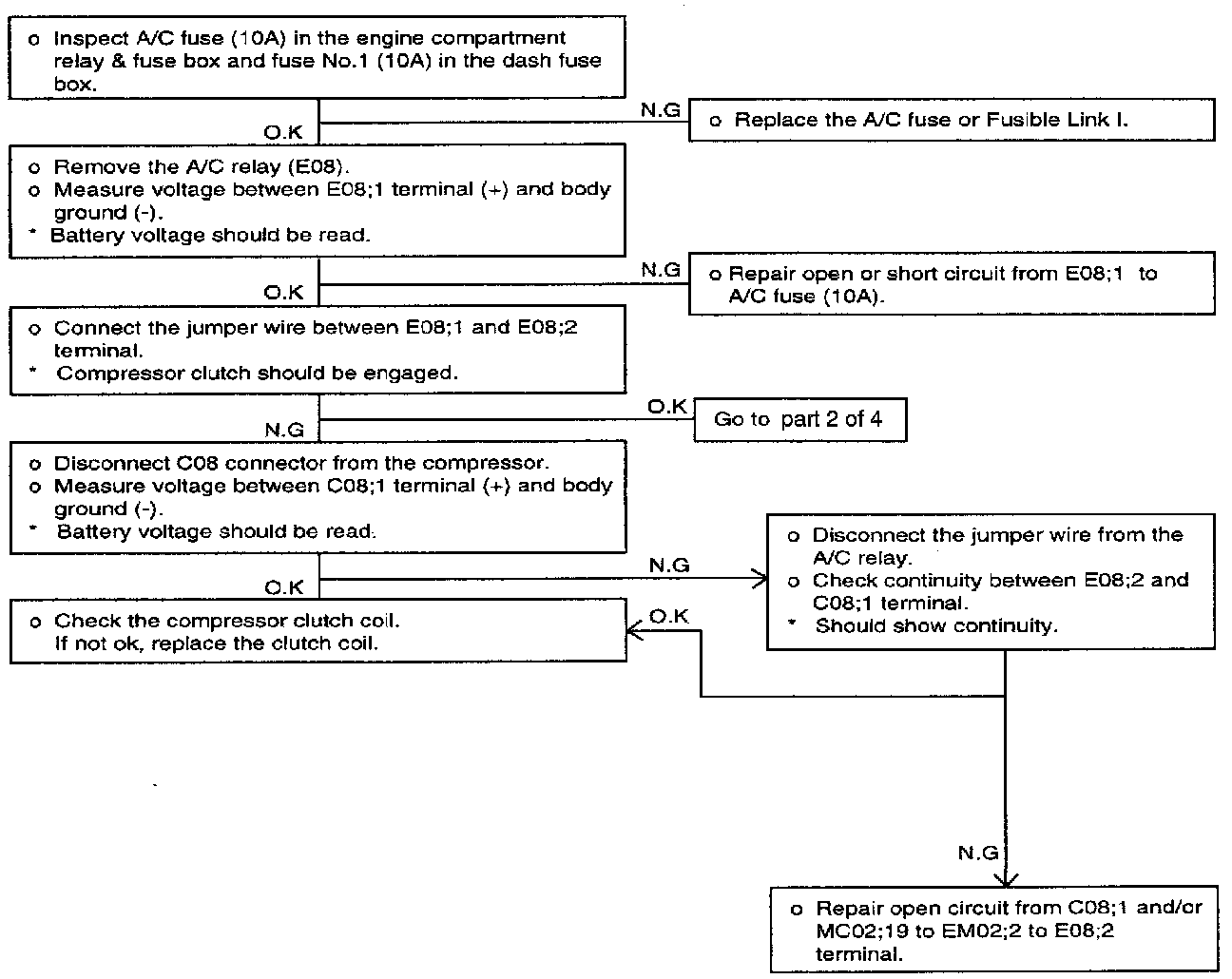

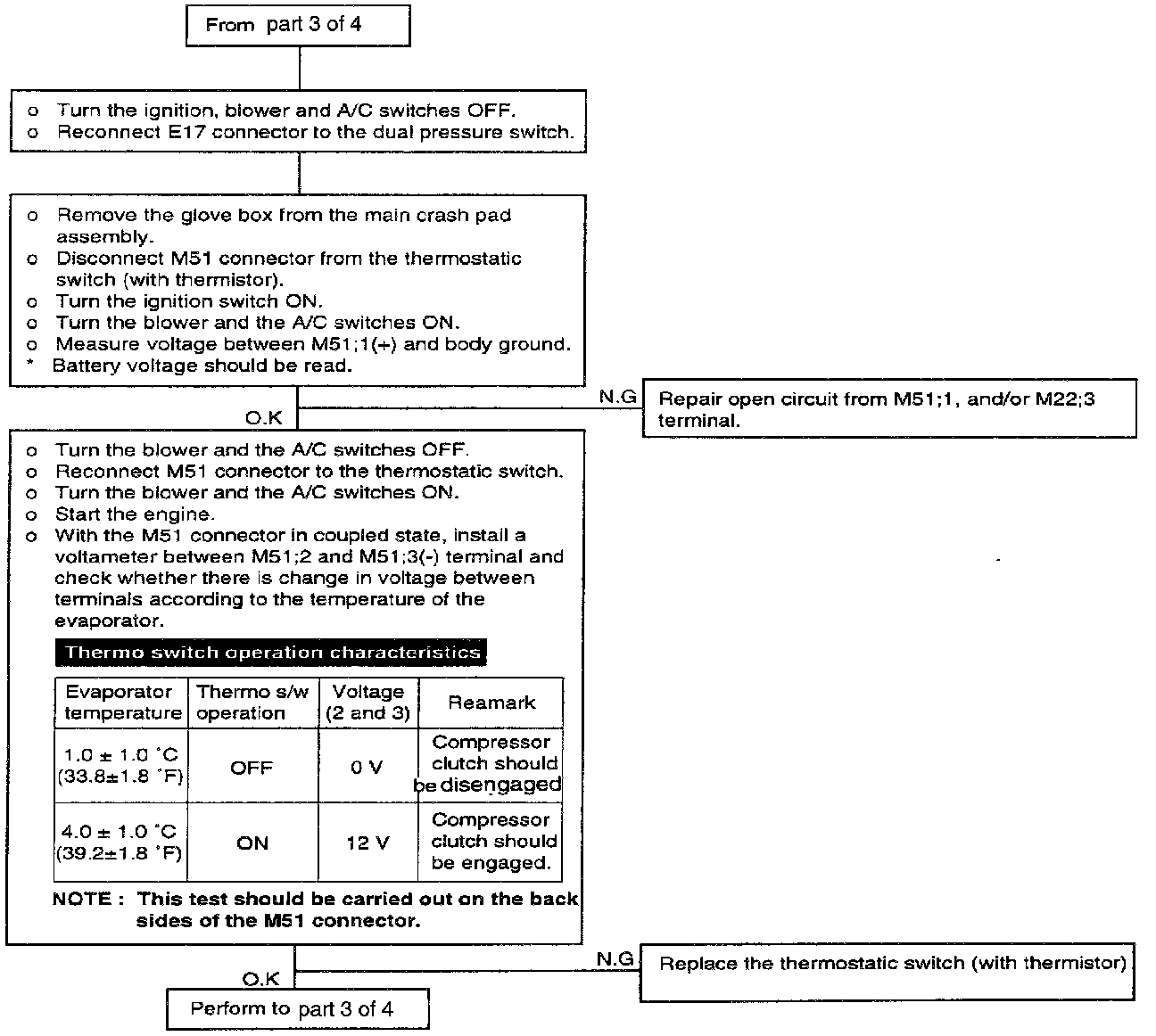

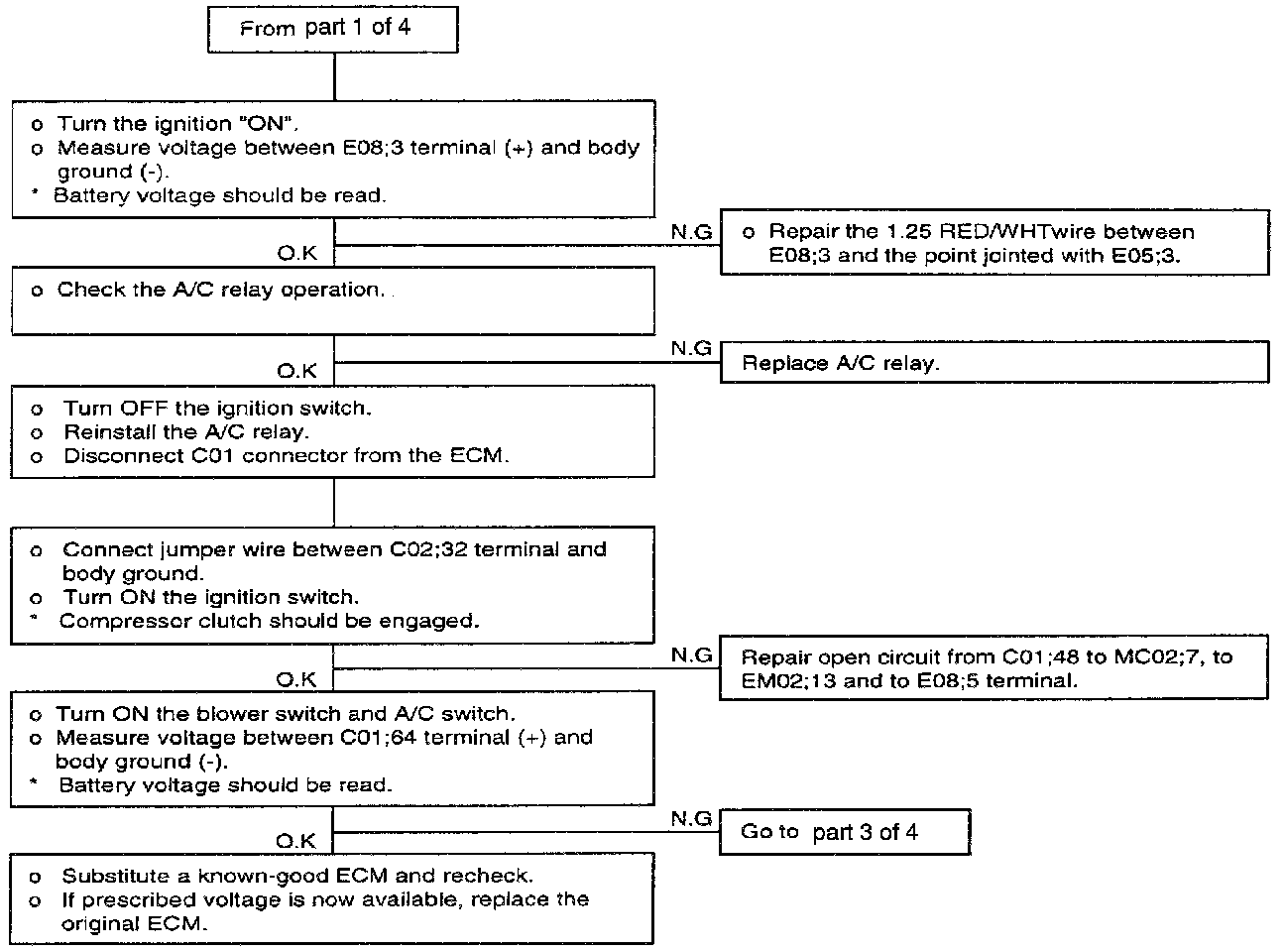

COMPRESSOR DOES NOT COME ON EVEN THOUGH THE CONDENSER FAN RUN

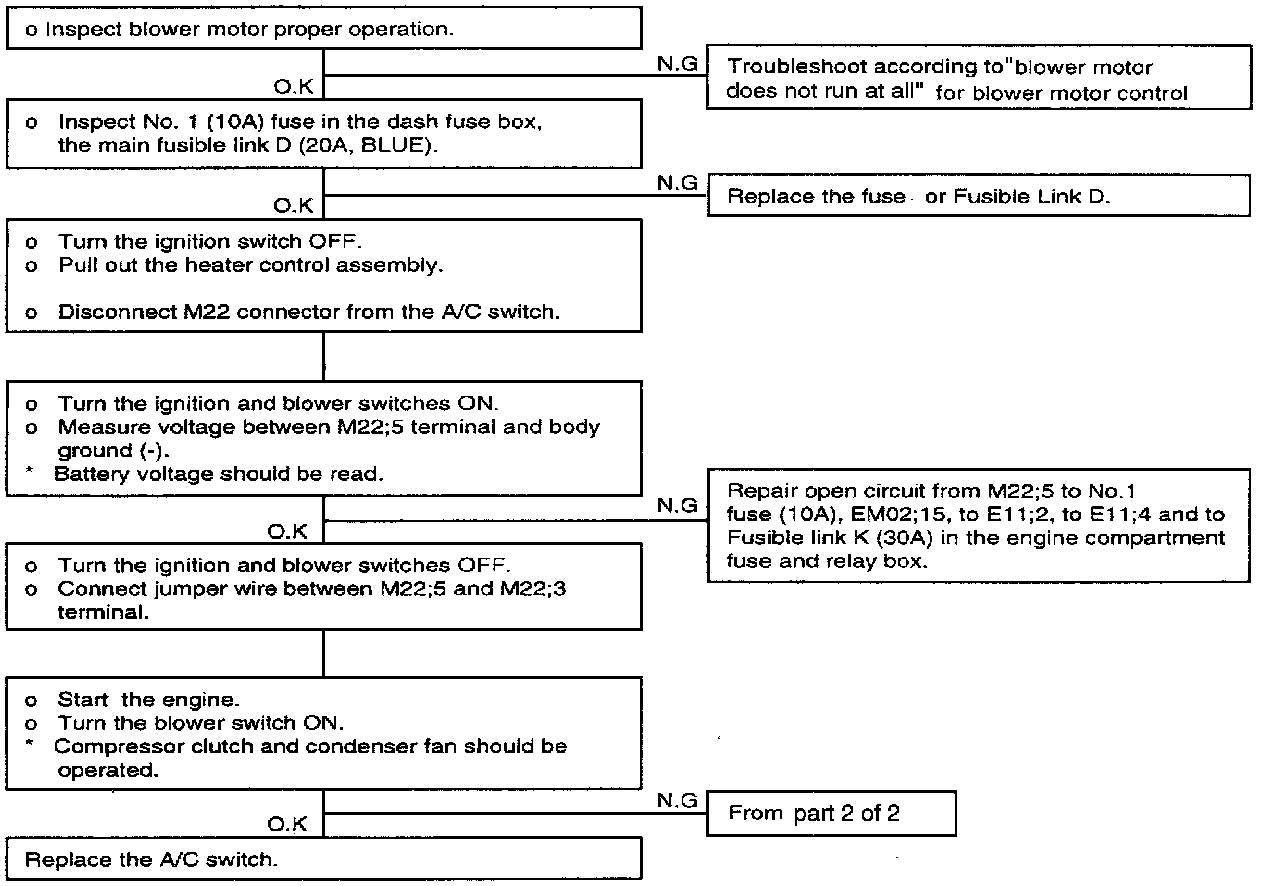

COMPRESSOR AND CONDENSER FAN DO NOT RUN

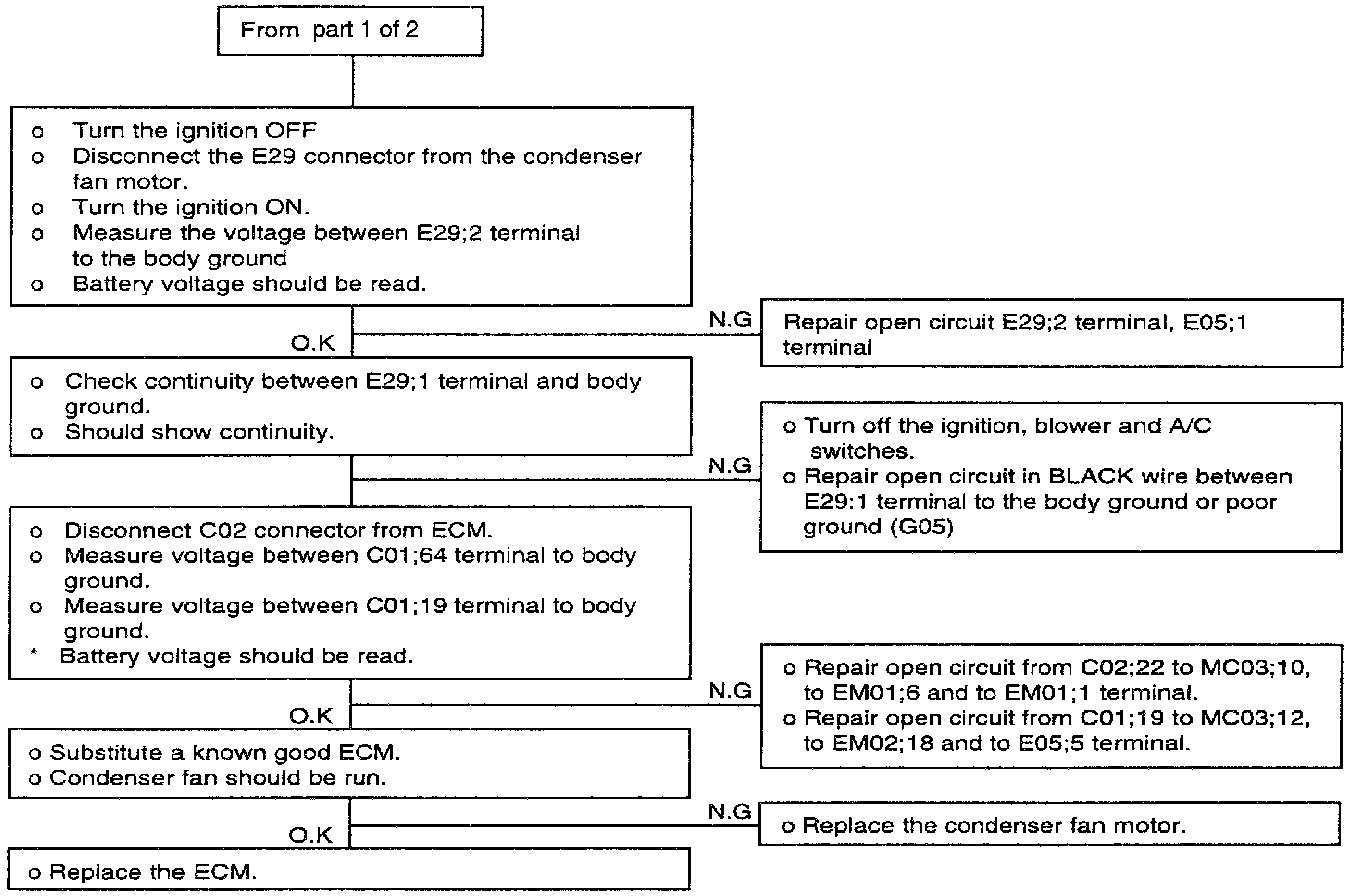

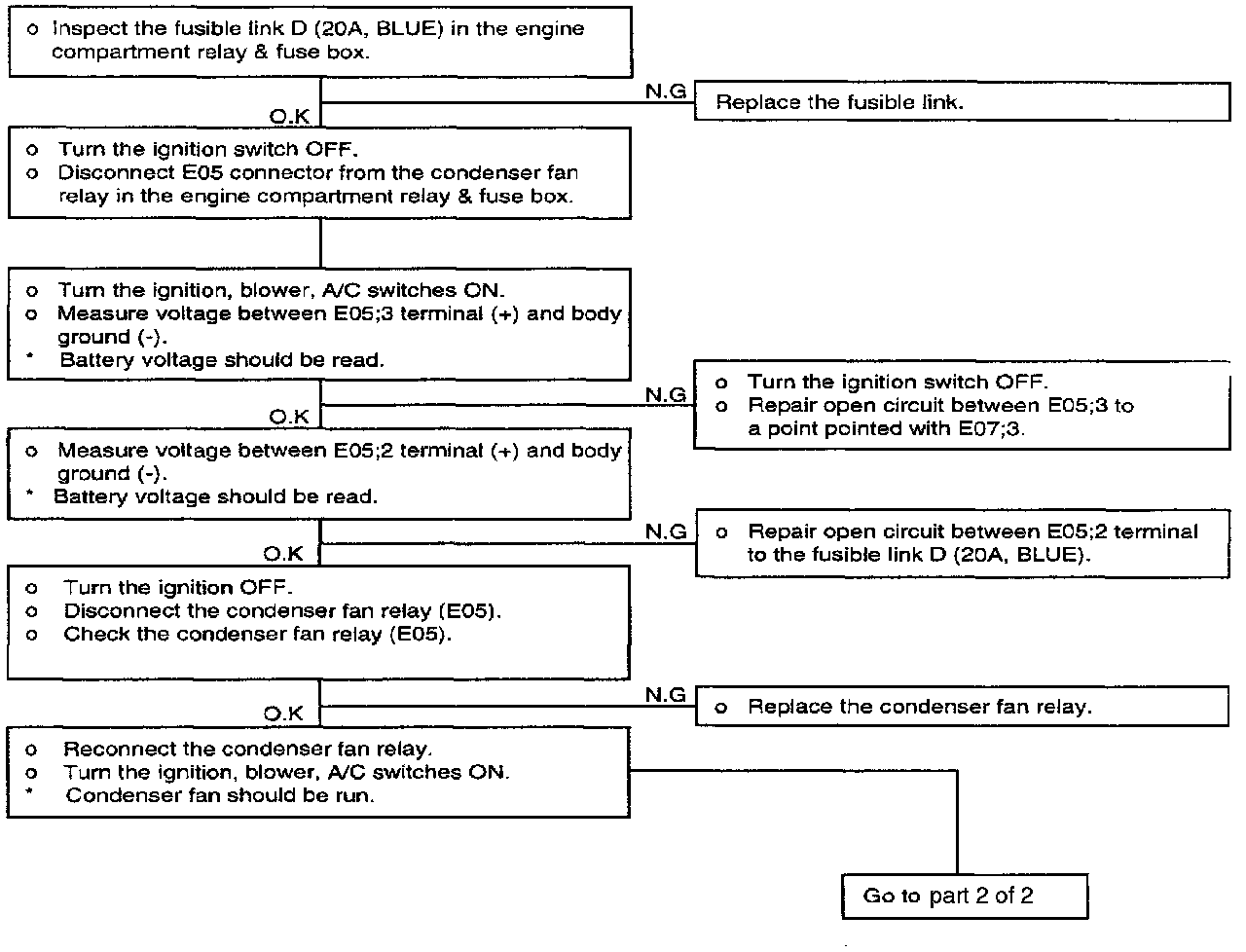

ONLY CONDENSER FAN DOES NOT RUN

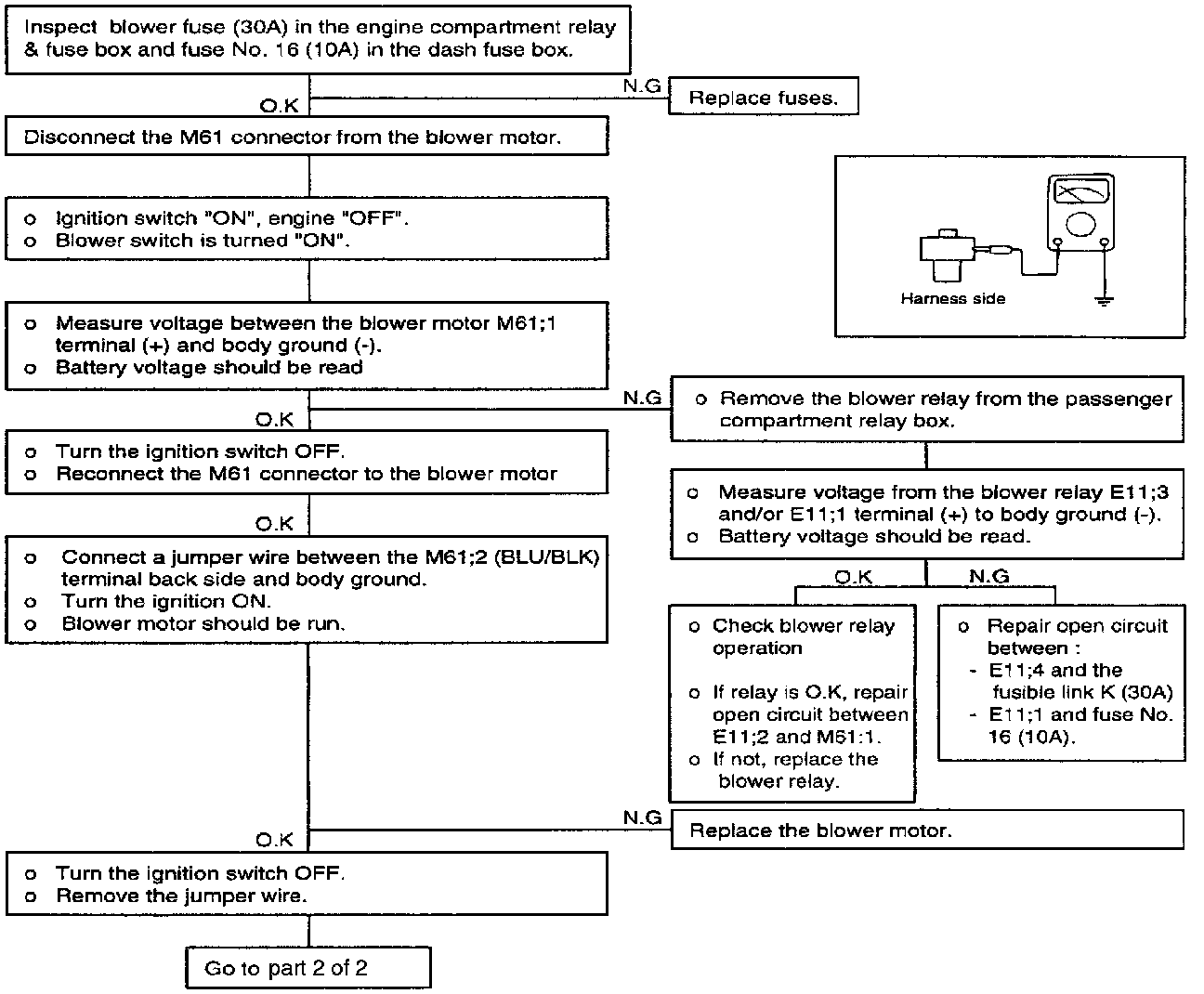

BLOWER MOTOR DOES NOT RUN AT ALL

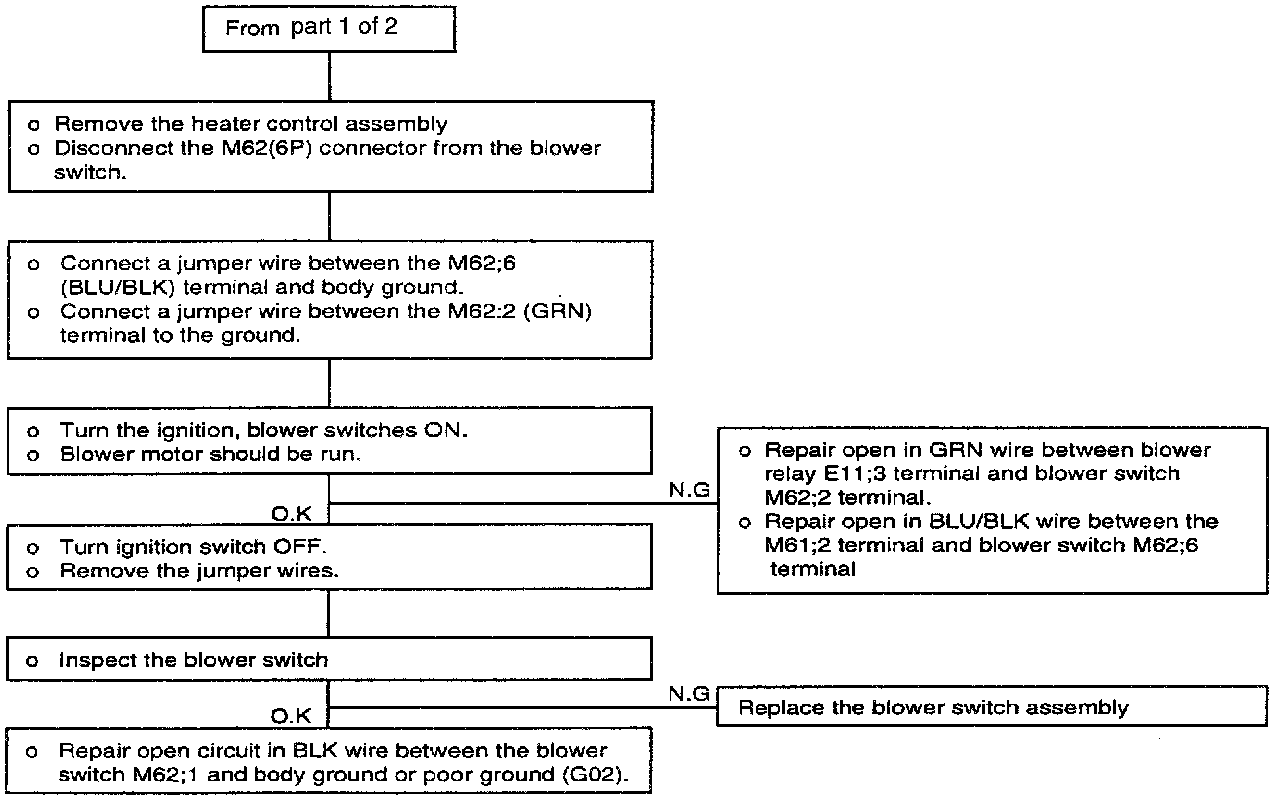

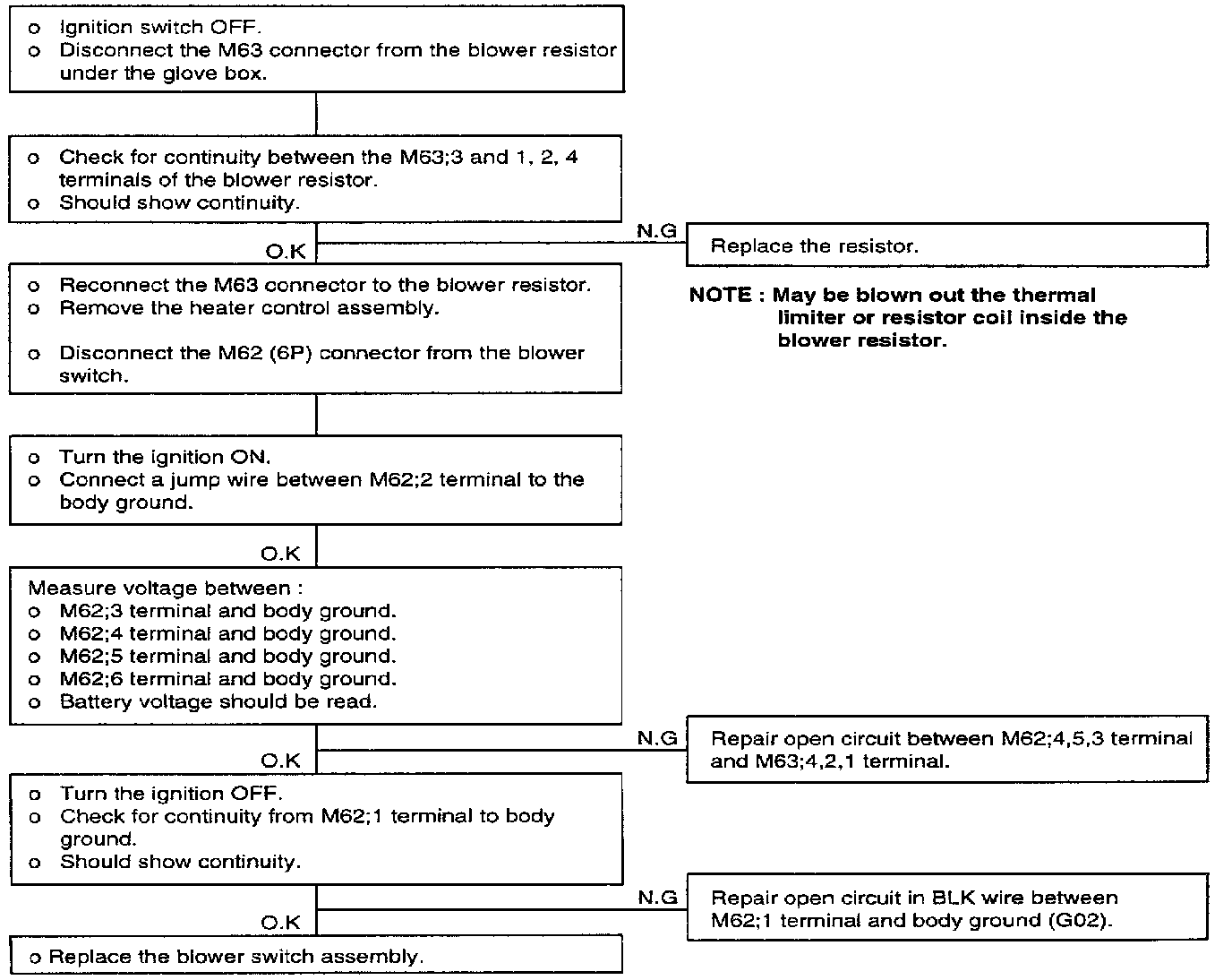

BLOWER MOTOR RUNNING SPEED DOES NOT CHANGE
