M/T - Synchronizer Hub Identification Feature
Group: TRANSAXLENumber: 97-40-009
Date: APRIL, 1997
Model: 1997 ELANTRA
Subject:
ADDITION OF IDENTIFICATION
FEATURE TO SYNCHRONIZER HUBS
DESCRIPTION:

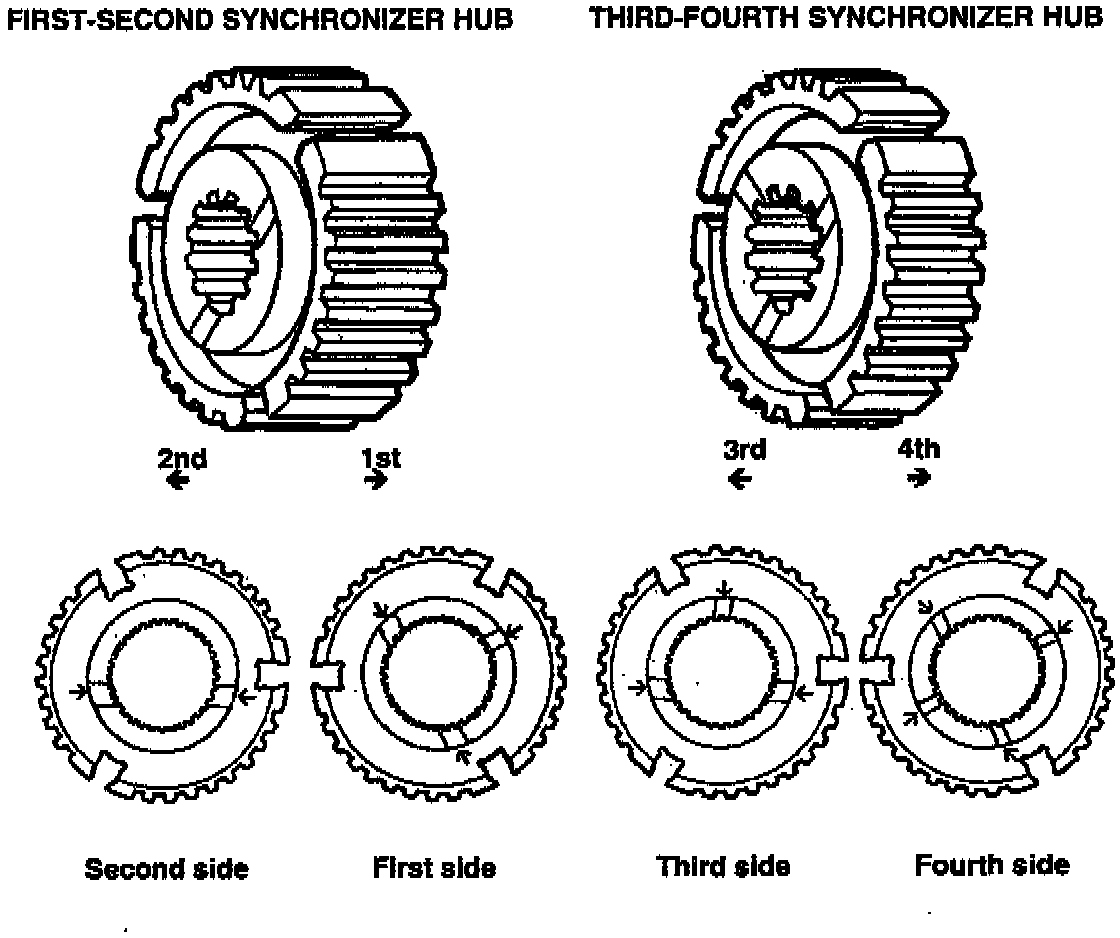

To aid in the installation of first-second and third-fourth synchronizer hubs, the hubs are now identified by the number of oil grooves. The second side synchronizer hub is identified with two (2) grooves and the fourth side synchronizer hub is identified with four (4) grooves, as shown.
EFFECTIVE DATE: November 26, 1996
PARTS INFORMATION:
No change in part numbers.
