Timing Cover: Service and Repair

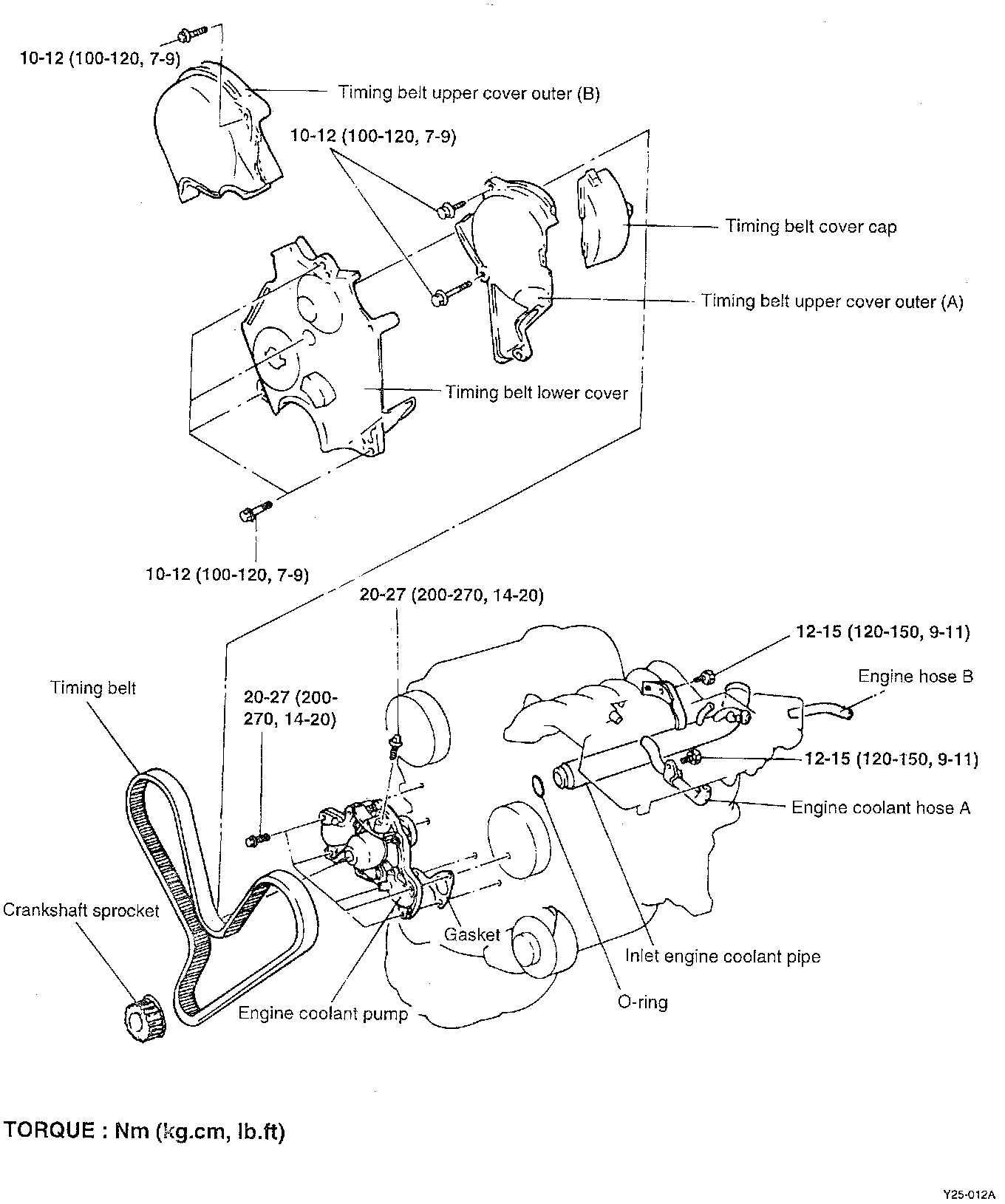

Refer to the illustrations when removing and installing timing belt covers.






Thread diameter by bolt length:
A, 6x60 mm (0.24x2.36 inch).
B, 6x20 mm (0.24x0.79 inch).
