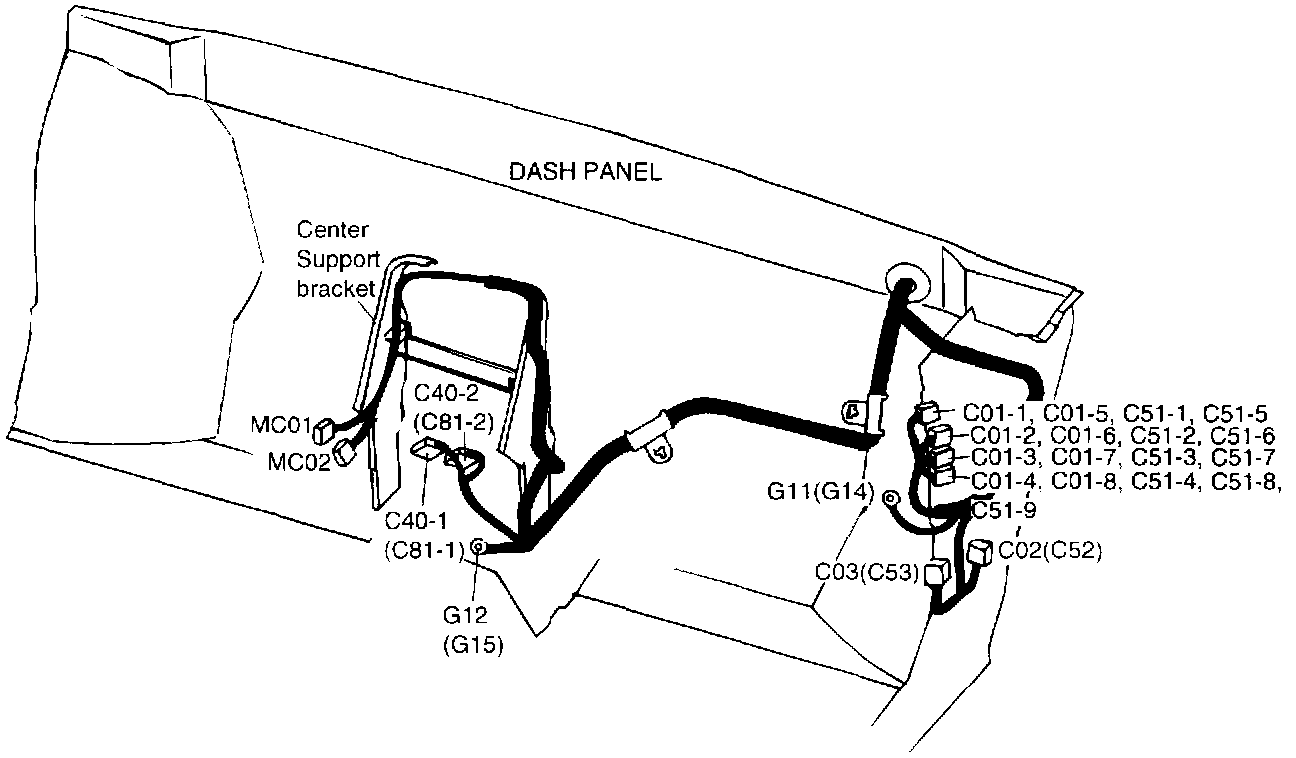

Control Harness (Common)
Control Harness:
C01-1
ECM (Except NAS and EC)
C01-2
ECM (Except NAS and EC)
C01-3
ECM (Except NAS and EC)
C01-4
ECM (NAS, EC)
C01-5
ECM (NAS, EC)
C01-6
ECM (NAS)
C01-7
ECM (NAS)
C01-8
ECM (EC)
C02
MFI main relay
C03
Cooling control module
C40-1
TCM
C40-2
TCM
MC01
Connection with MAIN harness
MC02
Connection with MAIN harness
G11
ECM ground
G12
TCM ground
