Cylinder Head Bolt Torque and Sequence

TIGHTENING SPECIFICATIONS

CAUTION:
Tighten cylinder head bolts in sequence shown.

Tightening Sequence:

Cylinder Head Bolt Tightening Sequence
Torque:
Bolt Torque: Follow sequence shown in image.
M10: 30 Nm (22 ft lb) + (60°+65°) + (60°+65°)
M12: 35 Nm (26 ft lb) + (60°+65°) + (60°+65°)

NOTE: Requires cylinder head bolt wrench, tool No. 09221-32001 or equivalent.

Fig. 8 Camshaft Bearing Cap Tightening Sequence:

Camshaft Bearing Cap Bolt Tightening Sequence
Torque 19-21 Nm (190 - 210 kg.cm., 14 - 15 lb.ft.)

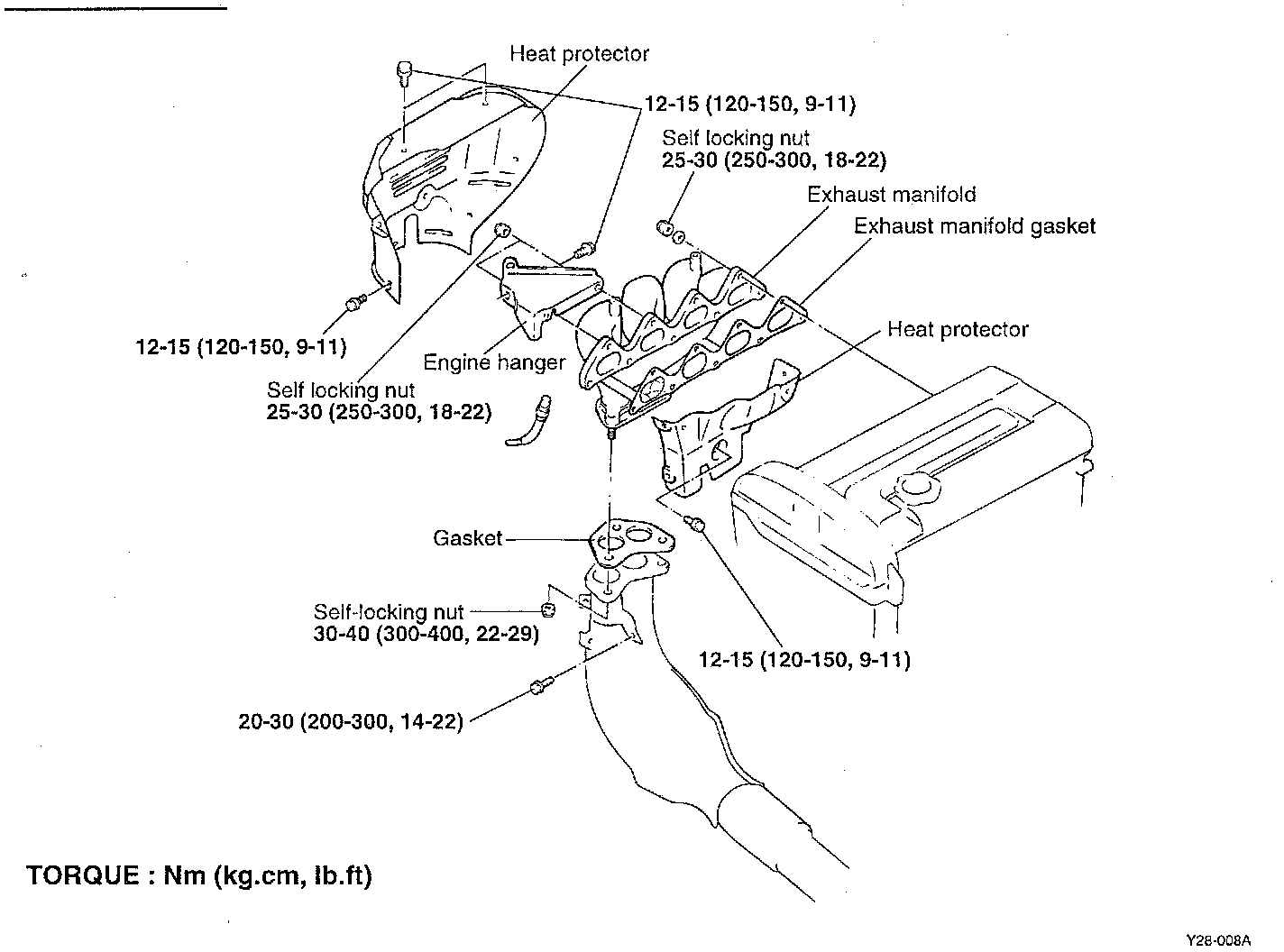

Part 1 of 4

Part 2 of 4

Part 3 of 4

Part 4 of 4
