Connector Locations

M01 Left Rear Wheel Sensor:

M06 Data Link Connector:

M27, M28 Stoplamp Switch, TCM:

M58 Joint Connector:

M60 ABS Control Module:

M62 ABS Relay Box, M62-1 ABS Motor Pump, ABS Ground:

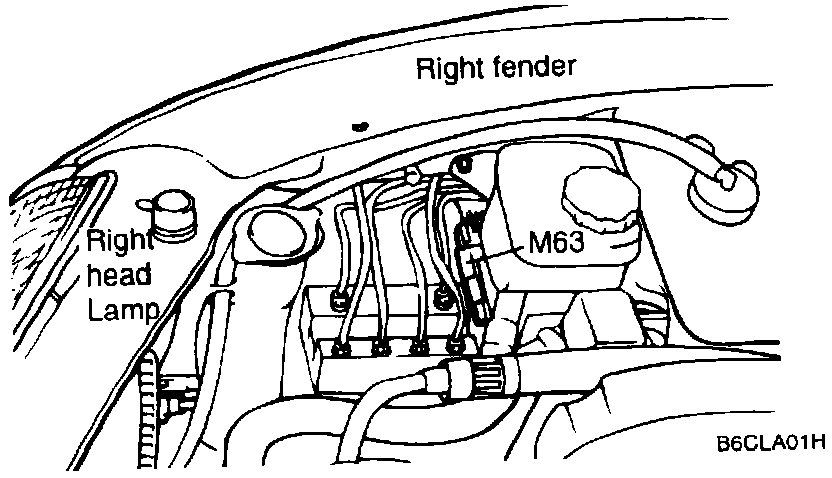

M63 ABS Modulator:

M66 Right Front Wheel Sensor, ABS Relay Box, ABS Ground:

M67 Right Rear Wheel Sensor:

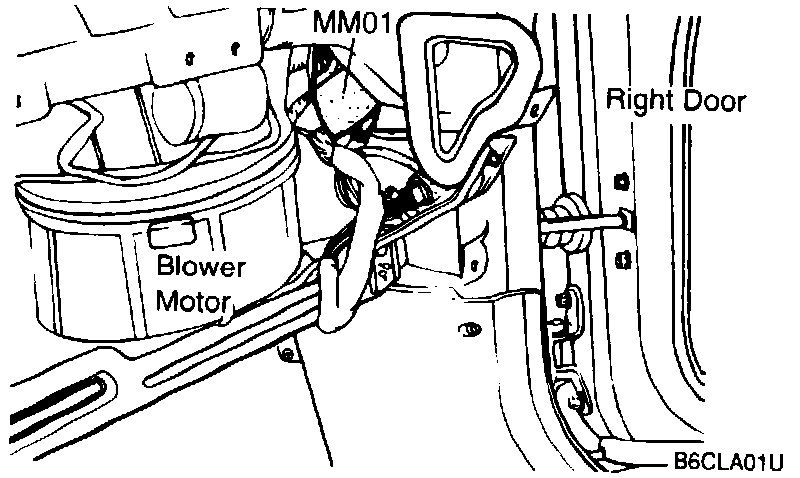

MM01:

MI01, MI02, MI03, MI04:

E58 ABS Relay Box, EM04:

E56 Left Front Wheel Speed Sensor:

I01-1, I01-2 Instrument Cluster:
