Component Tests

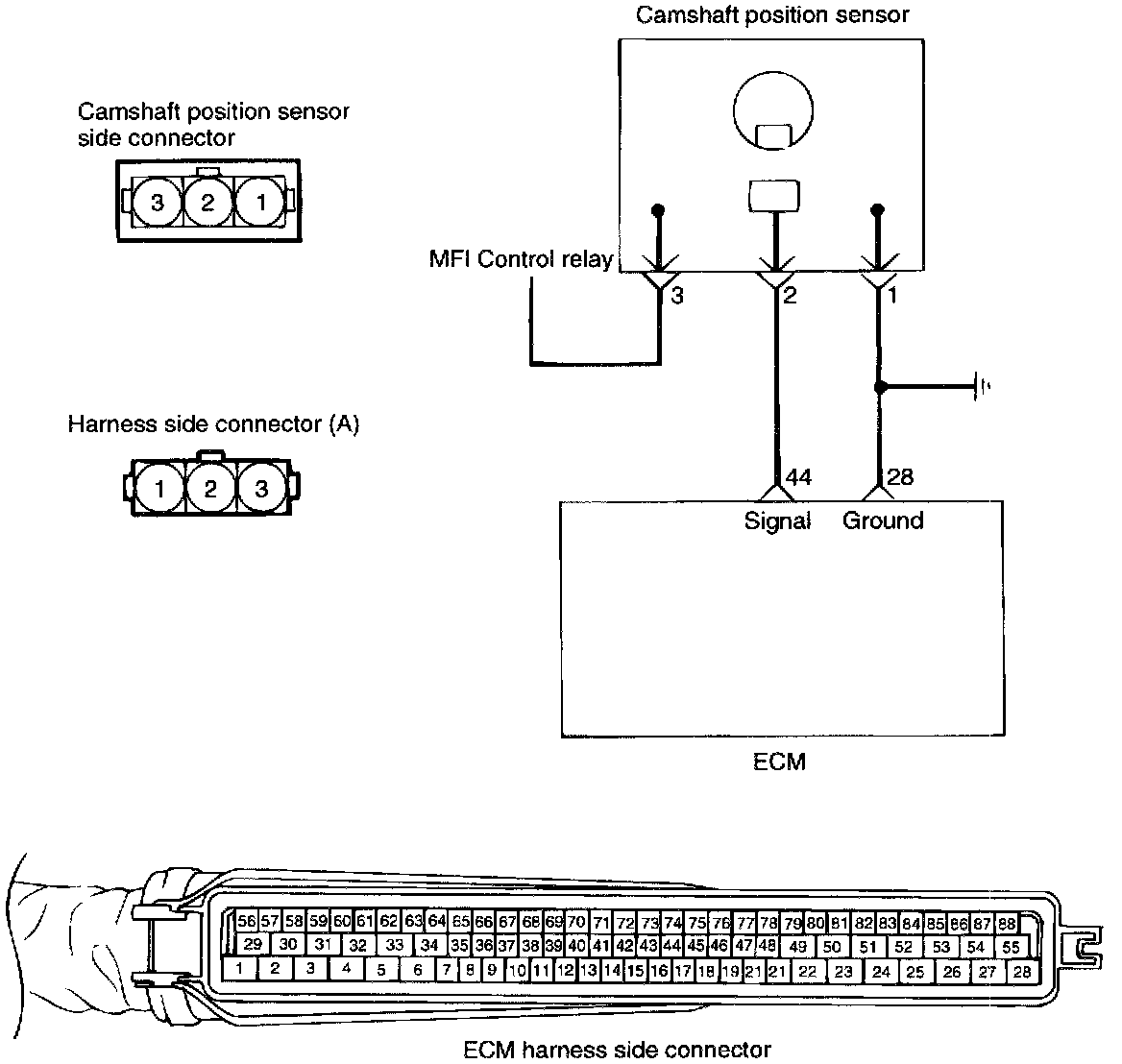

CIRCUIT DIAGRAM HARNESS INSPECTION PROCEDURES DTC P0342, P0343 - Camshaft Position Sensor:

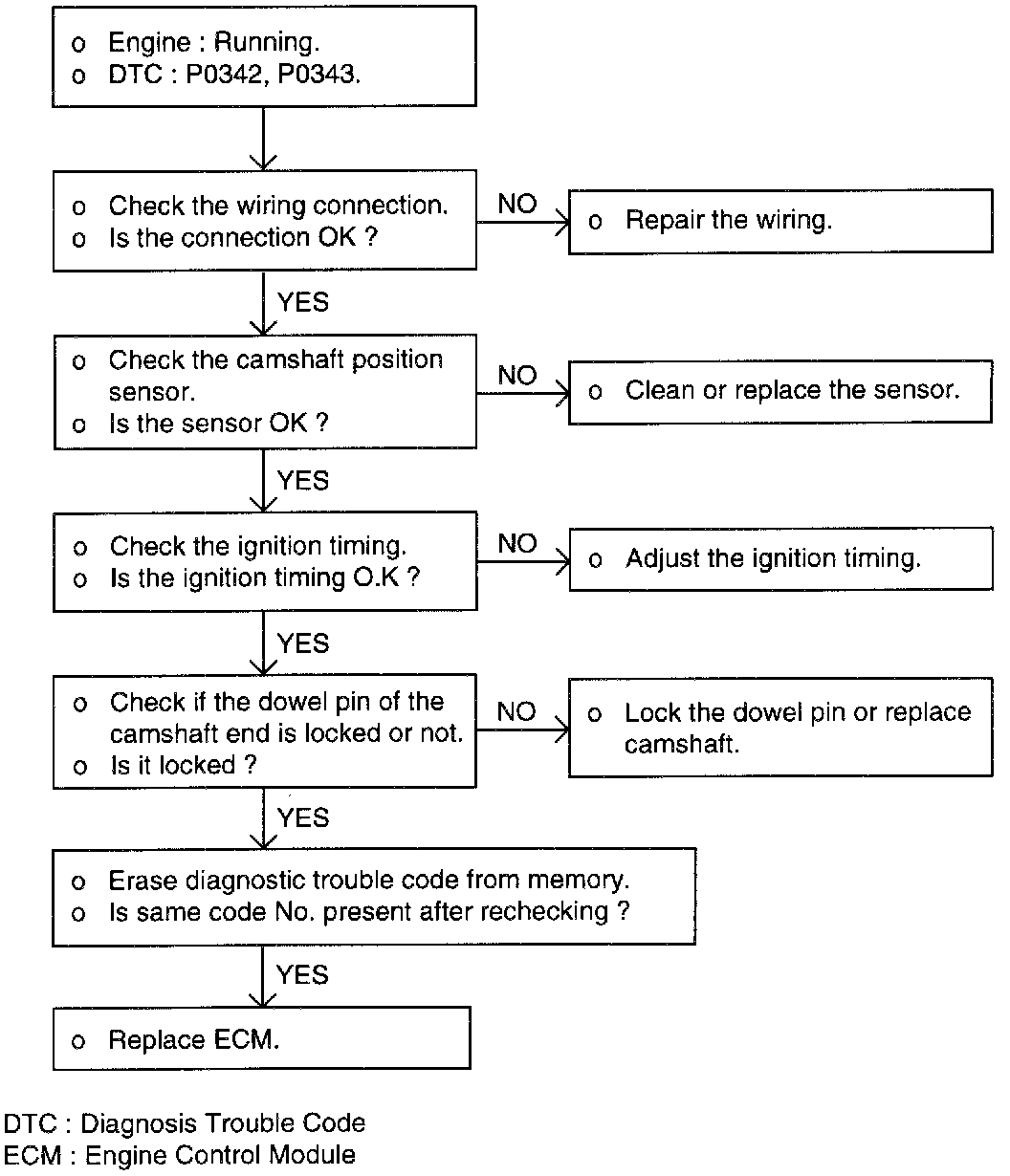

TROUBLESHOOTING PROCEDURES HINT: If the
camshaft position sensor does not operate correctly, correct sequential injection does not occur so the engine may stall or run irregularly at idle or fail to accelerate normally.
USING VOLTMETER
