Windows

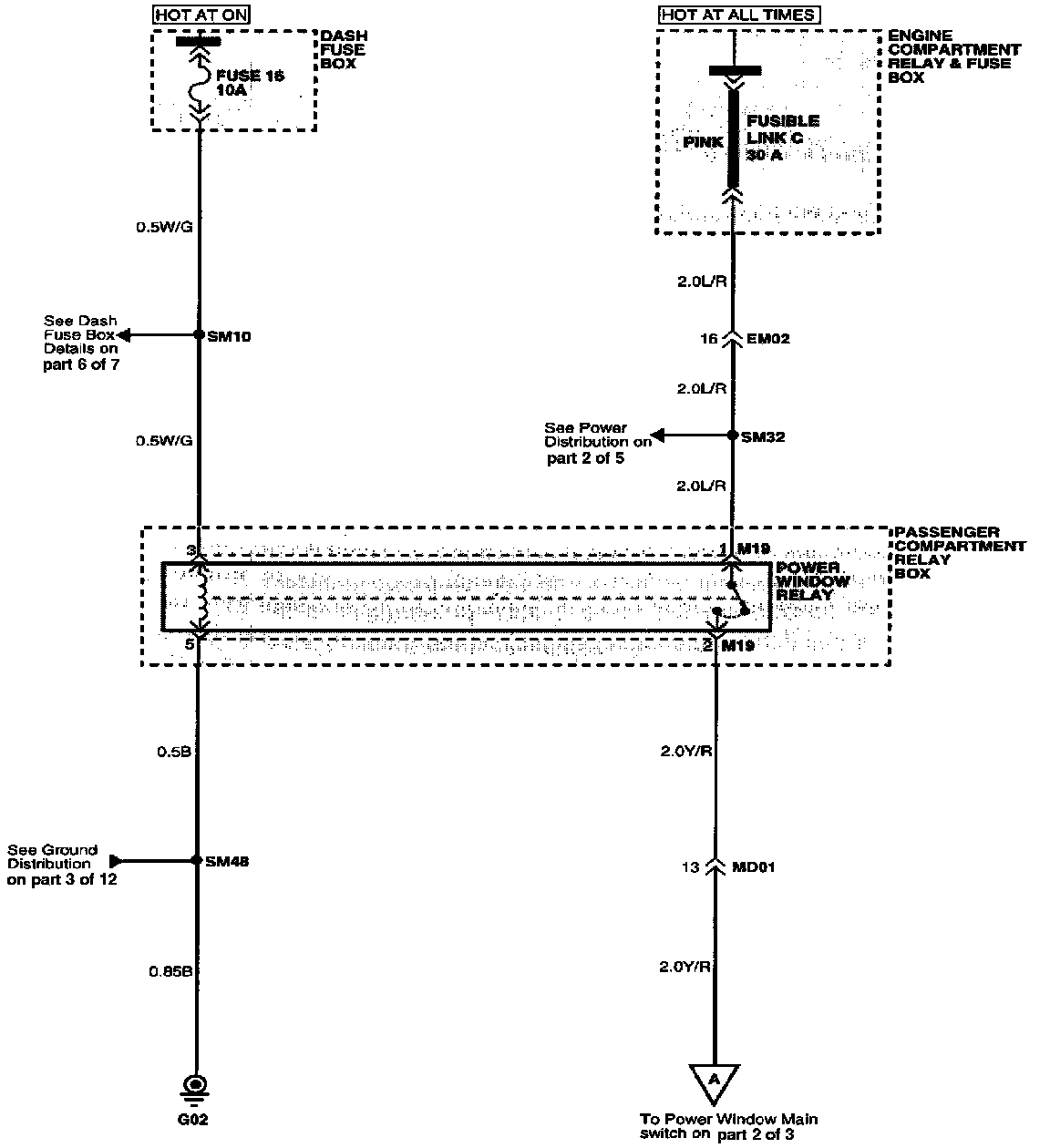

Power Windows (Part 1 Of 3):




Part 1 of 3
Dash Fuse Box
Engine Compartment Relay and Fuse Box
Passenger Compartment Relay Box

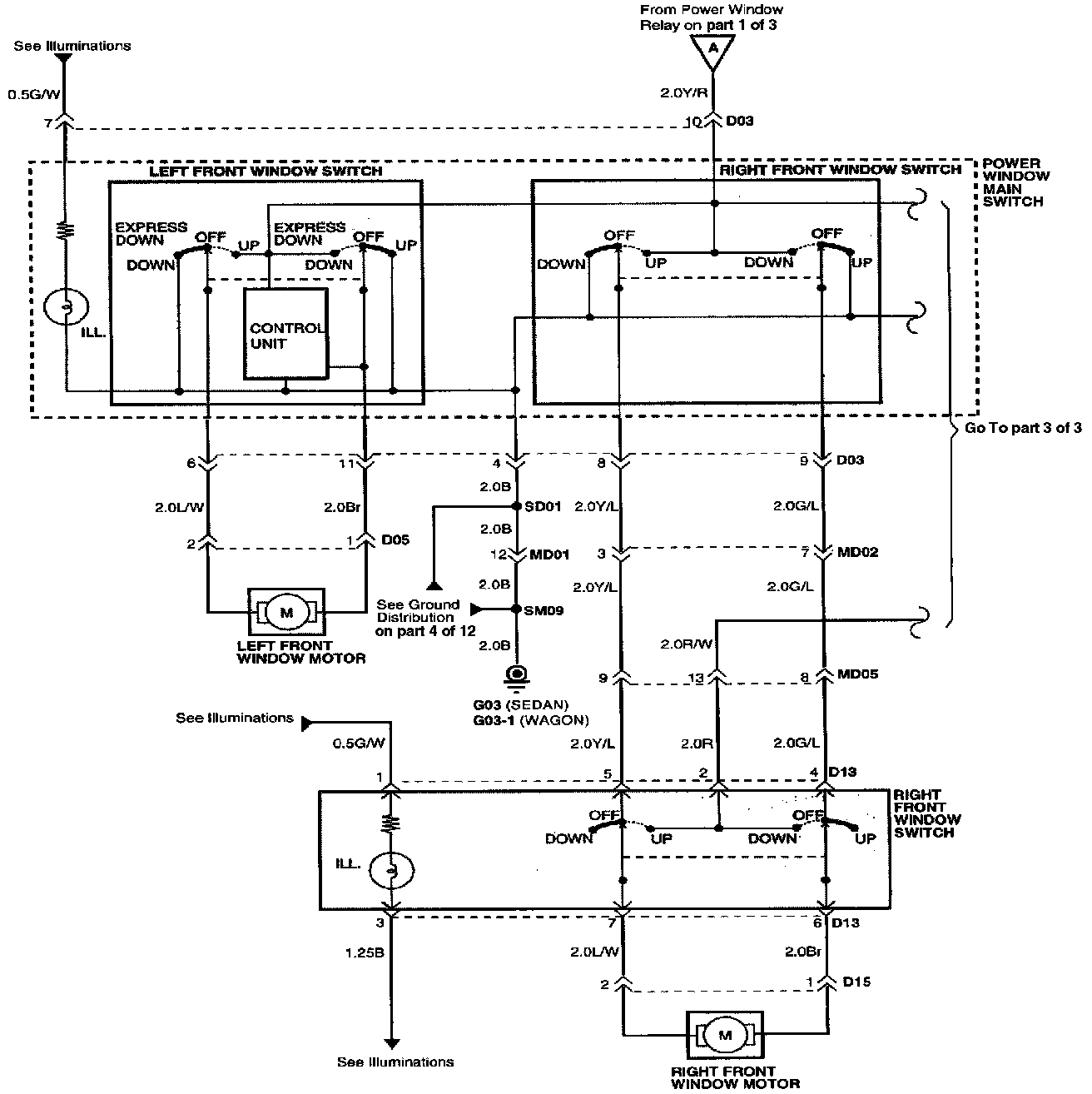

Power Windows (Part 2 Of 3):




Part 2 of 3
Left Front Window Motor
Power Window Main Switch
Right Front Window Motor
Right Front Window Switch

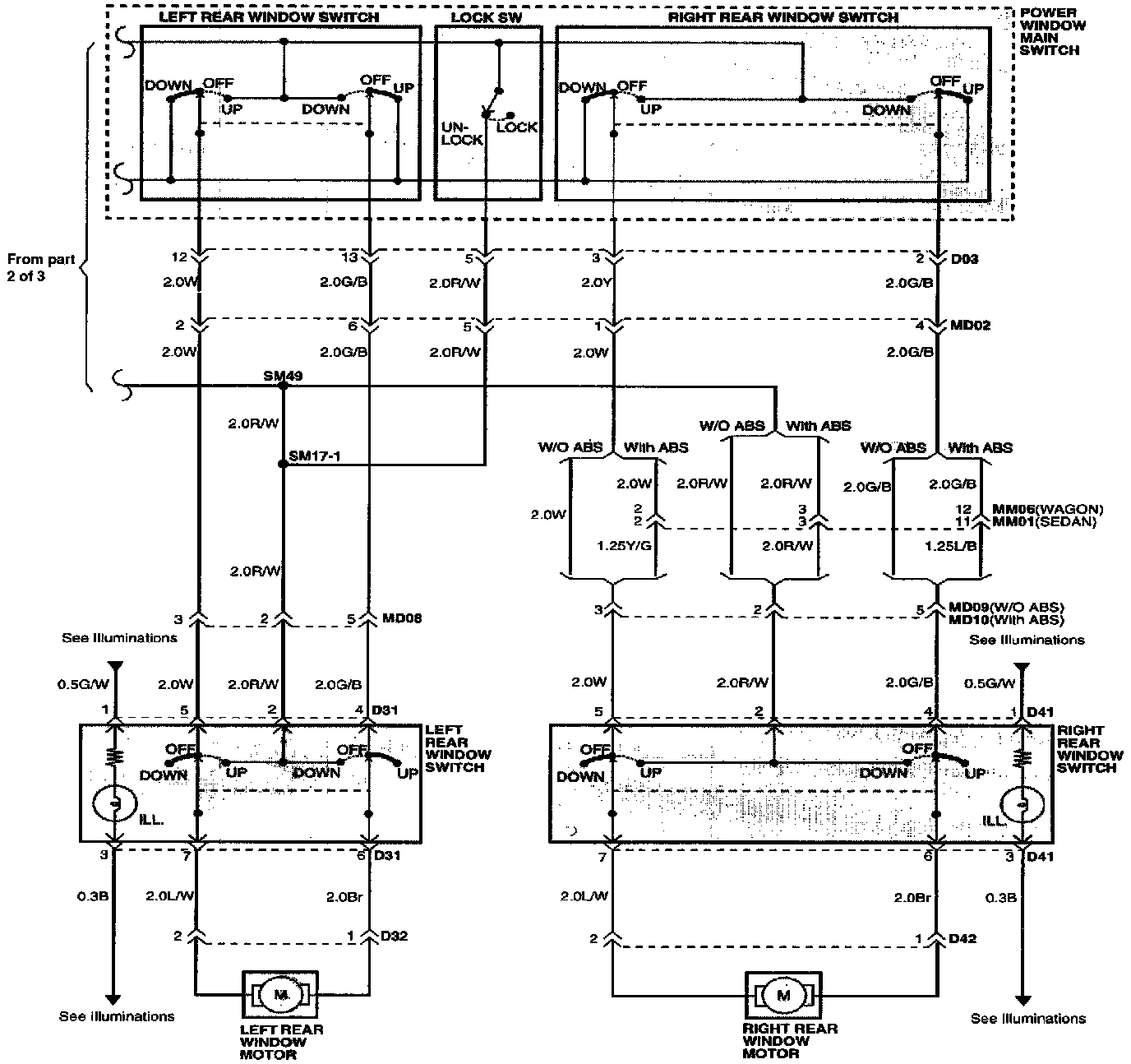

Power Windows (Part 3 Of 3):




Part 3 of 3
Left Rear Window Motor
Left Rear Window Switch
Power Window Main Switch
Right Rear Window Motor
Right Rear Window Switch

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of Power Windows.
