Compressor Clutch Relay: Testing and Inspection
1.
Remove the battery ground cable.
2.

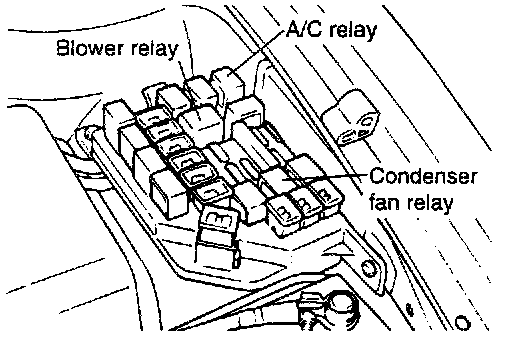

Remove the cover of
[1][2]relay box located in engine compartment.
3.
Remove the relays from
[1][2]relay box.
4.

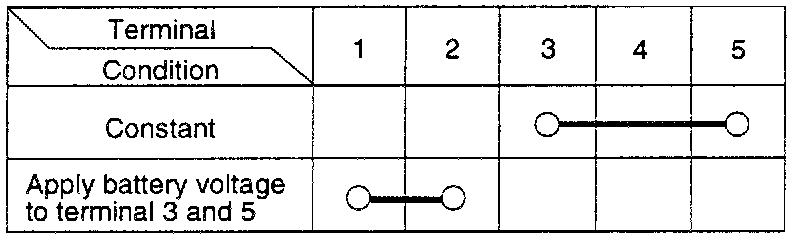

Check for continuity or voltage between the terminals.
AIR CONDITIONING RELAY-check for continuity If continuity is not as specified, replace the relay.
