Condenser HVAC: Service and Repair




COMPONENTS

NOTE: Plug all of the open fittings immediately after removal to keep moisture out of the system.




1. Discharge refrigerant from the air conditioning system. (For detailed removal procedures for No.2 through No.8, refer to the "Removal of the liquid tube (B)".

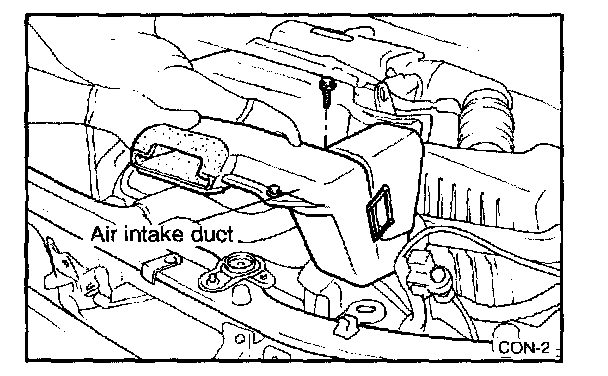

2. Remove the air intake duct assembly.

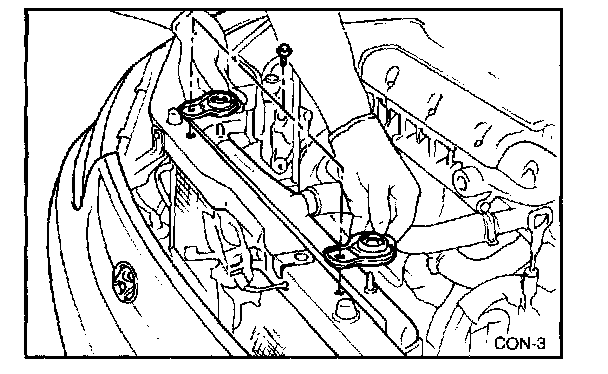

3. Remove the radiator upper mounting clamps,




4. Remove the radiator upper grille.




5. Remove the liquid tube (A).




6. Disconnect the liquid tube (B) and remain it with removed state.
7. Remove the receiver drier.




8. Remove the receiver/drier mounting bracket.




9. Remove the condenser mounting bolts.




10. Remove the condenser assembly.

NOTE: Be careful not to damage the condenser fins.

11. Installation is the reverse order of removal.

NOTE:
1. While installing each of removed fitting, replace O-ring (if exists) and apply specified lubricant.
2. Be careful not to bend or twist refrigerant lines in order to install them easily.
3. After installation, evacuate, charge and test the air conditioning system.
