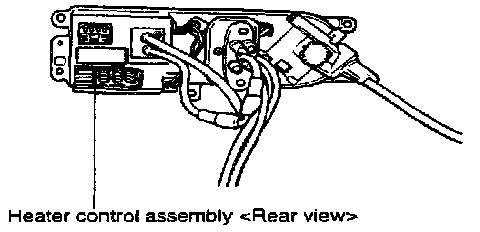

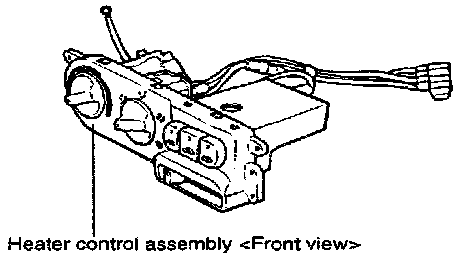

Control Assembly: Description and Operation

The heater assembly is a air blend system and consists of a heater assembly, blower assembly and duct which is connected between the heater case and blower case. The heater case contains the heater core and the temperature blend door. The blower assembly containing the outside/recirculating air door, the blower motor and the lower wheel is connected directly to an opening in the upper cowl. The outside air is drawn into the system from the cowl through the blower inlet into the blower housing, forced through and/or around the heater core, mixed and then discharged through outlets in the discharge air duct to the floor area or through the defroster outlets depending the type of climate control desired. The airflow system is controlled by two kind of control assembles, the vacuum rotary and the manual lever type.
